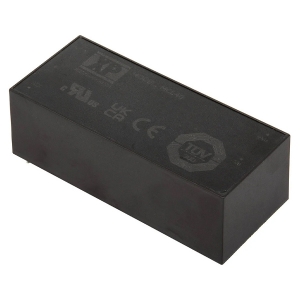

• VCE03 Series

    Features

    • Compact PCB mount SIL package
    • Encapsulated & open frame versions
    • ITE & household appliance approvals
    • Class II operation
    • Input range 85 to 305VAC
    • Single outputs from 3.3 to 48VDC
    • No load input power <0.3W
    • Low cost
    • -25°C to +70°C operating temperature
    • 3 year warranty
    The VCE03 is a series of open frame and encapsulated AC-DC single output power supplies designed for low cost ITE industrial and domestic applications. The series provides two mechanical options including open frame and encapsulated PCB mount. With approvals to world-wide safety standards including ITE and household, compliance with class B for conducted and radiated emissions, these class II isolation parts benefit system designers with easy integration into a wide range of applications.

    Inquiry Info. PDF

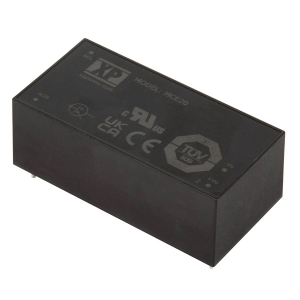

  • VCE10 Series

    Features

    • Compact PCB mount package
    • Encapsulated & open frame versions
    • ITE & household appliance approvals
    • Class II operation
    • Input range 85 to 305VAC
    • Single outputs from 3.3 to 48VDC
    • No load input power <0.3W
    • Low cost
    • -25°C to +70°C operating temperature
    • 3 year warranty
    The VCE10 is a series of open frame and encapsulated AC-DC single output power supplies designed for low cost ITE, industrial and domestic applications. The series provides two mechanical options including open frame and encapsulated PCB mount. With approvals to world-wide safety standards including ITE and Household, compliance with class B for conducted and radiated emissions, these class II isolation parts benefit system designers with easy integration into a wide range of applications.

    Inquiry Info. PDF

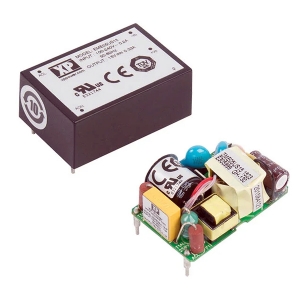

  • VCE05 Series

    Features

    • Compact Size
    • Single Outputs from 3.3 to 48VDC
    • Open Frame & Encapsulated PCB Mount
    • <0.3W No Load Input Power
    • Peak Load Capability
    • No External Components Required
    • Class II
    • Low Cost
    • 3 Year Warranty
    The VCE05 is a series of open frame and encapsulated AC-DC single output power supplies
    designed for low cost ITE and Industrial applications. The series provides two mechanical options
    including open frame and encapsulated PCB mount. With approvals to world-wide safety
    standards, compliance with class B for conducted and radiated emissions and a 130%, 30s peak
    load capability, these class II isolation parts benefit system designers with easy integration into a
    wide range of applications.

    Inquiry Info. PDF

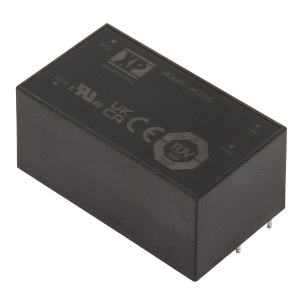

  • VCE20 Series

    Features

    • 85 to 305VAC Input
    • S0ingle Outputs from 3.3 to 48VDC
    • PCB Mount
    • Encapsulated & Open Frame
    • TE & Household Appliance Approvals
    • EN55035 Immunity Standard
    • Class II
    • Low Cost
    • 3 Year Warranty
    The VCE20 is a series of open frame and encapsulated AC-DC single output power supplies designed for low cost ITE, industrial and domestic applications. The series provides two mechanical options including open frame and encapsulated PCB mount. With approvals to world-wide safety standards including ITE and Household, compliance with class B for conducted and radiated emissions, these class II isolation parts benefit system designers with easy integration into a wide range of applications.

    Inquiry Info. PDF

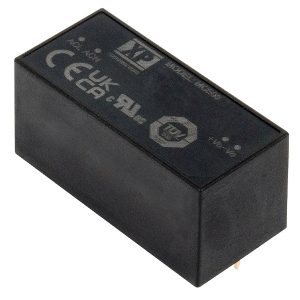

  • VCE40 Series

    Features

    • 85 to 305VAC input
    • Single outputs from 3.3 to 48VDC
    • PCB mount
    • Encapsulated & open frame
    • ITE & household appliance approvals
    • EN55035 immunity standard
    • Class II
    • Low cost
    • 3 year warranty
    The VCE40 is a series of open frame and encapsulated AC-DC single output power supplies designed for low cost ITE, industrial and domestic applications. The series provides two mechanical options including open frame and encapsulated PCB mount. With approvals to world-wide safety standards including ITE and Household, compliance with class B for conducted and radiated emissions, these class II isolation parts benefit system designers with easy integration into a wide range of applications.

    Inquiry Info. PDF

  • VCP15 Series

    Features

    • Low Cost
    • Output Voltages from 5 to 24 V
    • PCB Mounting
    • Open Frame & Encapsulated Versions
    • IT & Medical Approvals
    • Class II Construction
    • No Load Input Power <0.3 W

    Inquiry Info. PDF

  • VCP24 Series

    Features

    • Low Cost
    • Output Voltages from 5 to 24 V
    • PCB Mount
    • Open Frame & Encapsulated Versions
    • IT & Medical Approvals
    • Class II Construction
    • No Load Input Power <0.3 W

    Inquiry Info. PDF

  • ECL05-30 Series

    Features

    • Ultra Compact Size
    • Single, Dual & Triple Outputs
    • Open Frame PCB & Chassis Mount
    • Encapsulated PCB Mount Versions
    • <0.3 W No Load Input Power
    • Peak Load Capability
    • 3 Year Warranty

    Inquiry Info. PDF

  • EML15 Series

    Features

    • Compact Size
    • Medical Approvals
    • Single Outputs from 3.3 to 48 V
    • PCB Mount, Open Frame & Chassis Mount
    • Encapsulated PCB & Chassis Mount
    • Class II
    • Peak Load Capability
    • 3 Year Warranty
    The EML15 is a series of open frame and encapsulated AC-DC single output power supplies
    designed for medical applications. The series provides a number of flexible mechanical options
    including PCB mount, open frame, chassis mount with screw terminals and a DIN Rail option. With
    approvals to world-wide medical safety standards, compliance with class B for both conducted and
    radiated emissions and a 130%, 30s peak load capability, these class II isolation parts benefit
    system designers with easy integration into the latest healthcare products and applications.

    Inquiry Info. PDF

  • EML30 Series

    Features

    • Compact Size
    • Medical Approvals
    • Single Outputs from 3.3 to 48 V
    • PCB Mount, Open Frame & Chassis Mount
    • Encapsulated PCB & Chassis Mount
    • Class II
    • Peak Load Capability
    • 3 Year Warranty
    The EML30 is a series of open frame and encapsulated AC-DC single output power supplies
    designed for medical applications. The series provides a number of flexible mechanical options
    including PCB mount, open frame, chassis mount with screw terminals and a DIN Rail option. With
    approvals to world-wide medical safety standards, compliance with class B for both conducted and
    radiated emissions and a 130%, 30s peak load capability, these class II isolation parts benefit
    system designers with easy integration into the latest healthcare products and applications.

    Inquiry Info. PDF

Total of 12 results
