• Medically Approved Power Supplies AC-DC Converter

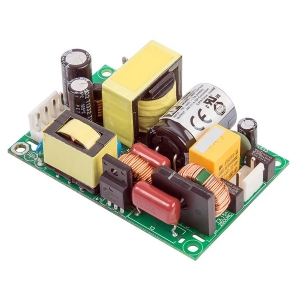

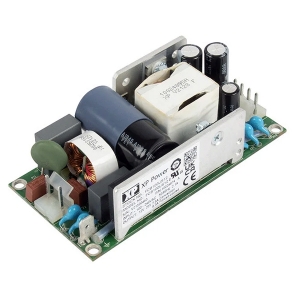

  • FCS40 Series

    Features

    • 40 W Convection Rating
    • 2” by 3” Footprint
    • Low 1.04” Profile
    • High Efficiency
    • Medical, ITE and Household Appliance Approvals
    • Class I & Class II Installations
    • High Power Density
    • Less than 0.3 W No Load Input Power
    • 3 Year Warranty
    The FCS40 series is designed to minimize the no load power consumption and maximize efficiency to facilitate equipment design to meet the latest environmental legislation. Approved for medical and ITE applications in either Class I or Class II installations, this range of single output AC-DC power supplies are packaged in a low profile 1.04” height with a foot print of just 2” by 3”. The FCS40 provides up to 40W convection-cooled over the full 90-264 VAC input range, and operates down to 80 VAC with minimal de-rating. The power supply features two AC line fuses and low leakage currents required by medical applications. The low profile, low noise and safety approvals covering ITE and medical standards allows the versatile FCS40 series to be used in a wide range of applications.

    Inquiry Info. PDF

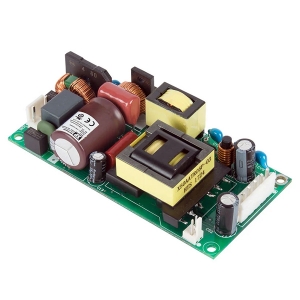

  • FCS60 Series

    Features

    • 60 W Convection Rating
    • 2” by 4” Footprint
    • Low 1.04” Profile
    • High Efficiency
    • Medical, ITE and Household Appliance Approvals
    • Class I & Class II Installations
    • High Power Density
    • Less than 0.3 W No Load Input Power
    • 3 Year Warranty
    The FCS60 series is designed to minimize the no load power consumption and maximize efficiency to facilitate equipment design to meet the latest environmental legislation. Approved for medical and ITE applications in either Class I or Class II installations, this range of single output AC-DC power supplies are packaged in a low profile 1.04” height with a foot print of just 2” by 4”. The FCS60 provides up to 60W convection-cooled and operates down to 80 VAC. The power supply features two AC line fuses and low leakage currents required by medical applications. The low profile, low noise and safety approvals covering ITE and medical standards allows the versatile FCS60 series to be used in a wide range of applications.

    Inquiry Info. PDF

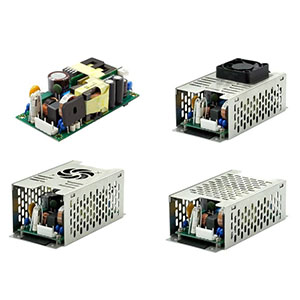

  • GCS150 to 350 Series

    Features

    • Convection/Forced-cooled Ratings
    • Universal 85 - 264 VAC Input
    • IT & Medical Safety Approvals (Class I & II)
    • < 0.5 W Standby Power (150 & 180 Models)
    • -40° C to +70° C Operation
    • Remote On/Off
    • Class B Emissions
    • 3 Year Warranty
    The GCS Series has been designed to minimise the no load power consumption and maximise efficiency in order to facilitate equipment design to the latest environmental legislation. Approved for Class I and Class II applications, this range of single output AC-DC power supplies are packaged in an industry standard 3.0" x 5.0" x 1.42" package and achieves EN55011/32 Level B emissions compliance whilst maintaining very low earth leakage currents, making them suitable for a wide range of 1U and other industrial, IT and medical applications.The series has single output versions from 12 V to 56 VDC, dual-fusing for compliance with
    IEC60601-1 and feature minimal excess heat generation as efficiencies reach 94%. They will deliver up to 350 W of power over an operating
    range of -40 °C and up to +70 °C and are available with a number of cover options.

    Inquiry Info. PDF

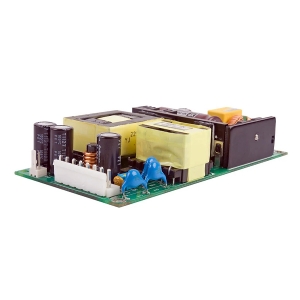

  • GCU500 Series

    Features

    • 250 W Convection & 500 W Forced-cooled Ratings
    • 5 V Standby Output
    • Universal 80 - 264 VAC Input
    • IT & Medical Safety Approvals
    • -40° C to +70° C Operation
    • Power Fail, Remote On/Off & Remote Sense
    • Class B Emissions
    • 3 Year Warranty
    The GCU500 is packaged in a 3.3" x 6.5" x 1.55" package and achieves EN55011/32
    Level B conducted emissions compliance whilst maintaining very low earth leakage
    currents, making it suitable for a wide range of 1U and other industrial, IT and medical
    applications.The series has single output versions from 12 V to 48 VDC, dual-fusing for compliance with
    IEC60601-1 and features minimal waste heat as efficiencies reach 93%. The GCU500 delivers up to 500 W of power over an operating range of
    -40 °C to +70 °C and offers remote on/off control and power fail signal along with 5 V standby and fan supplies.

    Inquiry Info. PDF

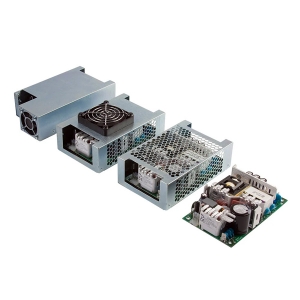

  • GSP750 Series

    Features

    • Low Profile, Compact Size
    • Suitable for 1U Applications
    • 900 W Peak Power Rating for 100 ms
    • Universal 80 - 264 VAC Input (300 VAC for 5 s)
    • IT/Industrial & Medical (2 x MOPP) Safety Approvals
    • 5 V/3 A Standby Output
    • 1.0 W Standby Power
    • Intelligent Fan Speed Control
    • -40° C to +70° C Operation
    • PowerFail, Inhibit, Remote Sense & Current Share
    • 3 Year Warranty
    The GSP750 offers a full 750 W of output power in a very small mechanical footprint while providing peak power to up to 900 W, a 5 V standby output with 3 A current capability and an input standby power draw of <1.0 W when the inhibit is activated. Approved for both IT/Industrial and medical applications the series has output versions from 12 V to 48 V. Cooling fans are intelligently controlled to reduce accoustic noise in the system and the GSP750 provides up to 50 W without forced cooling, allowing the fans to be switched off, providing silent running during periods of lower system loading or system standby conditions.

    Inquiry Info. PDF

  • MHP650 Series

    Features

    • Rugged Construction
    • Medical Safety Approvals
    • Variable Fan Speed for Noise Reduction
    • -20 °C to +70 °C Operation
    • AC OK, Remote On/Off and Active Current Share
    • 5 V Standby
    • 3 Year Warranty

    Inquiry Info. PDF

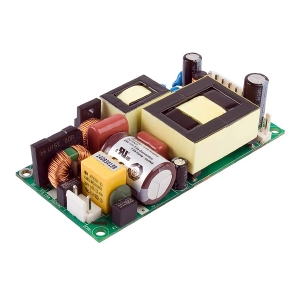

  • PBR500 Series

    Features

    • 450-500W Forced Cooled
    • 350-400W Convection Cooled
    • ITE & Medical (BF) Safety Approvals
    • U-Channel 4” x 7” Package
    • 5V Standby & 12V Fan Supply
    • AC OK, Inhibit & Remote Sense
    • Class B Conducted & Radiated Emissions
    • 3 Year Warranty
    The PBR500 series of AC-DC switching power supplies, in a package of just 4 x 7 x 1.7 inches, deliver 450-500 watts of continuous power with forced air cooling or 350-400 watts with convection cooling. The units are constructed on a U-Channel for mechanical support and heat sinking. A cover and fan assembly can be added during manufacturing. They are designed for both ITE/Industrial and medical applications including those needing BF rated insulation with an operation altitude up to 5000 meters.

    Inquiry Info. PDF

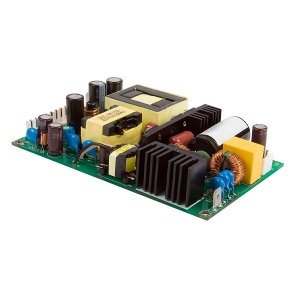

  • PBR650 Series

    Features

    • Medical (BF) Safety Approvals
    • 4” x 8” Package
    • 5V Standby Supply
    • AC OK, Inhibit & Remote Sense
    • Class B Conducted & Radiated Emissions
    • 3 Year Warranty
    The PBR650 series of AC-DC switching power supplies, in a package of just 4 x 8 x 2.58 inches, deliver 600-650 watts of continuous power. They are designed for medical applications including those needing BF rated insulation with an operation altitude of up to 5000m.

    Inquiry Info. PDF

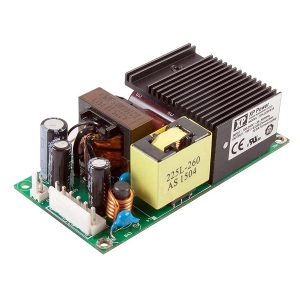

  • UCH600 Series

    Features

    • 600W convection cooled
    • 8.0” x 5.0” x 1.57” U channel
    • Suitable for BF applications
    • ITE & Medical (BF) approvals
    • Class B conducted & radiated emissions
    • Power density 5.97W/in³
    • High efficiency, up to 95%
    • 5V 1.0A standby
    • Remote On/Off
    • -20°C to +70°C operating temperature
    • 3 year warranty
    Approved for medical and ITE applications, this range of convection cooled single output AC/DC power supplies are packaged in an ultra compact foot print of just 5.0” by 8.0”. The UCH600 provides up to 600 W convection-cooled leading to very high power density of 9.5 W/in3. A 12 V/0.6 A fan supply is included in the design to faciliate system cooling, if required, along with 5 V/1 A standby output. The power supply contains two fuses and low leakage currents as required by medical device applications. The low profile and safety approvals covering ITE and medical standards along with conducted emissions to EN55011/32 level B allow the versatile UCH600 series to be used in a vast range of applications.

    Inquiry Info. PDF

  • UCP180 Series

    Features

    • 120W convection cooled -40°C to +70°C operation
    • 180W with 10CFM forced air cooling -20°C to +70°C operation
    • 4.3” x 2.5” footprint
    • Low 1.16” profile U channel construction
    • ITE & Medical (BF, 2 x MOPP) approvals
    • Class B conducted & Class A radiated emissions
    • Input voltage range 85 to 264VAC
    • Output voltages from 12 to 48VDC
    • No load input power <0.5W
    • High efficiency, up to 94%
    • 12V/0.5A fan output
    • -40°C to +70°C operating temperature
    • Full power to +50°C
    • MTBF 300 khrs (MIL-HDBK-217F, +25°C GB)
    • 3 year warranty

    The UCP180 series is designed to minimize the no load power consumption and maximize efficiency to facilitate equipment design to meet the latest environmental legislation. Approved for medical and ITE applications, this range of single output AC/DC power supplies are packaged in an ultra-low profile 1.16” height with a foot print of just 2.5” by 4.3”. The UCP180 provides up to 180 W force-cooled or 120 W convection-cooled leading to very high power densities of 14.2 W/in3 or 9.4 W/in3 respectively. A 12 V, 500 mA fan supply is included in the design. The power supply contains two fuses and low leakage currents as required by medical applications and is safety approved to operate in a 70 °C ambient. The low profile and safety approvals covering ITE and medical standards along with conducted emissions to EN55011/32 level B enable the versatile UCP180 series to be suitable for a vast range of applications.

    Inquiry Info. PDF

Total of 21 results
