• Features

    • 250 W Convection & 500 W Forced-cooled Ratings
    • 5 V Standby Output
    • Universal 80 - 264 VAC Input
    • IT & Medical Safety Approvals
    • -40° C to +70° C Operation
    • Power Fail, Remote On/Off & Remote Sense
    • Class B Emissions
    • 3 Year Warranty

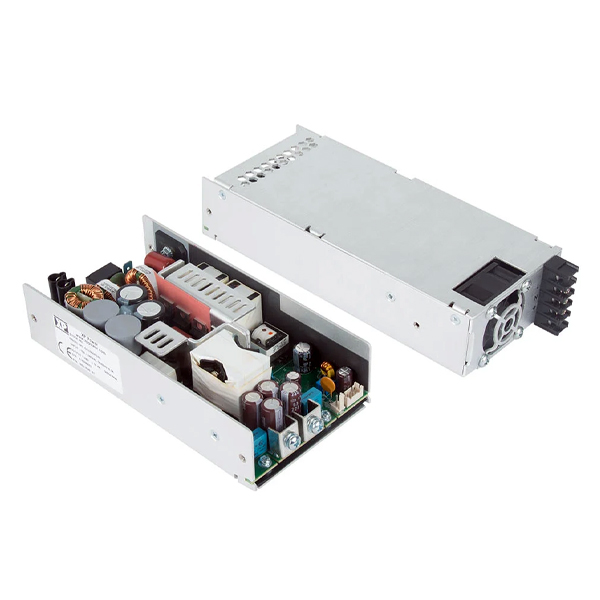

    The GCU500 is packaged in a 3.3" x 6.5" x 1.55" package and achieves EN55011/32
    Level B conducted emissions compliance whilst maintaining very low earth leakage
    currents, making it suitable for a wide range of 1U and other industrial, IT and medical
    applications.

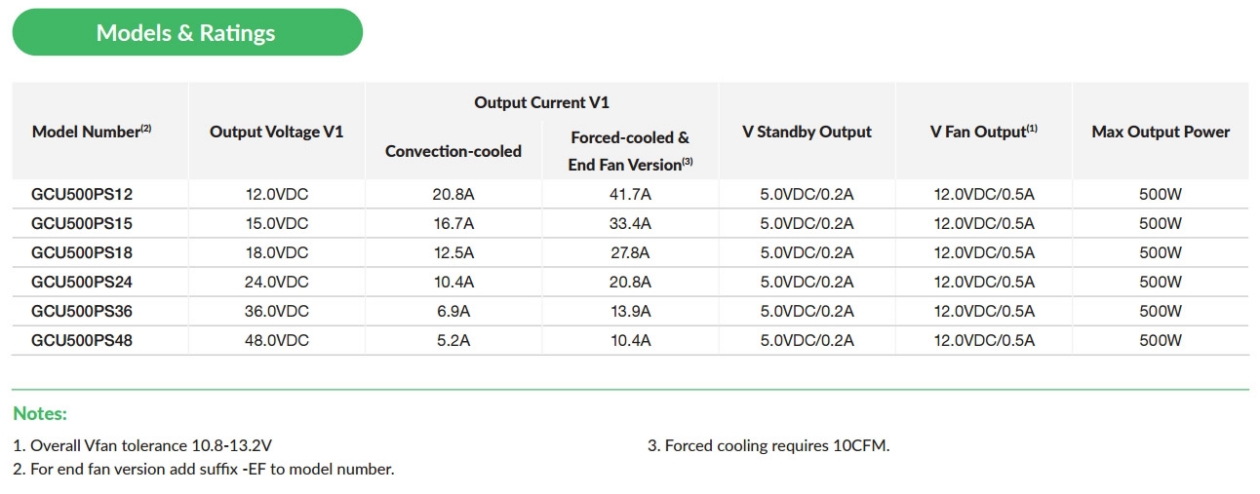

    The series has single output versions from 12 V to 48 VDC, dual-fusing for compliance with
    IEC60601-1 and features minimal waste heat as efficiencies reach 93%. The GCU500 delivers up to 500 W of power over an operating range of
    -40 °C to +70 °C and offers remote on/off control and power fail signal along with 5 V standby and fan supplies.
