• Features

    • 75W convection cooled
    • ITE, industrial and household approvals
    • Integrated connector cover
    • Class B conducted & radiated emissions
    • Input voltage range 85-264VAC
    • 300VAC withstand voltage for 5s
    • Output voltages from 5V to 48VDC
    • Efficiency to 91%
    • Short circuit, overvoltage & overload protection
    • Conformal coating option
    • -30°C to +70°C operating temperature
    • 3 year warranty

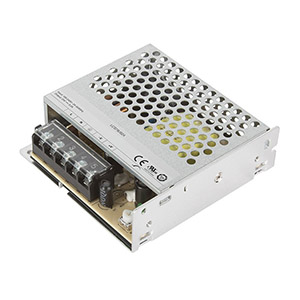

    The LCS series of regulated output convection cooled AC-DC power supplies are designed to provide a cost effective solution for industrial electronics, technology and household applications. Features include output voltage adjustment, a power ‘ON’ LED, low stand-by power consumption, output short circuit protection, over current and over voltage protection. Applications include auxiliary power sources, security installations, lighting control, smart home or office control systems, ticketing and vending applications.
