• Features

    • Compliant with USB battery charging specification 1.2
    • Provides up to 1.5A (CDP mode) or 2.4A (DCP mode) output currect on each port
    • Supports high speed 480 Mbps, full speed 12 Mbps and low speed 1.5 Mbps operation
    • Supports iOS and Android devices
    • Enables CDP/DCP mode switching automatically by manually connecting or disconnecting host computer port
    • If all devices are fully charged in DCP mode the unit would automatically cut of all port’s LED and power
    • Intelligently detects the power current of each port by the sensing meter with firmware and enables the ports LED to illuminate its corresponding colour. Charging: Red; Disconnected or fully charged: Green Sync Mode: Orange
    • The 8 port charging hub can be cascaded with 7 other units giving a total of 8 hubs and 64 ports.
    • Features Over-Voltage, Over-Current Protection and ±15kV (air), ±8kV (contact) ESD protection on eachport
    • Supports 40A (5/50ns) & Peak Pulse Power 250 W (8/20 us) Surge and Transient spikes protection on each port
    • High temperature protection is standard, if the unit’s temperature is higher than set limit it will cut off all output current immediately and all the LEDs of all 8 ports would be flashing
    • Compact aluminium housing measures only 170 x 80 x 30mm
    • Powered by external 120W universal AC input power supply with full safety approvals (supplied with the hub)

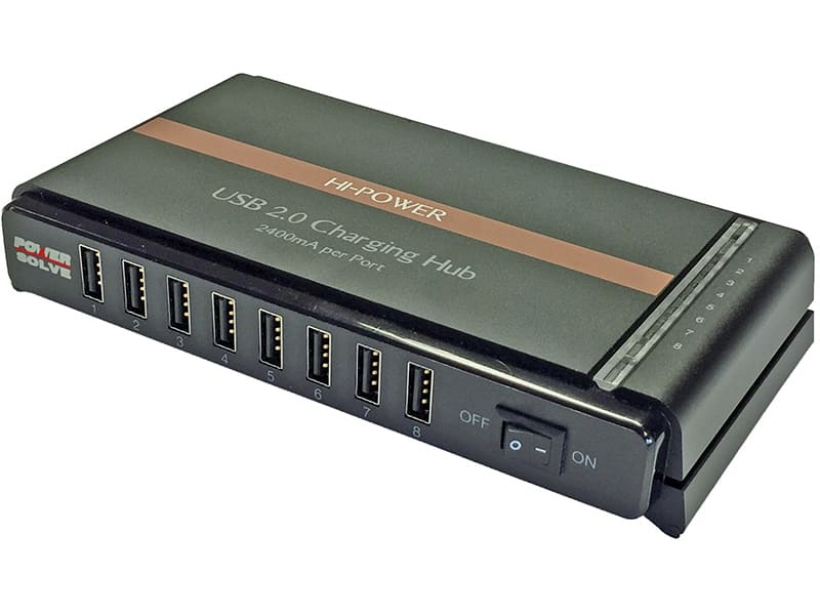

    The 8 port charging hub provides a quick solution for quick charging or sync of up to 8 iPads, iPhones, iPods or other USB devices operating simultaneously. This is the perfect tool to effectively perform CDP/DCP mode switching. Ideal for medium capacity USB stations in house for charging and syncing a number of devices at the same time. Such as school classrooms, business conferences or meetings.
