• Options & Interfaces

  • CANopen Interface

    Features

    • Node address setting selectable
    • 600 V galvanic isolation
    • Read back of power supply status signals
    • Voltage and current programming and monitoring
    • Factory installed
    • 14-bit resolution for voltage and current setting and read back
    • Setting the power supply in Shut Down mode
    • Programming and monitoring accuracy < 0.1 %
    Interface between CANopen Bus System and power supply; CANopen Standard; Up to 1Mbit/s communication, baud rate dip switch selectable; CANopen features include SYNC object, Emergency object, Node guarding, Heartbeat, Expedited and Nonexpedited SDO transfer, Node address range 1-127, Baud rate setting range 10Kbit/s to 1Mbit/s

    Inquiry Info. PDF

  • PROFIBUS Interface

    Features

    • Node address setting selectable
    • 600 V galvanic isolation
    • Read back of power supply status signals
    • Voltage and current programming and monitoring
    • Factory installed
    • 14-bit resolution for voltage and current setting and read back
    • Setting the power supply in Shut Down mode
    • Programming and monitoring accuracy < 0.1 %
    Interface between PROFIBUS DP Bus System and power supply; PROFIBUS DP V0 Standard; Up to 12Mbit/s PROFIBUS DP Communication; PROFIBUS features include Slave in a PROFIBUS-DP network, DP-V0 standard according to IEC 61784 Ed. 1:2002 CPF 3/1, PROFIBUS protocol according to IEC 61158, Slave address range 1-127

    Inquiry Info. PDF

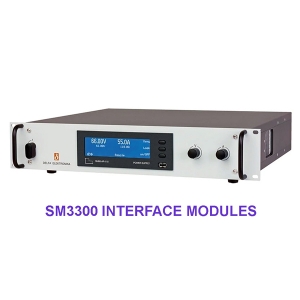

  • SM3300 Interfaces

    Features

    • Plug and play for the SM3300 series power supplies
    • Multiple interfaces possible perpower supply
    • Isolated from the output voltage
    • Working voltage 1000V
    • Floating with respect to earth
    Plug and play interface modules for the SM3300 Programmable Power Supply; Multiple interfaces can be used per power supply; 1000V Isolation from the output voltage; Floating with respect to earth Isolated Analogue Interface: High accuracy ans low drift, 16 bit A/D and D/A conversion, Compatible with other Delta Elektronika 15pin analogue interfaces, Factory calibrated for optimum accuracy Digital I/O Interface: 8 inputs - logic high 2.5-30V, logic low 0V, 8 open drain outputs 0-30V, 200mA max., Programmable via Ethernet or sequences Isolated Contacts Interface: 4 relays with make and break contacts, Additional (floating) interlock with 24V enable system, Programmable via Ethernet Multi-protocol Serial Interface: Multi-protocol RS232, RS485, RS422, USB, Web based configuration, Speeds up to 115.2 kbps

    Inquiry Info. PDF

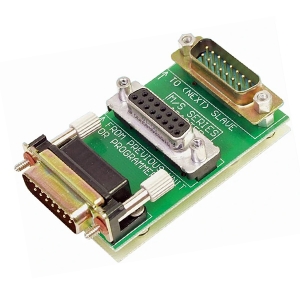

  • Master/Slave Series Adapter

    Features

    • Connecting SM-3000 and ES-Series in master/slave series mode
    • The master power supply can be upper or the lower power supply in the series
    • Easy way of connection power supplies in the master /slave series mode
    • Equal voltage sharing in the series operation
    • Series operation possible up to 600 V
    Connects SM3000 and ES Series power supplies in master/slave series mode; Master power supply can be the upper or lower power supply in the series; Equal voltage sharing; Series operation up to a maximum of 600V

    Inquiry Info. PDF

  • All Devices Supported by USB Charging Nov 20 2013 - 7:39am Plug-Top USB Chargers

    Features

    • Large adjustment for use on both 24 VDC and 48 VDC
    • Contains two window comparator circuits, isolated from each other
    • Each has an isolated alarm contact
    • Monitors the output voltages of two power supplies
    • Between the levels of under and over voltage a green LED lights up
    Under and Over Voltage Alarm unit; Large adjustment for use on both 24V and 48V outputs; Contains 2 window comparator circuits, isolated from each other; Monitors the output voltages from 2 power supplies; Green LED indicates

    Inquiry Info. PDF

Total of 15 results
