Options & Interfaces
-
Power Sink Option for SM6000
Features
- Can absorb 700 W peak power
- Maintains output voltage setting regardless output power is positive or negative (source and sink)
- Ideal solution for supplying electric motors with
- PWM-speed control. These systems often return power to the power supply during a braking action
- Ideal solution for ATE systems requiring fast down programming at no load conditions
- Generation Automotive waveforms (fast)
The Power Sink option permits the power supply to absorb bursts of power fed back to the power supply. An internal module senses the status of the power supply and sinks current across the output terminals, thus maintaining a constant output voltage. The Power Sink option allows a faster response when the power supply is step programmed to a lower voltage at low load conditions. Ideal solution for supplying electric motors with PWM control, ATE systems requiring fast down programming at no load conditions, generating fast Automotive waveforms. -
Power Sink Option for SM3300
Features
- Can absorb up to 300 W peak power
- Maintains output voltage setting regardless output power is positive or negative (source and sink)
- Ideal solution for supplying electric motors with PWM-speed control. These systems often return power to the power supply during a braking action
- Ideal solution for ATE systems requiring fast down programming at no load conditions
- Generation Automotive waveforms (fast)
The Power Sink option permits the power supply to absorb bursts of power fed back to the power supply. An internal module senses the status of the power supply and sinks current across the output terminals, thus maintaining a constant output voltage. The Power Sink option allows a faster response when the power supply is step programmed to a lower voltage at low load conditions. Ideal solution for supplying electric motors with PWM control, ATE systems requiring fast down programming at no load conditions, generating fast Automotive waveforms. -
Power Sink Option for SM3000
Features
- Can absorb 300 W peak power
- Maintains output voltage setting regardless output power is positive or negative (source and sink)
- Ideal solution for supplying electric motors with PWM-speed control. These systems often return power to the power supply during a braking action
- Ideal solution for ATE systems requiring fast down programming at no load conditions
- Generation Automotive waveforms (fast)
The Power Sink option permits the power supply to absorb bursts of power fed back to the power supply. An internal module senses the status of the power supply and sinks current across the output terminals, thus maintaining a constant output voltage. The Power Sink option allows a faster response when the power supply is step programmed to a lower voltage at low load conditions. Ideal solution for supplying electric motors with PWM control, ATE systems requiring fast down programming at no load conditions, generating fast Automotive waveforms. -
Power Sink Option for SM1500
Features
- Can absorb 200 W peak power
- Maintains output voltage setting regardless output power is positive or negative (source and sink)
- Ideal solution for supplying electric motors with PWM-speed control. These systems often return power to the power supply during a braking action
- Ideal solution for ATE systems requiring fast down programming at no load conditions
- Generation Automotive waveforms (fast)
The Power Sink option permits the power supply to absorb bursts of power fed back to the power supply. An internal module senses the status of the power supply and sinks current across the output terminals, thus maintaining a constant output voltage. The Power Sink option allows a faster response when the power supply is step programmed to a lower voltage at low load conditions. Ideal solution for supplying electric motors with PWM control, ATE systems requiring fast down programming at no load conditions, generating fast Automotive waveforms. -
Power Sink Option for SM800
Features
- Can absorb 140 W peak power
- Maintains output voltage setting regardless output power is positive or negative (source and sink)
- Ideal solution for supplying electric motors with PWM-speed control. These systems often return power to the power supply during a braking action
- Ideal solution for ATE systems requiring fast down programming at no load conditions
- Generation Automotive waveforms (fast)
The Power Sink option permits the power supply to absorb bursts of power fed back to the power supply. An internal module senses the status of the power supply and sinks current across the output terminals, thus maintaining a constant output voltage. The Power Sink option allows a faster response when the power supply is step programmed to a lower voltage at low load conditions. Ideal solution for supplying electric motors with PWM control, ATE systems requiring fast down programming at no load conditions, generating fast Automotive waveforms. -
High Speed Programming Option
Features
- Programming speed about 10 - 20 times faster ( compared with standard versions)
- Low output capacitance
High Speed Programming options are optimized for maximum programming speed, approximately 10-20 times faster than the standard models. This is achieved using smaller output capacitors which results in an increase in output voltage ripple but this is generally not a problem in applications requiring high speed. -
ISO AMP Card
Features
- Selectable 0-5 V and 0-10 V signal levels
- Isolated programming and monitoring of U, I and status signals
- Prevents problems with earth loops and CM-voltages
- Factory installed
Analogue Isolation Amplifier (4 Channel); Selectable 0-5V & 0-10V signal levels; Isolated Programming & Monitoring of U, I & Status signals; Prevents problems with earth loops & common mode voltages; Factory installed -

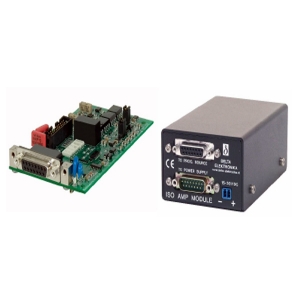

External ISO AMP
Features
- Selectable 0-5 V and 0-10 V signal levels
- Isolated programming and monitoring of U, I and status signals
- Prevents problems with earth loops and CM-voltages
- Isolated logic inputs and outputs
- Pin compatible with D15 connector on Delta elektronika power supplies
External Module; Analogue Isolation Amplifier (4 channel); Selectable 0-5V and 0-10V signal levels; Isolated programming and mitoring of U, I and status signals; Prevents problems with earth loops and common mode voltages; Isolated logic input and outputs; Pin compatible with D15 connector on Delta Elektronika power supplies -

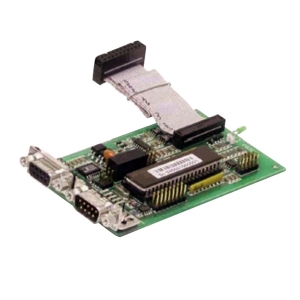

RS232 & IEEE488 Interface
Features
- IEEE488 or RS232 interfaces designed to be used with analog programmable power supplies
- Voltage and current of the power supply can be programmable and monitored
- Readback of status signals
- Set the power supply in Remote/Local, Remote ShutDown ect.
- Two 14 bit output channels for programming, two 12 - 16 bit input channels for monitoring
- Up to 15 PSC's on one IEEE488 or RS232 BUS to control multiple supplies
- Software calibration, no trimmers
RS232 or IEEE488 interfaces designed to be used with analogue programmable power supplies; Output Voltage and Current of the power supply can be programmed and monitored; Readback of Status Signals; Two 14 bit output channels for programming; Two 12-16 bit input channels for moitoring; Up to 15 PSC's on one RS232 or IEEE488 BUS to control multiple supplies; Software calibration - no trimmers -

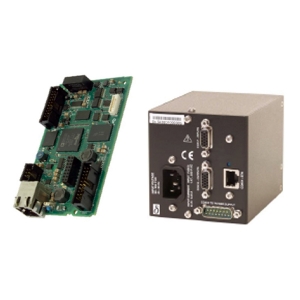

Ethernet Interface
Features
- 16-bit accuracy programming and monitoring · Integrated Sequencer
- Digital user in and outputs ( isolated) · Software Calibration
- Change power supply modes (Remote/Local ,ect) · SCPI commands
- Read-back of status signal · LabVIEW driver and Visual Basic example included
Interface between Ethernet IP Network and power supply; Built-in card or external module; Makes use of existing networks; IP-address configurable by user; Successor to the IEEE488 Bus; Features include 16-bit accuracy programming and monitoring, Integrated sequencer, Digital user inputs and outputs (isolated), Software calibration, Change power supply modes (remote/local etc), SCPI commands, Read-back of status signal, LabVIEW driver and Visual Basic example included
Total of 15 results
