• DC-DC Converters PCB Mounting 0.25W to 60W

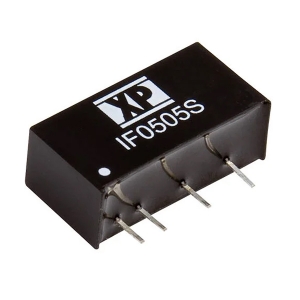

  • IF

    Features

    • Regulated single output
    • ±10% input range
    • Single outputs 3.3 to 15VDC
    • SIP7 or DIP14 package
    • 1.0kVDC isolation, 3.0kVDC optional
    • Low ripple & noise
    • -40°C to +85°C operating temperature
    • 3 year warranty
    IF Series 0.25 Watt, SIP7 or DIP14 plastic package, 5V, 12V or 24V DC ±10% Input, Single regulated DC output versions from 3.3V to 15V. 1.0kVDC isolation, 3.0kVDC optional

    Inquiry Info. PDF

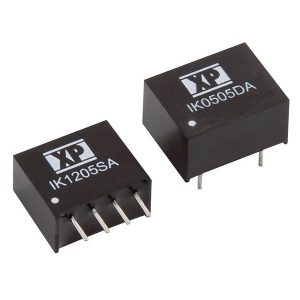

  • IK Series

    Features

    • Unregulated single output See mechanical details
    • ±10% input range
    • Single outputs 3.3 to 24VDC
    • SIP4 or DIP8 package
    • 1.0kVDC isolation, 3.0kVDC option
    • -40°C to +85°C operating temperature
    • 3 year warranty
    IK Series, 0.25 Watt, SIP4 or DIP8 plastic package, 5V, 12V or 24V DC ±10% Input, Single unregulated DC output versions from 3.3V to 24V. 1.0kVDC isolation, 3.0kVDC optional

    Inquiry Info. PDF

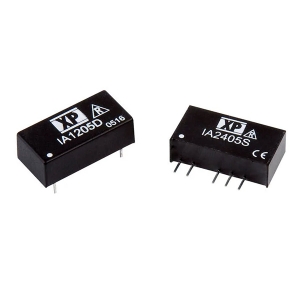

  • IA Series

    Features

    • Unregulated dual outputs
    • ±10% input range
    • Dual outputs ±3.3 to ±24VDC
    • SIP7 or DIP14 packages
    • Industry standard pinout
    • 1.0kVDC isolation
    • -40°C to +85°C operating temperature
    • 3 year warranty
    IA Series, 1 Watt, SIP7 or DIP14 plastic package, 3.3V, 5V, 12V or 24V DC ±10% input, Dual unregulated DC output versions from 5V to 24V. 1.0kVDC isolation

    Inquiry Info. PDF

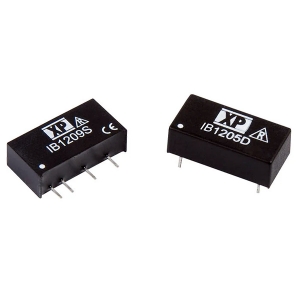

  • IB

    Features

    • Unregulated single output
    • ±10% input range
    • Single outputs 3.3 to 24VDC
    • SIP7 or DIP14 package
    • Industry standard pinout
    • 1.0kVDC isolation
    • -40 °C to +85°C operating temperature
    • 3 year warranty
    IB Series, 1 Watt, SIP7 or DIP14 plastic package, 5V, 12V or 24V DC ±10% Input, Single unregulated DC output versions from 3.3V to 24V. 1.0kVDC isolation

    Inquiry Info. PDF

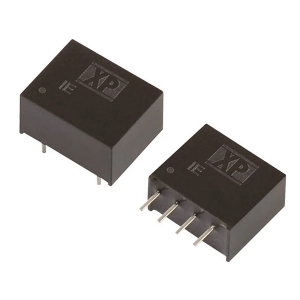

  • IE Series

    Features

    • Unregulated single output
    • ±10% input range
    • Single outputs 3.3 to 24VDC
    • SIP4 or DIP8 package
    • 1.0kVDC isolation, 3.0kVDC option
    • -40°C to +85°C operating temperature
    • 3 year warranty
    IE Series, 1 Watt, SIP4 or DIP8 plastic package, 3.3V, 5V, 12V, 15V or 24V DC ±10% Input, Single unregulated DC output versions from 3.3V to 24V. 1.0kVDC isolation, 3.0kVDC optional

    Inquiry Info. PDF

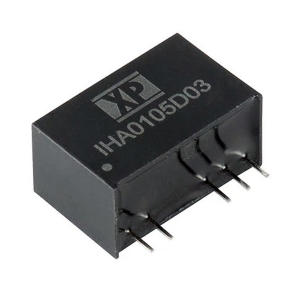

  • IHA01

    Features

    • Unregulated single & dual outputs
    • ±10% input range
    • Single outputs 3.3 to 15VDC
    • Dual outputs ±3.3 to ±15VDC
    • SIP7 package
    • High 6.0kVDC isolation
    • 250VAC working voltage
    • Bipolar outputs for MOSFET and IGBT drives
    • -40°C to +85°C operating temperature
    • Full load to +85°C
    • 3 year warranty
    IHA01 Series, 1 Watt SIP7 plastic package, 5V, 9V, 12V, 15V or 24V DC ±10% Input, Single and dual unregulated DC output versions from 3.3V to 15V. High 6.0kVDC isolation.

    Inquiry Info. PDF

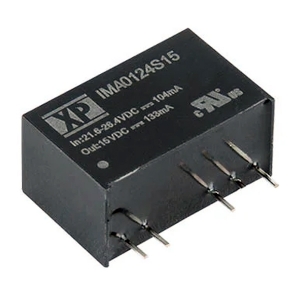

  • IMA01

    Features

    • World Wide Medical Approvals
    • Single and Dual Outputs
    • SIP7 Package
    • -40 °C to +75 °C Operation
    • Full Load at 75 °C Ambient
    • Designed to meet 1 x MOPP at 300 VAC
    • 2 A Patient Leakage Current
    • MTBF 2.5 MHrs
    • 3 Year Warranty
    IMA01 Series, 1 Watt SIP7 plastic package, 5V,12V,15V or 24V DC ±10% Input, Single and dual unregulated DC output versions from 3.3V to 15V. 4kVAC isolation

    Inquiry Info. PDF

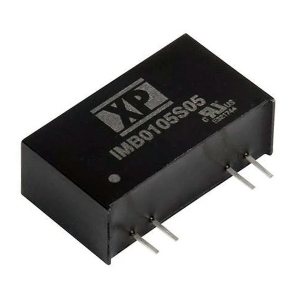

  • IMB01

    Features

    • Single unregulated output
    • ±10% input range
    • SIP7 package
    • World wide medical approvals
    • 4kVAC isolation reinforced
    • 2 x MOPP at 300VAC
    • 2μA patient leakage current
    • -40°C to +105°C operation
    • Full load at +85°C ambient
    • MTBF 4.3MHrs
    • 3 year warranty
    IMB01 Series, 1 Watt SIP7 plastic package, 5V,12V or 24V DC ±10% Input, Single unregulated 5V, 12V or 15V DC output versions. 4kVAC isolation

    Inquiry Info. PDF

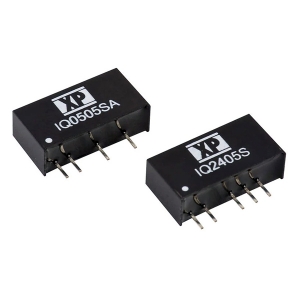

  • IQ Series

    Features

    • Semi-regulated single & dual outputs
    • ±10% input range
    • Single outputs 5.0 to 15VDC
    • SIP7 package
    • 1.0kVDC isolation, 3.0kVDC option
    • -40°C to +85°C operating temperature
    • 3 year warranty
    IQ Series, 1 Watt SIP7 plastic package, 5V, 12V, 15V, 24V or 48V DC ±10% Input, Single unregulated 5V, 9V, 12V or 15V DC output versions. 1.0kVDC isolation, 3.0kVDC optional.

    Inquiry Info. PDF

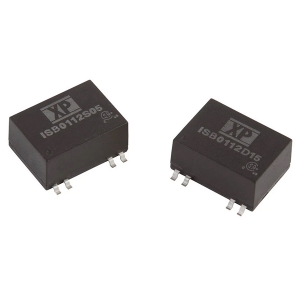

  • ISB01

    Features

    • Regulated Single & Dual Output
    • 2:1 Input Range
    • Compact SMD Package
    • 1500 VDC Isolation
    • Operating Temperature -40 °C to +95 °C
    • Remote On/Off
    • Tape & Reel Package Available
    • Optional Water Washable Versions
    • 3 Year Warranty
    ISB01 Series, 1 Watt SMD14 plastic package, 2:1 5V, 12V, 24V or 48V DC Input, Single & dual regulated 5V to 15V DC output versions. 1.5kVDC isolation. Remote On/Off

    Inquiry Info. PDF

Total of 123 results
