• Inrush Current Limiters

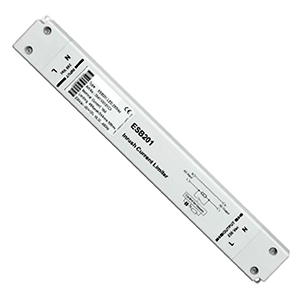

  • ESB201 Series

    Features

    • Peak- / R.M.S. current limiter
    • 90-130Vac / 184-265Vac, 16A continuous
    • Flat 35mm housing IP40
    • Springtype terminals 0,5-6mm² / 21-10AWG
    • Integrated bypass relay
    • Capacitive load 6000uF and 10.000uF
    • Intergrated temperature protection
    • IP40 UL94V-0 ABS-PA765 housing
    Inrush Current Limiter, Inrush Current Protection, active For LED Power Supplies and Electronic Ballast for the Lighting 115Vac/230Vac 16A, 16 ⅓ Hz – 440Hz, -20°C...+45(55)°C

    Inquiry Info. PDF

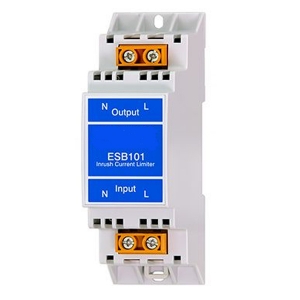

  • ESB101 Series Inrush Current Limiter

    Features

    • Peak- / R.M.S. current limiter
    • 90-130Vac / 184-265Vac, 16A continuous
    • DIN TS35mm DIN-Rail
    • Wall mount (universal housing)
    • Springtype terminals 0,5-6mm² / 21-10AWG
    • Integrated bypass relay
    • Capacitive load 1.500uF bis 10.000uF
    • Intergrated temperature protection
    • IP20 UL94V-0 housing DIN43880 for DIN/VDE0603 cutout box
    Inrush Current Limiter; 230VAC/16A Continuous Current Rating; 16A, 23A or 33A Peak Current Limiting; Inrush Current Limitation Time 300/500ms; Integrated Thermal Fuse; Integrated Bypass Relay

    Inquiry Info. PDF

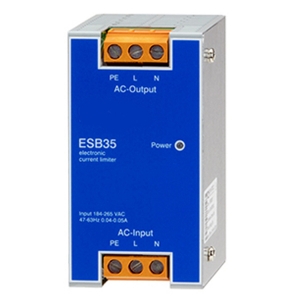

  • ESB00351 Series Inrush Current Limiter

    Features

    • Input 230Vac, 30A cont. current
    • Load capacity 10.000uF
    • DIN Rail TS35mm
    • Screw terminals 0,5...16mm²/AWG22-6
    • Integrated power supply
    • Integrated bypass-relay
    • Low voltage detection
    • Maintenance free
    • IP20 metal housing
    • Power LED
    Inrush Current Limiter; 115/230VAC/30A Continuous Rating; 35A Peak Current Limiting; Inrush Current Limitation Time 150ms; Integrated Bypass Relay

    Inquiry Info. PDF

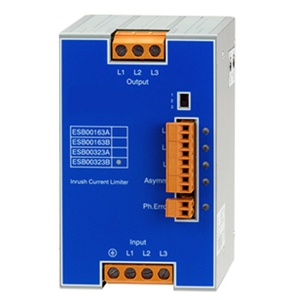

  • ESB00163 16A ESB00323 32A

    Features

    • Peak- / RMS Value Limiter
    • Integrated Phase Control Circuit
    • 200/400/500Vac 3PH 16A/32A nominal Voltage
    • DIN TS35mm Rail
    • Federzugklemmen 0,5...16mm²
    • Integrated Bypass-Relay
    • Capacitive Load 2.000uF
    • Built-In Temperature Control Circuit
    • IP20 Housing
    Inrush Current Limiter, Inrush Protector, 3-phase 200/400/500Vac For inductive & capacitive loads, 16A/32A -40°C...+70°C

    Inquiry Info. PDF

  • PSESB Series

    Features

    • Inductive & Capacitive Loads
    • Isolating Transformers
    • Automation Systems & Machinery
    • Switching Power Supplies (operated in parallel)
    • LED Lighting Systems
    The PSESB Series is a range of inrush current limiters designed to protect against unintended fuse or circuit breaker activation caused by peak currents. The benefits can result in reduced cable cross section and the use of smaller and faster circuit breakers. These are not simple NTC devices and feature current control circuits with integrated bypass relays.

    Inquiry Info. PDF

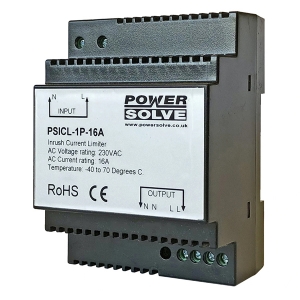

  • PSICL Series

    Features

    • Inductive & Capacitive Loads
    • Isolating Transformers
    • Automation Systems & Machinery
    • Switching Power Supplies (operated in parallel)
    • LED Lighting Systems
    The PSICL Series is a range of inrush current limiters designed to protect against unintended fuse or circuit breaker activation caused by peak currents. The benefits can result in reduced cable cross section and the use of smaller and faster circuit breakers. These are not simple NTC devices and feature current control circuits with integrated bypass relays.

    Inquiry Info. PDF

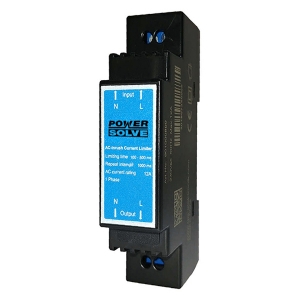

  • PSNCL Series

    Features

    • 12 A & 16 A versions available
    • DIN-Rail Mounting
    • Screw Terminals
    • Integrated Bypass Relays, no simple NTC-Solution
    • Limiting Peak current: 45 A for 100 - 500 ms

    Inquiry Info. PDF

Total of 7 results
