• Medically Approved DC-DC Converters from 1W to 20W

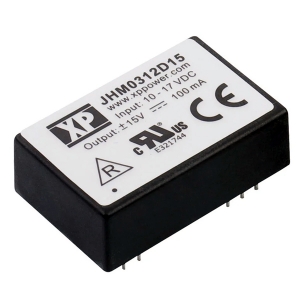

  • JHM03

    Features

    • Regulated single & dual outputs
    • 1.5:1 input range
    • Single outputs 5.0 to 15VDC
    • Dual outputs ±12 & ±15VDC
    • DIP24 package
    • International medical safety approvals
    • 3.0kVAC reinforced isolation
    • 2μA patient leakage current
    • EN55011 Class A with no external components
    • -20°C to +100°C operating temperature
    • Full power to +60°C
    • 3 year warranty
    JHM03 Series 3 Watts. DIP24 plastic package. 10-17V or 20-30V DC Input. Single & dual 5V to 15V regulated output versions. 3kVAC reinforced isolation Worldwide medical safety approvals.

    Inquiry Info. PDF

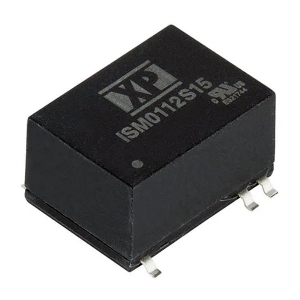

  • ISM01 Series

    Features

    • International medical safety approvals
    • Single & dual unregulated outputs
    • Compact SMD package
    • 4kV VAC isolation reinforced
    • 2 x MOPP at 250 VAC
    • 2 μA patient leakage current
    • Operating temperature -40 °C to +105 °C
    • Full load to 85°C convection
    • Tape & reel package available
    • Optional water washable versions
    • 3 year warranty
    ISM01 Series 1 Watt. SMD 14 pin plastic package. 5V, 12V or 24V DC Input. Single & Dual unregulated outputs from 5V to 15V DC. 4kVAC reinforced isolation. IEC60601-1 compliance. 2 x MOPP at 250VAC

    Inquiry Info. PDF

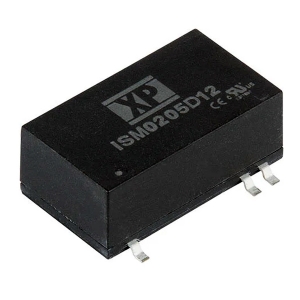

  • ISM02 Series

    Features

    • International medical safety approvals
    • Single & dual unregulated outputs
    • Compact SMD package
    • 4kV VAC reinforced isolation
    • 1 x MOPP at 300 VAC
    • 2 μA patient leakage current
    • Operating temperature -25 °C to +105 °C
    • Full load to 60°C convection
    • Tape & reel package available
    • 3 year warranty
    ISM02 Series 2 Watts. SMD 16 pin plastic package. 5V, 12V or 24V DC Input. Single & Dual unregulated outputs from 5V to 15V DC. 4kVAC reinforced isolation. IEC60601-1 compliance. 1 x MOPP at 300VAC

    Inquiry Info. PDF

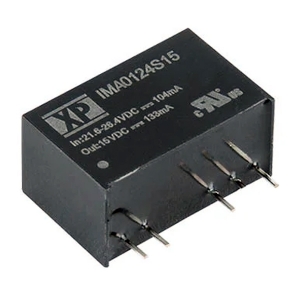

  • IMA01

    Features

    • World Wide Medical Approvals
    • Single and Dual Outputs
    • SIP7 Package
    • -40 °C to +75 °C Operation
    • Full Load at 75 °C Ambient
    • Designed to meet 1 x MOPP at 300 VAC
    • 2 A Patient Leakage Current
    • MTBF 2.5 MHrs
    • 3 Year Warranty
    IMA01 Series 1 Watt. SIP7 plastic package. 5V, 12V, 15V or 24V DC Input. Single & dual 3.3V to 15V unregulated output versions. 4kVAC reinforced isolation. IEC60601-1 compliance. 1 X MOPP at 300VAC.

    Inquiry Info. PDF

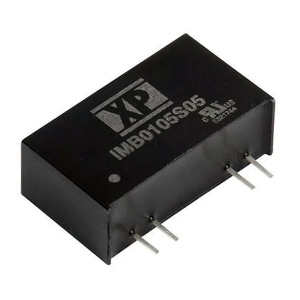

  • IMB01

    Features

    • Single unregulated output
    • ±10% input range
    • SIP7 package
    • World wide medical approvals
    • 4kVAC isolation reinforced
    • 2 x MOPP at 300VAC
    • 2μA patient leakage current
    • -40°C to +105°C operation
    • Full load at +85°C ambient
    IMB01 Series 1 Watt. SIP7 plastic package. 5V, 12V, or 24V DC Input. Single 5V to 15V unregulated output versions. 4kVAC reinforced isolation. IEC60601-1 compliance. 2 x MOPP at 300VAC

    Inquiry Info. PDF

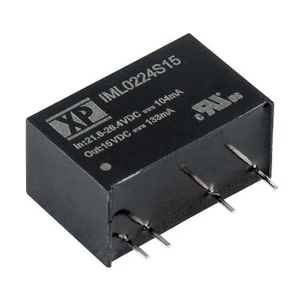

  • IML02

    Features

    • World Wide Medical Approvals
    • Single and Dual Outputs
    • SIP7 Package
    • -40 °C to +85 °C Operation
    • Full Load at 85 °C Ambient
    • 4000 VAC Isolation, 1 x MOPP
    • 2 μA Patient Leakage Current
    • MTBF 2.5 MHrs
    • 3 Year Warranty
    IML02 Series 2 Watts. SIP7 plastic package. 5V, 12V, 15V or 24V DC Input. Single & dual 3.3V to 15V unregulated output versions. 4kVAC reinforced isolation. Worldwide medical safety approvals.

    Inquiry Info. PDF

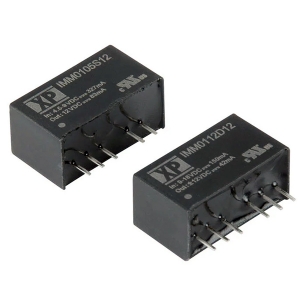

  • IMM01

    Features

    • World Wide Medical Approvals
    • Single and Dual Outputs
    • 2 µA Patient Leakage Current
    • SIP7 Package
    • -20 °C to +100 °C Operation
    • Full Load at 60 °C Ambient
    • 1500 VAC Isolation, 1 MOPP
    • MTBF 1 MHrs
    • 3 Year Warranty
    IMM01 Series 1 Watt. SIP7 plastic package. 2:1 5V or 12V DC Input. Single & dual 3.3V to 15V regulated output versions. 4kVAC reinforced isolation. Worldwide medical safety approvals.

    Inquiry Info. PDF

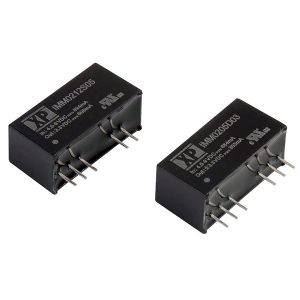

  • IMM02

    Features

    • World Wide Medical Approvals
    • Single and Dual Outputs
    • SIP8 Package
    • -20 °C to +100 °C Operation
    • Full Load at 60 °C Ambient
    • 1500 VAC Isolation
    • 1 x MOPP at 250VAC
    • MTBF 1 MHrs
    • 3 Year Warranty
    IMM02 Series 2 Watts. SIP8 plastic package. 2:1 5V or 12V DC Input. Single & dual 3.3V to 15V regulated output versions. 4kVAC reinforced isolation. Worldwide medical safety approvals.

    Inquiry Info. PDF

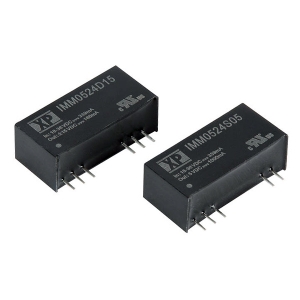

  • IMM05 Series

    Features

    • Regulated Single & Dual Outputs from 3.3 VDC to ±15 VDC
    • World Wide Medical Certification
    • 2:1 Input Range
    • Ultra Compact SIP9 Package
    • 1500 VAC Isolation
    • 1 x MOPP at 250VAC
    • Remote On/Off
    • -20 °C to +100 °C Operation
    • Full Load to +60 °C
    • 3 Year Warranty
    IMM05 Series 5 Watts. SIP9 plastic package. 2:1 5V or 12V DC Input. Single & dual 3.3V to 15V regulated output versions. 4kVAC reinforced isolation. Worldwide medical safety approvals.

    Inquiry Info. PDF

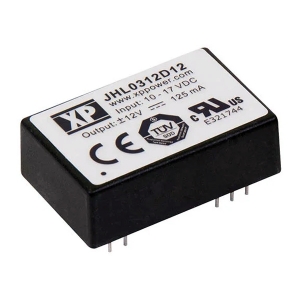

  • JHL03

    Features

    • International Medical Approvals
    • 4000 VAC Reinforced Insulation
    • Meets IEC60601-1, 3rd Edition
    • 2 MOPP Isolation at 250 VAC
    • 2 μA Patient Leakage Current
    • DIP24 Package
    • EN55011 Level A With No External Components
    • 3 Year Warranty
    JHL03 Series 3 Watts. DIP24 plastic package. 10-17V or 20-30V DC Input. Single & dual 5V to 15V regulated output versions. 4kVAC reinforced isolation. Worldwide medical safety approvals.

    Inquiry Info. PDF

Total of 21 results
