• USB Charging & Sync Hubs

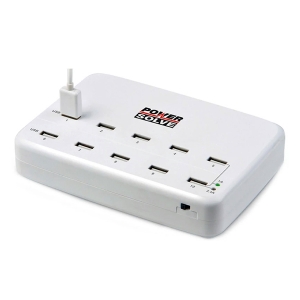

  • PLV60-USB

    Features

    • Universal 90-264VAC Input
    • IEC320 C8 2 pin AC Input Connector (UK power cord included)
    • Outputs switchable from 10 x 5V 1A or 5 x 5V 2.4A
    • Will charge most devices powered by standard
    • USB 5VDC chargers
    • EMC to EN55022’B’, CISPR22 ‘B’ & FCC ‘B’
    • Full International Safety Approvals & CE marked
    • Compact Desk Top Enclosure
    • Meets ROHS requirements
    10 Port USB charger will charge most devices powered from a standard USB 5VDC charger; Outputs are switchable between 10 x 5V/1A or 5 x 5V/2.4A; Universal 90-264VAC Input; Full international safety approvals & CE marked; Compact desk top enclosure

    Inquiry Info. PDF

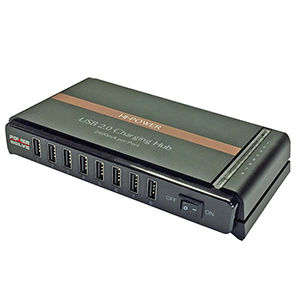

  • 8 Port USB Hub

    Features

    • Compliant with USB battery charging specification 1.2
    • Provides up to 1.5A (CDP mode) or 2.4A (DCP mode) output currect on each port
    • Supports high speed 480 Mbps, full speed 12 Mbps and low speed 1.5 Mbps operation
    • Supports iOS and Android devices
    • Enables CDP/DCP mode switching automatically by manually connecting or disconnecting host computer port
    • If all devices are fully charged in DCP mode the unit would automatically cut of all port’s LED and power
    • Intelligently detects the power current of each port by the sensing meter with firmware and enables the ports LED to illuminate its corresponding colour. Charging: Red; Disconnected or fully charged: Green Sync Mode: Orange
    • The 8 port charging hub can be cascaded with 7 other units giving a total of 8 hubs and 64 ports.
    • Features Over-Voltage, Over-Current Protection and ±15kV (air), ±8kV (contact) ESD protection on eachport
    • Supports 40A (5/50ns) & Peak Pulse Power 250 W (8/20 us) Surge and Transient spikes protection on each port
    • High temperature protection is standard, if the unit’s temperature is higher than set limit it will cut off all output current immediately and all the LEDs of all 8 ports would be flashing
    • Compact aluminium housing measures only 170 x 80 x 30mm
    • Powered by external 120W universal AC input power supply with full safety approvals (supplied with the hub)
    The 8 port charging hub provides a quick solution for quick charging or sync of up to 8 iPads, iPhones, iPods or other USB devices operating simultaneously. This is the perfect tool to effectively perform CDP/DCP mode switching. Ideal for medium capacity USB stations in house for charging and syncing a number of devices at the same time. Such as school classrooms, business conferences or meetings.

    Inquiry Info. PDF

  • 10-20 Port USB Hub

    Features

    • Compliant with USB battery charging specification 1.2
    • Provides up to 1.5A (CDP mode) or 2.4A (DCP mode) output currect on each port
    • Supports high speed 480 Mbps, full speed 12 Mbps and low speed 1.5 Mbps operation
    • Supports iOS and Android devices
    • Enables CDP/DCP mode switching automatically by manually connecting or disconnecting host computer port
    • If all devices are fully charged in DCP mode the unit would automatically cut of all port’s LED and power
    • Intelligently detects the power current of each port by the sensing meter with firmware and enables the ports LED to illuminate its corresponding colour. Charging: Red; Disconnected or fully charged: Green Sync Mode: Orange
    • These hubs can be cascaded with another unit of the same type to double the number of ports
    • Features Over-Voltage, Over-Current Protection and ±15kV (air), ±8kV (contact) ESD protection on each port
    • Supports 40A (5/50ns) & Peak Pulse Power 250 W (8/20 us) Surge and Transient spikes protection on each port
    • High temperature protection is standard, if the unit’s temperature is higher than set limit it will cut off all output current immediately and all the LEDs of all ports would be flashing
    • Compact aluminium housing measures only 268 x 102 x 40mm
    • Powered by external universal AC input power supply with full safety approvals (supplied with the hub)

    The 10 & 20 port charging hub provides a quick solution for quick charging or sync of up to 10 or 20 iPads, iPhones, iPods or other USB devices operating simultaneously. This is the perfect tool to effectively perform CDP/DCP mode switching. Ideal for medium capacity USB stations in house for charging and syncing a number of devices at the same time. Such as school classrooms, business conferences or meetings.

    Inquiry Info. PDF

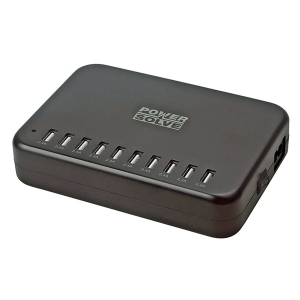

  • PLV120 USB

    Features

    • Universal 90-264VAC Input
    • IEC320 C8 2 pin AC Input Connector (UK power cord included)
    • Outputs ports, 10 x 5V 2.4A
    • Will charge any device powered by standard USB charging technology, with smart charging IC
    • EMC to EN55022’B’, CISPR22 ‘B’ & FCC ‘B’
    • Full International Safety Approvals & CE marked
    • Compact Desk Top Enclosure with On/Off switch
    • Meets ROHS requirements
    The PLV120-USB is a new smart 120 Watt AC-DC USB charger with 10x 5V 2.4A output charging ports. This product is ideal to charge a variety of products, including mobile phones, tablet PC’s, digital cameras or any other electronic device that uses USB charging technology. It is housed in a smart robust, desktop mounting, plastic enclosure and comes complete with UK mains lead. Each output port can deliver up to 2.4A independently. The charger conforms to the normal EMC and EMI standards and as well as CE marking, carries full international safety certification. So you can be sure you are in safe hands with the PLV120-USB

    Inquiry Info. PDF

  • PSUSB 15 Port USB Hub

    Features

    • Compliant with USB Battery Charging Spec 1.2
    • Can provide up to 1.5A at Sync (CDP mode) or 2.4A at Charge (DCP mode) on each output port.
    • Supports either iOS or Android devices.
    • Enables Sync/Charge mode switching when manually connecting or disconnecting to host computer.
    • Intelligently detects the output current of each port by the sensing meter with firmware, and enables the port’s LED to illuminate its corresponding color. (Charging in progress: red; Disconnected or Fully charged: green)
    • Features Over-Current Protection and ±15kV (air), ±8kV (contact) ESD protection on each port.
    • Provides Auto Scan monitoring: default setting: scans one port every 30 seconds. Audio Jacks for link connection.
    • Supports 40A (5/50ns) & Peak Pulse Power 250 W (8/20 us) Surge and Transient spikes protection on each port.
    • Enables Green Energy function automatically shutdown when all the charging is finished at Charge mode.
    • For over-temperature protection, if the unit’s overheats, it would cut off all the output current immediately and meantime, and all LEDs of the 15 ports would be blinking green.
    • Cooling fans are temperature controlled and are on or off as necessary.
    The 15 port USB2.0 hub provides a quick solution for quick charging or sync of up to 15 iPads, iPhones, iPods or other USB devices operating simultaneously. This is the perfect tool to effectively perform Sync/Charge mode switching. Ideal for medium capacity USB stations in house for charging and syncing a number of devices at the same time. Such as school classrooms, business conferences or meetings, etc.

    Inquiry Info. PDF

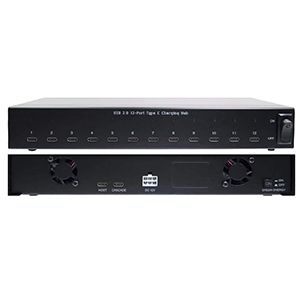

  • PSUSB2012TC Type C Hub

    Features

    • Supports Downstream Facing Port (DFP).
    • Compliant with USB Spec. 2.0 / USB Type C Spec 1.2 & USB Battery Charging Spec 1.2
    • Enables to provide up to 5V 3A output current on each port; Supports iOS, Android devices.
    • Extends up to optimum 48 USB Type C devices by connecting cascade port with another 3 units.
    • Enables Sync/Charge mode switching upon manually connecting or disconnecting host port.
    • Enables Green Energy function (ECO Mode) automatically shutdown the hub when all devices are fully charged at Charge mode.
    • Supports Over-Current Protection & Short Circuit Protection on each port.
    • For the Over Temperature Protection, if the unit’s high temperature is over the setting, it would cut off all the output current immediately. At the meantime, the whole 12 ports LED would be green blinking.
    • Supports ±15kV (air), ±8kV (contact) ESD protection on each port. Supports 40A (5/50ns) & Peak Pulse Power 250 W (8/20 us) Surge and Transient spikes protection on each port.
    • The rear fans spec: SUNON Vapo DC Fan; Life Expectancy: 60,000 hours
    • Enables to start/cut off the fans automatically according to the temperature’s setup. If the board’s temperature is higher than the setting, it would start the fans automatically. On the contrary, if the board’s temperature is lower from the setting, it would turn off the fans automatically as well.
    The 12-Port USB 2.0 Type C Hi -Power Hi-Power Charing Hub is a solution for quick charging or sync up to 12 USB Type C devices. This is a perfect tool to effectively save energy and cool down the unit unit’s heat. Also is ideal for large capacity USB station in-house that enables charging and syncing at a time; automatically recharging once the devices connected have consumed their power with remaining 90% (approximately) after fully charged. Places such as school’ s classroom , businesses conference or meeting in organizations.

    Inquiry Info. PDF

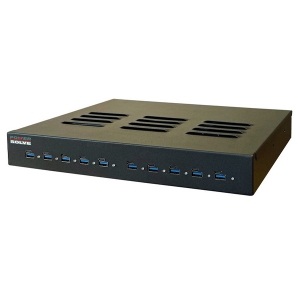

  • 20 Port USB Hub

    Features

    • Charges and syncs up to 20 devices for PSUSB-20CH
    • Charge current 1.1A for 20 port hub
    • Supports high speed 480 Mbps, full speed 12 Mbps and low speed 1.5 Mbps operation
    • Compatible with all USB compliant devices
    • 20 USB 2.0 downstream ports
    • Over current detection and protection and surge and ESD protection
    • 2 x 20 port devices can be connected in cascade to give up to an optimum of 40 USB ports
    • Note
      1. Supports optimum of 26 A-Z storage devices in Windows System
      2. Supports optimum of 30 iOS devices by Apple Configurator provided by Apple in Mac System
      3. With the USB 3.0 interface, the maximum cascading level may differ according to the endpoint buffer capacity of specific USB 3.0 host controllers. Should the device be unidentifiable please switch to the USB 2.0 interface instead.
    The 20 port USB charging & sync hub offers the perfect solution to charge and sync several tablet PC’s or other USB devices simultaneously. Also ideal for automated duplication tasks such as USB memory sticks etc, where data can be transferred to multiple devices at the same time. Ideal for use in schools, business or any application where multiple charging and or data transfer is required.

    Inquiry Info. PDF

Total of 7 results
