Medically Approved Power Supplies AC-DC Converter

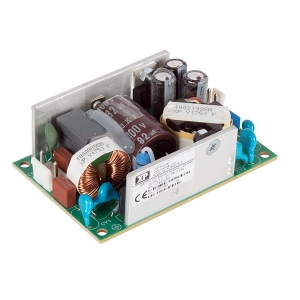

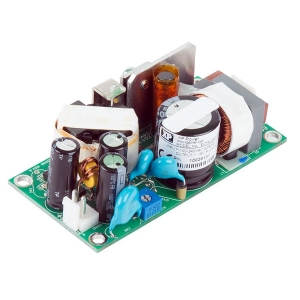

ECP130 Series

Features

100 W Convection/130 W Forced-cooled Ratings
2” by 3” Footprint
Low 1.1” Profile
High Efficiency, up to 95%
Medical and ITE Approvals
High Power Density
Less than 0.5 W No Load Input Power
3 Year Warranty

The ECP130 series is designed to minimize the no load power consumption and maximize efficiency to facilitate equipment design to meet the latest environmental legislation. Approved for medical and ITE applications, this range of single output AC-DC power supplies are packaged in a low profile 1.1” height with a foot print of just 2” by 3”. The ECP130 provides up to 130 W force-cooled or | 100 W convection-cooled leading to very high power densities of 19.7 W/in3 or 15.1 W/in3 respectively. The power supply contains two fuses and low leakage currents as required by medical applications and is safety approved to operate in a 70 °C ambient. The low profile and safety approvals covering ITE and medical standards along with conducted emissions to EN55011/32 level B allow the versatile ECP130 series to be used in a vast range of applications.

Inquiry Info. PDF

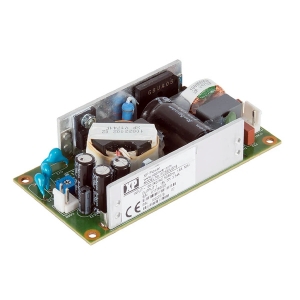

ECP180 Series

Features

Low 1” Profile
High Power Density
2.0” by 4.0” Footprint
120W Convection-cooled Rating
180W Force Cooled Rating
Medical & ITE Approvals
Class I and Class II Applications
High Efficiency, up to 94%
Less than 0.5W No Load Input Power
Built-In Fan Supply
Low Earth Leakage Current
5000m Operating Altitude

The ECP180 series has been designed to minimise no load power consumption and maximise efficiency facilitating equipment design to meet the latest environmental legislation and minimising power loss and heating within equipment enclosures. Approved for medical and ITE applications, this range of single output AC/DC power supplies are packaged in an ultra-low profile 1” height with a foot print of just 2.0” by 4.0”. The ECP180 series is suitable for for us in both class I and class II applications. The ECP180 provides up to 180W force-cooled or 120W convection-cooled leading to very high power densities of 22W/in3 or 15W/in3 respectively. A 12V, 500mA fan supply is included in the design. The power supply contains two fuses and low leakage currents as required by medical applications and is safety approved to operate in a 70 °C ambient. The low profile and safety approvals covering ITE and medical standards for both class I and class II applications along with conducted emissions meeting EN55011/32 level B allow the versatile ECP180 series to be used in a vast range of applications.

Inquiry Info. PDF

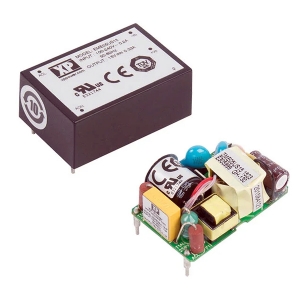

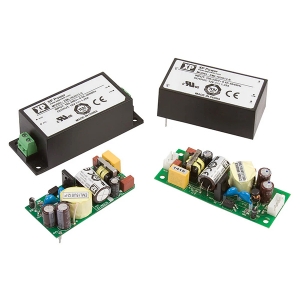

EML15 Series

Features

Compact Size
Medical Approvals
Single Outputs from 3.3 to 48 V
PCB Mount, Open Frame & Chassis Mount
Encapsulated PCB & Chassis Mount
Class II
Peak Load Capability
3 Year Warranty

The EML15 is a series of open frame and encapsulated AC-DC single output power supplies designed for medical applications. The series provides a number of flexible mechanical options including PCB mount, open frame, chassis mount with screw terminals and a DIN Rail option. With approvals to world-wide medical safety standards, compliance with class B for both conducted and radiated emissions and a 130%, 30s peak load capability, these class II isolation parts benefit system designers with easy integration into the latest healthcare products and applications.

Inquiry Info. PDF

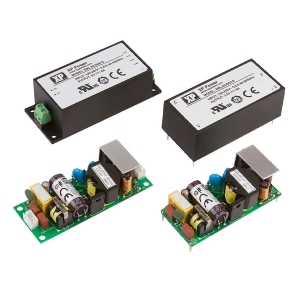

EML30 Series

Features

Compact Size
Medical Approvals
Single Outputs from 3.3 to 48 V
PCB Mount, Open Frame & Chassis Mount
Encapsulated PCB & Chassis Mount
Class II
Peak Load Capability
3 Year Warranty

The EML30 is a series of open frame and encapsulated AC-DC single output power supplies designed for medical applications. The series provides a number of flexible mechanical options including PCB mount, open frame, chassis mount with screw terminals and a DIN Rail option. With approvals to world-wide medical safety standards, compliance with class B for both conducted and radiated emissions and a 130%, 30s peak load capability, these class II isolation parts benefit system designers with easy integration into the latest healthcare products and applications.

Inquiry Info. PDF

EPL225 Series

Features

150 W Convection/ 225WForced-cooled Ratings
2”by 4”Footprint
Low 1.26”Profile
12V Fan Output
High Efficiency, upto95%
ITE & Medical Approvals
High Power Density
Less than0.5 W NoLoad Input Power
ClassI and II Operation
3 Year Warranty

The EPL225 series maximises efficiency across the load range and minimises no load power consumption minimising heat dissipation, reducing running costs and enabling compliance with the latest environmental goals and legislation. Fully approved for ITE and Industrial applications the EPL225 provides up to 150W when convection cooled and up to 225 W when force cooled at just 10 CFM. A 12 V 0.5 A fan supply is included to support force cooled applications. The small footprint, low profile, low noise and comprehensive safety agency approvals allow this versatile product to be used in a wide range of ITE and industrial applications with either Class I or Class II earth arrangements.

Inquiry Info. PDF

FCS40 Series

Features

40 W Convection Rating
2” by 3” Footprint
Low 1.04” Profile
High Efficiency
Medical, ITE and Household Appliance Approvals
Class I & Class II Installations
High Power Density
Less than 0.3 W No Load Input Power
3 Year Warranty

The FCS40 series is designed to minimize the no load power consumption and maximize efficiency to facilitate equipment design to meet the latest environmental legislation. Approved for medical and ITE applications in either Class I or Class II installations, this range of single output AC-DC power supplies are packaged in a low profile 1.04” height with a foot print of just 2” by 3”. The FCS40 provides up to 40W convection-cooled over the full 90-264 VAC input range, and operates down to 80 VAC with minimal de-rating. The power supply features two AC line fuses and low leakage currents required by medical applications. The low profile, low noise and safety approvals covering ITE and medical standards allows the versatile FCS40 series to be used in a wide range of applications.

Inquiry Info. PDF

FCS60 Series

Features

60 W Convection Rating
2” by 4” Footprint
Low 1.04” Profile
High Efficiency
Medical, ITE and Household Appliance Approvals
Class I & Class II Installations
High Power Density
Less than 0.3 W No Load Input Power
3 Year Warranty

The FCS60 series is designed to minimize the no load power consumption and maximize efficiency to facilitate equipment design to meet the latest environmental legislation. Approved for medical and ITE applications in either Class I or Class II installations, this range of single output AC-DC power supplies are packaged in a low profile 1.04” height with a foot print of just 2” by 4”. The FCS60 provides up to 60W convection-cooled and operates down to 80 VAC. The power supply features two AC line fuses and low leakage currents required by medical applications. The low profile, low noise and safety approvals covering ITE and medical standards allows the versatile FCS60 series to be used in a wide range of applications.

Inquiry Info. PDF

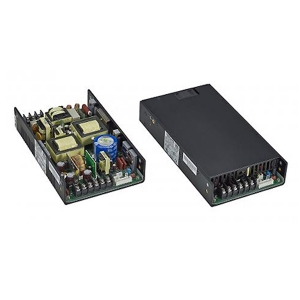

GCU500 Series

Features

250 W Convection & 500 W Forced-cooled Ratings
5 V Standby Output
Universal 80 - 264 VAC Input
IT & Medical Safety Approvals
-40° C to +70° C Operation
Power Fail, Remote On/Off & Remote Sense
Class B Emissions
3 Year Warranty

The GCU500 is packaged in a 3.3" x 6.5" x 1.55" package and achieves EN55011/32
Level B conducted emissions compliance whilst maintaining very low earth leakage
currents, making it suitable for a wide range of 1U and other industrial, IT and medical
applications.The series has single output versions from 12 V to 48 VDC, dual-fusing for compliance with
IEC60601-1 and features minimal waste heat as efficiencies reach 93%. The GCU500 delivers up to 500 W of power over an operating range of
-40 °C to +70 °C and offers remote on/off control and power fail signal along with 5 V standby and fan supplies.

Inquiry Info. PDF

GSP750 Series

Features

Low Profile, Compact Size
Suitable for 1U Applications
900 W Peak Power Rating for 100 ms
Universal 80 - 264 VAC Input (300 VAC for 5 s)
IT/Industrial & Medical (2 x MOPP) Safety Approvals
5 V/3 A Standby Output
1.0 W Standby Power
Intelligent Fan Speed Control
-40° C to +70° C Operation
PowerFail, Inhibit, Remote Sense & Current Share
3 Year Warranty

The GSP750 offers a full 750 W of output power in a very small mechanical footprint while providing peak power to up to 900 W, a 5 V standby output with 3 A current capability and an input standby power draw of <1.0 W when the inhibit is activated. Approved for both IT/Industrial and medical applications the series has output versions from 12 V to 48 V. Cooling fans are intelligently controlled to reduce accoustic noise in the system and the GSP750 provides up to 50 W without forced cooling, allowing the fans to be switched off, providing silent running during periods of lower system loading or system standby conditions.

Inquiry Info. PDF
