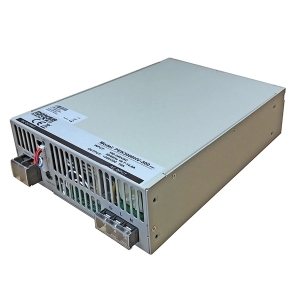

High Power Switch Mode Power Supplies
-
PAE1500 Series
Features
- Universal AC Input with active PFC
- Programmable Output Volatge (0%-105%)
- Programmable Output Current (0%-105%)
- Constant Current Limit
- +5V/0.5A or +9V/0.3A Auxiliary Output
- Forced current sharing for parallel operation
- Power OK signal
- Remote ON/OFF, Remote Sense function
- OVP, OLP, OTP, Fan Failure Protections
- Gold Control via RS232
- Remote Setting multiple PSU via RS232, RS485 & I²C
1500 Watts; 12V, 15V, 24V, 30V, 36V, 48V & 60VDC Outputs; Programmable Output Voltage (0-105%) & Output Current (0-105%); Universal AC Input Voltage Range; Active PFC; Control via RS232, RS485 & I²C Serial Bus -

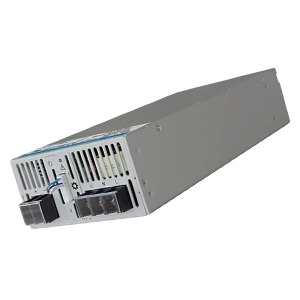

PAK1500 Series
Features
- Universal AC Input with active PFC
- Programmable Output Volatge (30%-105%)
- Programmable Output Current (40%-105%)
- High Eifficiency up to 90%
- Constant Current Limit
- +5V/0.5A Auxiliary Output
- Intelligent LED Indicators
- 1.5U profile, High Power Density
- Forced current sharing for parallel operation
- Power OK signal (Power good, logic low)
- Remote ON/OFF, Remote Sense function
- OVP, OLP, OTP, Fan Failure Protections
1500 Watts, 12V, 15V, 24V, 27V & 48VDC Outputs, Programmable Output Voltage (30-105%) & Current (40-105%), Universal AC Input, PFC -

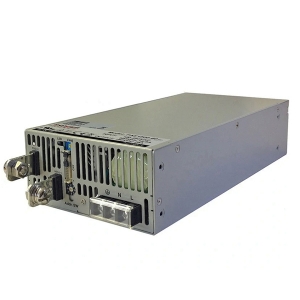

PAK3000 Series
Features
- Universal AC Input with active PFC
- Programmable Output Volatge (30%-105%)
- Programmable Output Current (40%-105%)
- High Eifficiency up to 90%
- +5V/0.5A Auxiliary Output
- 3U profile, High Power Density
- Forced current sharing for parallel operation
- Power OK signal (Power good, logic low)
- Remote ON/OFF, Remote Sense function
- OVP, OLP, OTP, SCP Fan Failure Protections
3000 Watts, 12V, 15V, 24V, 27V & 48VDC Outputs, Programmable Output Voltage (30-105%) & Current (40-105%), Universal AC Input, PFC -

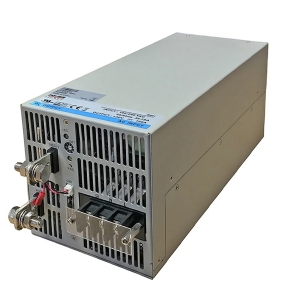

PEK3000 Series
Features
- Universal AC Input / Full Range
- Programmable Output Volatge (0%-105%)
- Programmable Output Current (0%-105%)
- Constant Current Limit
- Intelligent LED Indicators
- Forced current sharing for parallel operation
- Power OK signal (Power good, logic low)
- Remote ON/OFF, Remote Sense function
- OVP, OLP, OTP, SCP Fan Failure Protections
- Selectable +5V/0.5A or +9V/0.3A Auxiliary Output
- Global control via RS232
- Remote Setting Multiple PSU's via RS232, RS485 & I²C
3000 Watts, Single 12V, 15V, 24V, 30V, 36V, 48V or 60V DC output. Voltage and Current programmable from 0-105% -

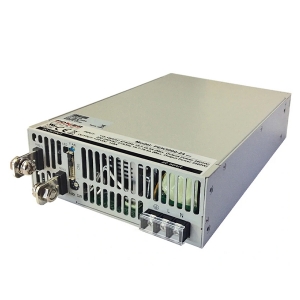

PEK3000HV Series
Features
- Universal AC Input/ Full Range
- Programmable Output Voltage (0%-105%)
- Programmable Output Current (0%-105%)
- Constant Current Limit
- Intelligent LED Indicators
- Forced current sharing for parallel operation
- Power OK signal (Power good, logic low)
- Remote ON/OFF, Remote Sense function
- OVP, OLP, OTP, SCP, Fan Failure Protections
- Selectable +5V/0.5A or +9V/0.3A Auxiliary Output
- Global control via RS232
- Remote Setting Multiple PSU's via RS232, RS485 & I²C
-
CT Series RS232 Interface
Features
- Supports PAE and PEK Series Programmable power supplies (not PAK Series)
- Support max. 8 unit serial or parallel control function
- Support RS232/485 protocol
- Easy installation for serial or parallel control.
Specification
- Input Voltage: 5Vdc
- Operating Temperature Range: -10℃ ~ 60℃
- Storage Temperature Range: - 30℃ ~ 70℃
- Baud rate: 4800, N, 8, 1
- Connector: DB-9F fo RS232, RJ-11 (6P4C) for RS485
- Optical Isolation: I/P - O/P: 2500Vac rms for 1 minute
-
Easy Charge Wizard
Features
- Memorize charging curve setting
- Programmable charger solution (higher flexibility for different type of batteries)
- High Voltage / Current charging requirement
- LED to show different charging status
- The software can automatically detect the model name connected, and allow user to control the output voltage and current within supported spec. and select the suitable battery type.
- Protection: Overvoltage (This function is to protect the battery, and user may select to enable or disable this function. Please refer to section 4-2 for setting info.)
-
C Series Industrial
Features
- CE Marked LVD & EMC
- 1-4 Outputs
- 5-400 Volts Output
- Eurocassette or Wall Mount
- Parallel Redundant Operation
- Fully Wired Customised Racks
- Power Factor Correction Modules
-
HPD4K5 Series
Features
- Controllable output voltage
- <40ms slew rate
- 3 Phase 180 to 264VAC input
- High efficiency, up to 90%
- 5V, 1A standby output
- Intelligent fan speed control
- Fully featured signals & controls
- I²C interface
- SEMI F47 compliant
- 0°C to +70°C operating temperature
- Full power to +50°C
- 3 Year Warranty
The HPD4K5 series offers users output voltage programming via a 0-5V external signal in a high efficiency, high power density 4.5 kW chassis mount package. Measuring just 15.0” x 4.25” x 6.5”. The HPD4K5 also features remote on/off, current monitor, fault reporting and a power OK signal. The 5V standby output is available whenever the mains supply is present. A PMBus interface is provided for signal & status monitoring. -
HPT5K0-L Series
Features
- 3 Phase 180 to 528 VAC Input - 3 Wire & Earth
- High Efficiency - up to 94%
- Programmable Output Voltage (0-105%)
- Programmable Output Current (0-110%)
- Parallel Operation
- Analog & Digital Interfaces
- Multiple Digital Protocols - PMBus, CANopen, MODBUS & SCPI
- Fully Featured Signals & Controls
- Graphical User Interface (GUI)
- 3 Year Warranty
The HPT5K0-L series offers users both output voltage and output current programming, via voltage, I2C PMBus, RS485 and CANopen in a very high efficiency, high power density, low profile, 5 kW chassis mount package. Options are available for RS232 or UART. Measuring just 13.25” x 10.0” x 2.50”, the HPT5K0-L also features active current sharing, remote on/off, remote sense and a power OK signal. The 5V/2A standby output is available whenever the mains supply is present.
Total of 10 results
