• Plastic Encapsulated Power Supplies from 3W to 80W

  • ECL05

    Features

    • Single voltage outputs from 3.3V to 48VDC
    • Universal input range 85-264VAC
    • 3kVAC input to output isolation
    • <0.3W no load input power
    • EN55032 Class B conducted and radiated emissions
    • IEC62368-1 ITE safety agency approvals
    • IEC Class II insulation rating
    • Overvoltage, overload, and short circuit protection
    • -20°C to +70°C operating temperature
    • 3 year warranty

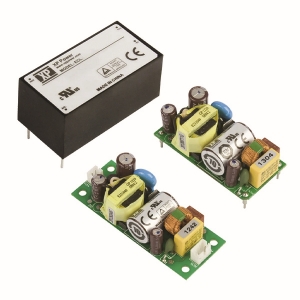

    ECL05 Series 5 Watts. PCB Mounting Plastic Encapsulated Package or PCB or Chassis Mounting Open Frame. 85-264VAC Input. Seven output versions from 3.3V to 48V DC. Class II ITE Safety Approvals

    Inquiry Info. PDF

  • ECL10

    Features

    • Single voltage outputs from 3.3V to 48VDC
    • Universal input range 85-264VAC
    • 3kVAC input to output isolation
    • <0.3W no load input power
    • EN55032 Class B conducted and radiated emissions
    • IEC62368-1 ITE safety agency approvals
    • IEC Class II insulation rating
    • Overvoltage, overload, and short circuit protection
    • -20°C to +70°C operating temperature
    • 3 year warranty

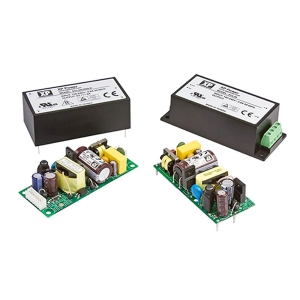

    ECL10 Series 10 Watts. PCB Mounting Plastic Encapsulated Package or PCB or Chassis Mounting Open Frame. 85-264VAC Input. Seven output versions from 3.3V to 48V DC. Class II ITE Safety Approvals.

    Inquiry Info. PDF

  • ECL15

    Features

    • Regulated single outputs from 3.3V to 48VDC
    • Regulated dual outputs +5V +12VDC, ±12V & ±15VDC
    • Regulated triple outputs +5V ±12V & +5V ±15VDC
    • Universal input range 85-264VAC
    • 3kVAC input to output isolation
    • <0.3W no load input power
    • EN55032 Class B conducted and radiated emissions
    • IEC62368-1 ITE safety agency approvals
    • IEC Class II insulation rating
    • Overvoltage, overload, and short circuit protection
    • -20°C to +70°C operating temperature
    • 3 year warranty
    ECL15 Series 15 Watts. PCB or Chassis Mounting Plastic Encapsulated or Open Frame package. 85-264VAC Input. Seven output versions from 3.3V to 48V DC and dual & triple output versions from 5V to 15V DC. Class II ITE Safety Approvals.

    Inquiry Info. PDF

Total of 13 results
