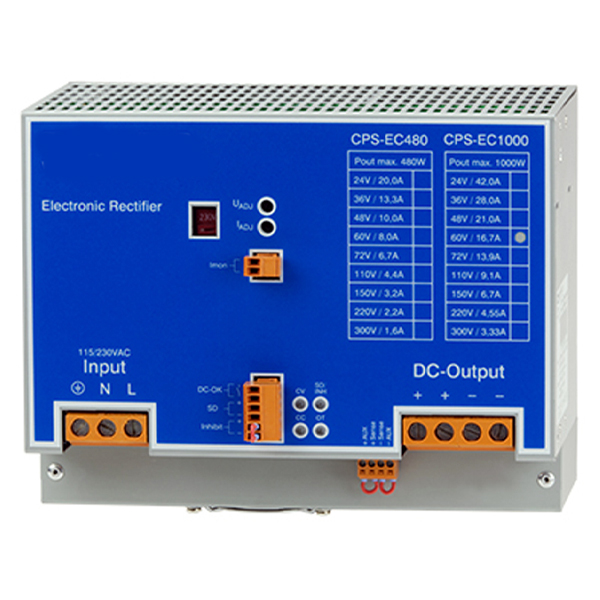

CPS-EC1000

Features

• Real time output current monitoring
• Precision potentiometer f. voltage & current
• Power Good Relay AC & DC-ok
• C/V curve down to 0V, no foldback
• Sense control 1V per load line
• Electronic inrush current limiter 13.8Apeak
• Inhibit function (Interlock)
• External shutdown
• Efficiency up to 92%
• Precise dynamic response to load change
• Designed for long life under full stress
• Strong input filters
• Hold up time >30ms
• Soft start & auto-recovery
• High reliability, shock & vibration proof
• EMC meets CE norm class B
• Overload and short circuit protection
• Large terminals 4x AWG22 – AWG6 (0,5 – 16mm²)
