• CPS-i1500

    Features

    • Real time C/V programming
    • Real time & value C/V-monitoring
    • Reference voltage f. autonomous programming
    • Inhibit for safe interlocking
    • Remote Shutdown
    • Sense control 2V per load line
    • Power Good Relay DC-ok
    • Quick down programming option PS
    • Precise dynamics on load change
    • Series & parallel operation N+1
    • Stepless fan-controlled heat dissipation
    • Electronic Inrush Limiter 14,7Arms
    • High reliability, shock & vibration proof
    • Efficiency up to 94%
    • EMI/EMS EN61000-6-2,3, EN55032 class B
    • EN61010-1, EN61010-2-201, EN62368-1

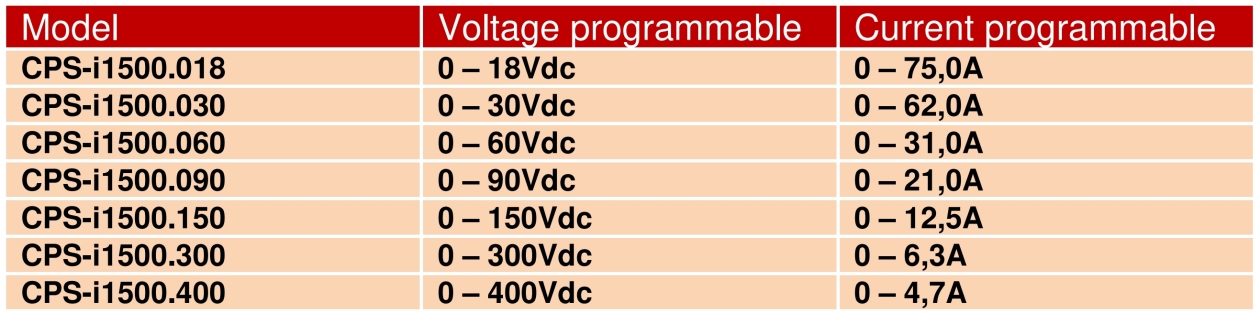

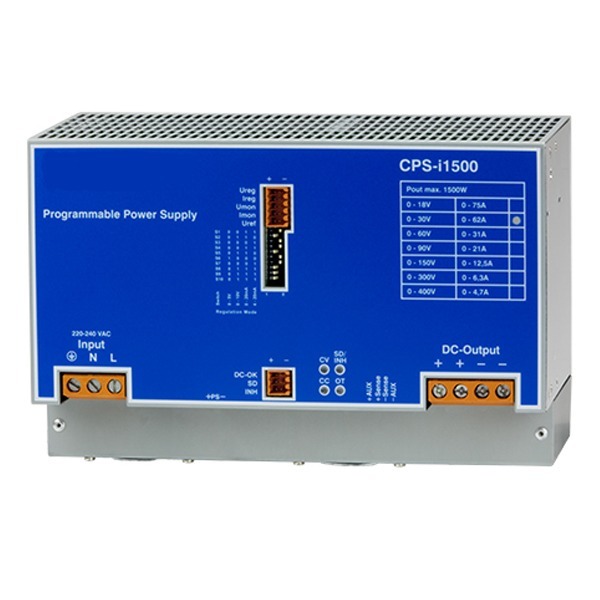

    CPS-i1500 Series 1500 Watts. DIN Rail Mounting Metal Enclosure, Single phase 184-264VAC input or 250V to 375VDC. Seven output model versions fully programmable for voltage and current from 0-18V DC @ 0-75A to 0-400VDC @ 0-4.7A. Power Good, DC OK and Remote On/Off.
