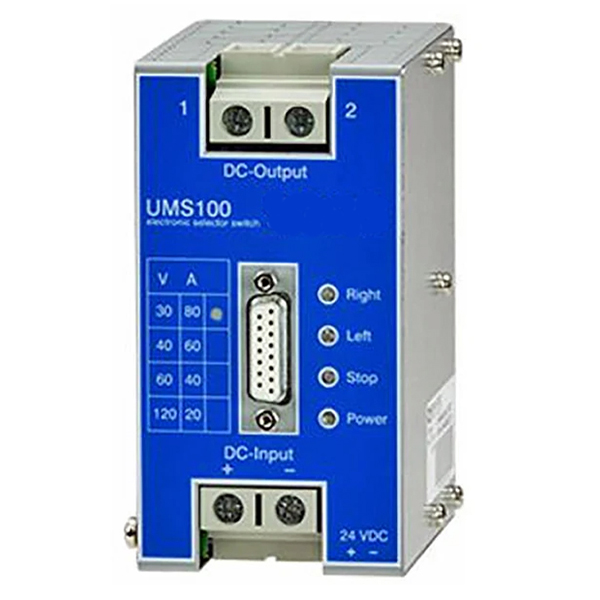

UMS100

Features

• Unlimited operational switches
• Up to 2400W power switching capacity
• Parallel operation N+1 power increase
• Switching current up to 320A
• Switching voltage up to 120Vdc
• Spring-type terminals 25mm2 / AWG4
• Natural convection DIN-Rail housing
• Interference free EMC behaviour
• Control In-/outputs galvanic isolated
• Left-/right operation mode
• Left-/right control monitor
• Motor STOP! signal optional
• Sense control
• Terminals AWG16-AWG4 (0,5-16mm²)
• EMI/EMS EN61000-6-2,3, EN55032 class B
• EN61010-1, EN61010-2-201, EN62368-1
