• ESB101 Series Inrush Current Limiter

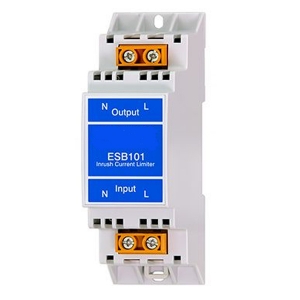

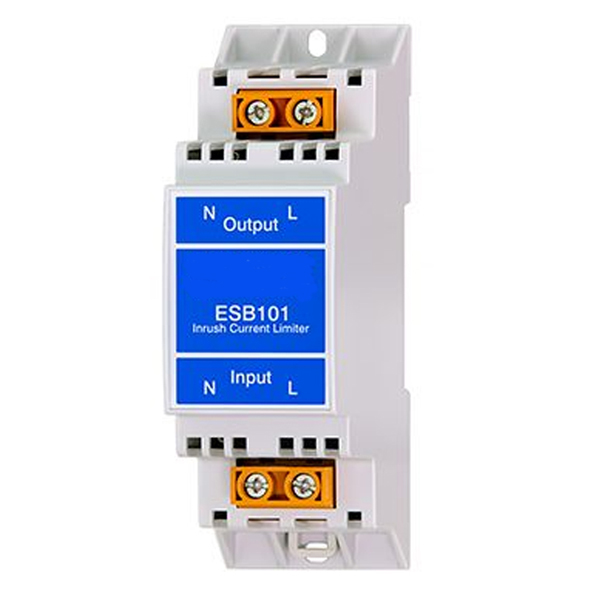

    ESB101 Series Inrush Current Limiter

    Features

    • Peak- / R.M.S. inrush current limiter
    • 90-132Vac / 184-264Vac, 16A continuous
    • Power consumption 1,1W @ 230Vac
    • DIN TS35mm DIN-Rail
    • Wall mount (universal case)
    • Spring-type terminals 6mm² / 10AWG
    • Integrated bypass relay
    • Capacitive load 1.500uF up to 10.000uF
    • Integrated thermal protection
    • IP20 UL94V-0 case DIN43880 for DIN/VDE0603 cutout box
    • EN62368-1, EN55032 class B
    ESB001 Inrush Current Limiter. DIN Rail mounting. Budget Price. For capacitive loads 230VAC input 16A, 16 ⅓ Hz – 440Hz.

    PDF

ESB101 Series Inrush Current Limiter
