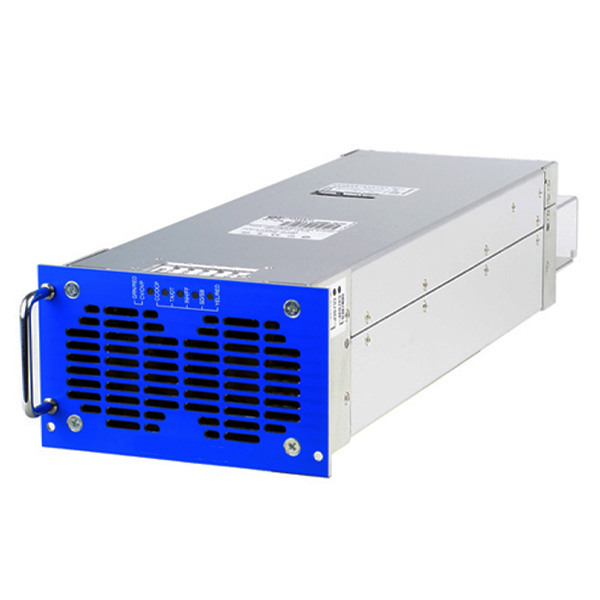

CPS-i2000

Features

• Optional LAN interface plug & play
• 3D Heat Dissipation
• Real time I/V programming
• Real time I/V-monitoring
• Reference voltage f. autonomous programming
• CSB Current Share Bus paralleling 7 units
• Inhibit for safe interlocking & Remote Shutdown
• Remote Shutdown
• Power Good Relay AC-ok and DC-ok
• Precise dynamics on load change
• Series & parallel operation up to 100kW
• EMC conducted class B, radiated class A
• Efficiency 92-94%
• PFC Powerfactor 0,99
• Variable controlled fans from Papst
• Long lifetime under hard operation
• Fast down programming option PS
• Solid 2U and 3U subframes available
