GFR1K5

Features

• Programmable output voltage (0-105%)
• 1.5kW high line 1.2kW low line fan cooled
• 299.7mm x 101.6mm footprint, 43.33mm profile
• Regulated single outputs 12 to 56VDC
• Input range 85 to 264VAC
• 1U blind mate, hotswap, redundancy

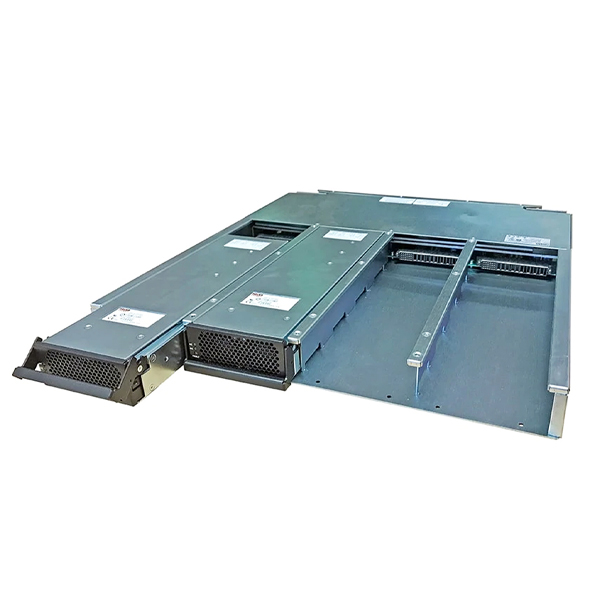

• 1U 19” subrack accepts up to 4 x GFR’s (6kW)
• 56VDC Power over Ethernet compatible model
• AC OK, DC OK, inhibit, enable, 5VDC standby
• Current share & I²C interface
• 3 year warranty
