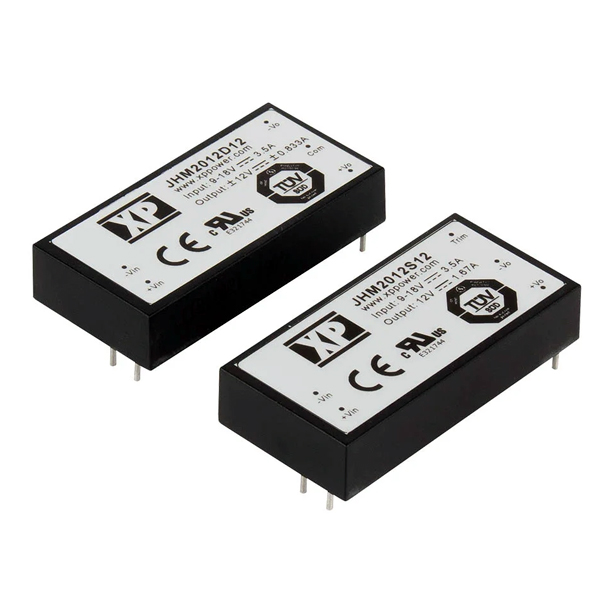

JHM20

Features

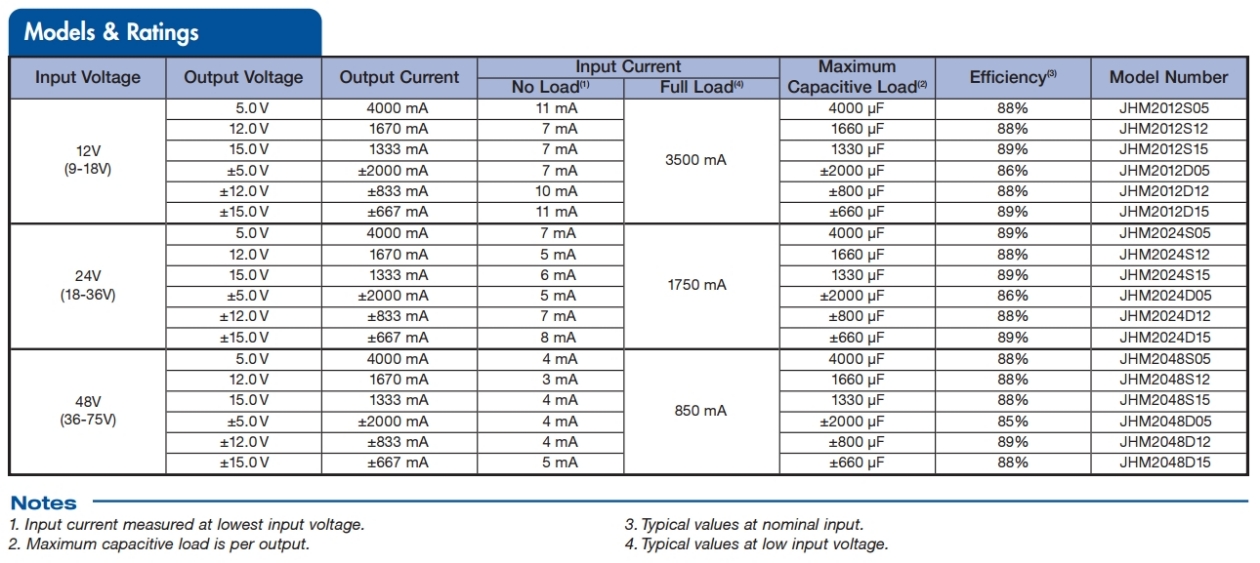

• Regulated single & dual outputs from 5 to 30VDC
• Single outputs trimmable ±10%
• 2:1 Input range
• 2” x 1” footprint PCB mount
• International medical approvals
• 4kVAC reinforced isolation
• 2 x MOPP @ 250VAC working voltage
• 2.5µA Patient leakage current
• Medical approval, IEC60601-1, 3rd Edition including risk management
• EN55011 Class A with no external components
• -40°C to +80°C operating temperature
• Full power to +60°C
• 3 year warranty
