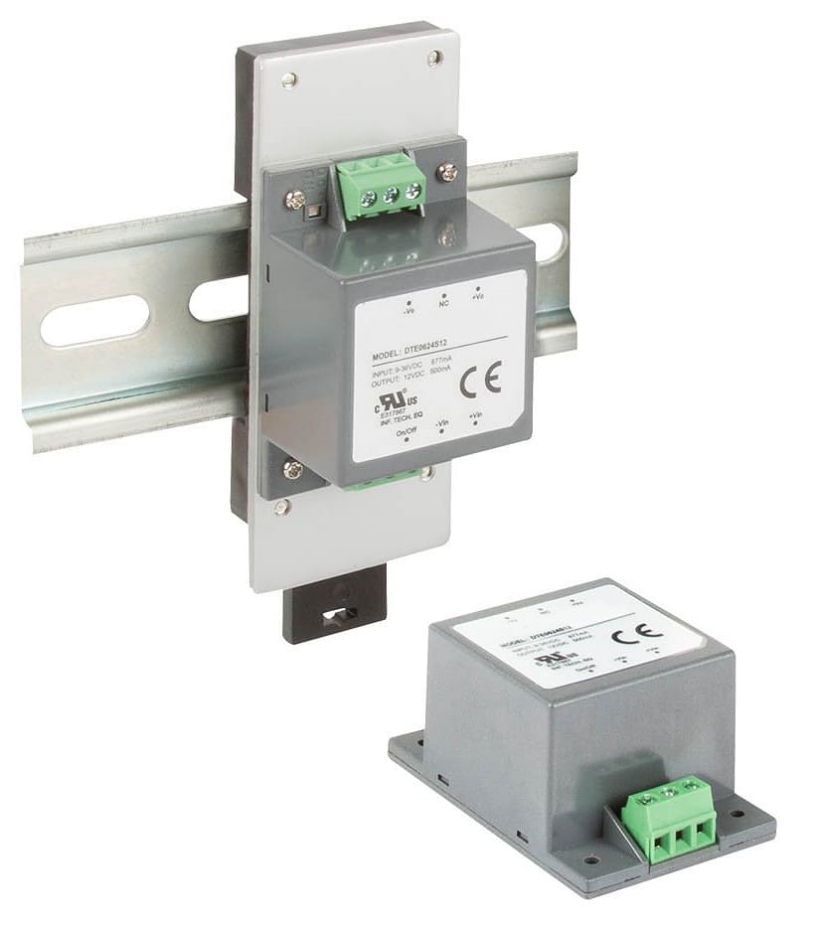

Products DC to DC Converters and Switching Regulators DC-DC Converters Chassis mounting DTE06 Series Features Regulated single & dual outputs from 5VDC to 48VDC Wide 4:1 input range Fully encapsulated chassis mount Optional DIN rail version IEC/UL/cUL62368-1 safety approvals EN55032 class A with no external components Remote on/off 3kVDC isolation -40°C to +105°C operating temperature Full power to 80°C MTBF >4Mhrs (MIL-DHBK-27F, +25°C GB) 3 year warranty Available in two wide (4:1) input ranges for nominal 12/24VDC and 24/48VDC, the DTE06 series of encapsulated 6W DC-DC converters are chassis mount as standard or can be ordered with a DIN rail mount. They have screw terminals for ease of connection and an LED provides clear ‘power good’ indication. Remote On/Off is standard and when inhibited the standby current is just 2.5mA. Isolation is 3kVDC input/output providing excellent separation between supply and load. The modules are fully protected against input undervoltage, short circuit and overload conditions. These features, along with a rugged design and wide operating temperature range make the DTE06 series suitable for a variety of commercial and industrial applications. PDF Please write down your comment on this product, and click Add to Inquiry List for inquiry Add to Inquiry List Review Inquiry List Back
