• Features

    • Single outputs 3.3V to 48VDC
    • Input range 80 to 264VAC
    • Available in open frame and encapsulated formats
    • High efficiency, up to 85%
    • 4kVAC input to output isolation
    • Class B conducted and radiated emissions
    • IEC 60601-1 medical safety agency approvals, 2 x MOPP
    • IEC class II insulation rating
    • -25°C to +70°C operating temperature
    • Overvoltage, overload and short circuit protection

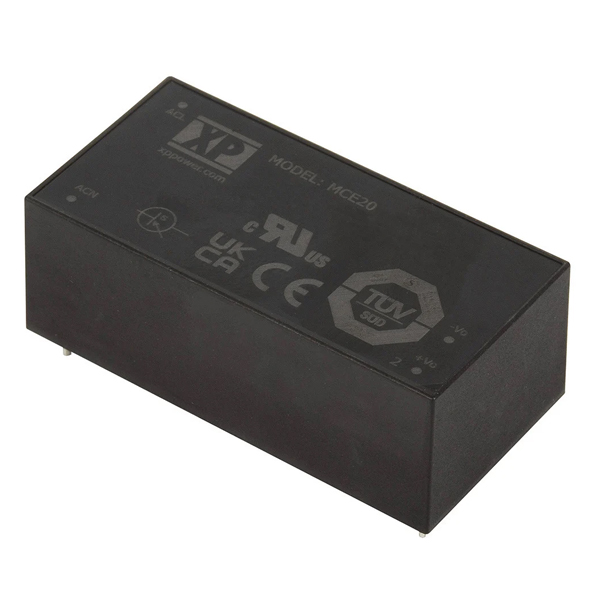

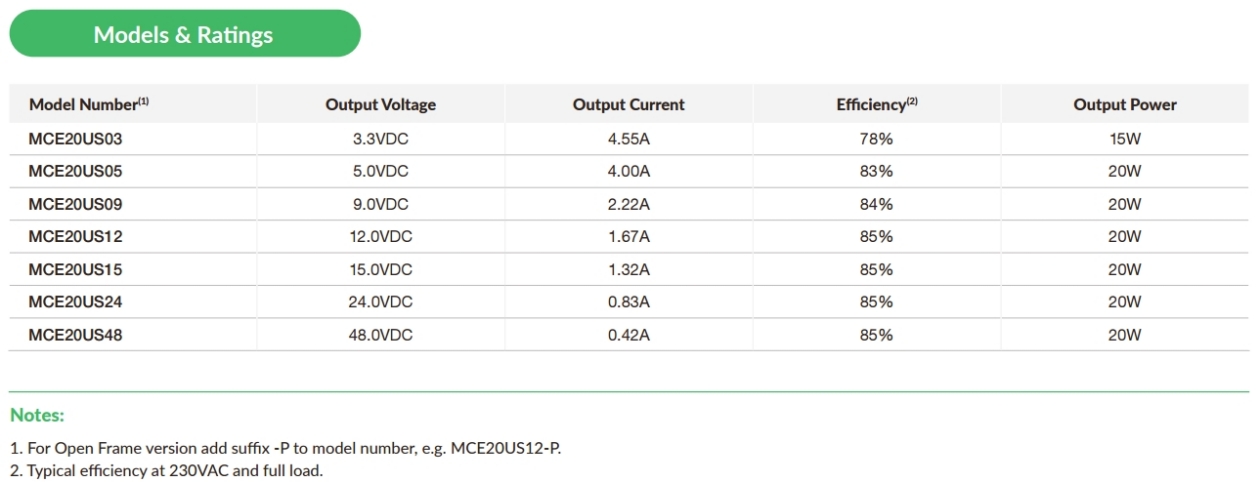

    MCE20 Series, 20 Watts, Open PCB or Encapsulated, 7 Models 3.3V to 48V DC outputs. Class II insulation. Medical Safety Approvals

    PDF
