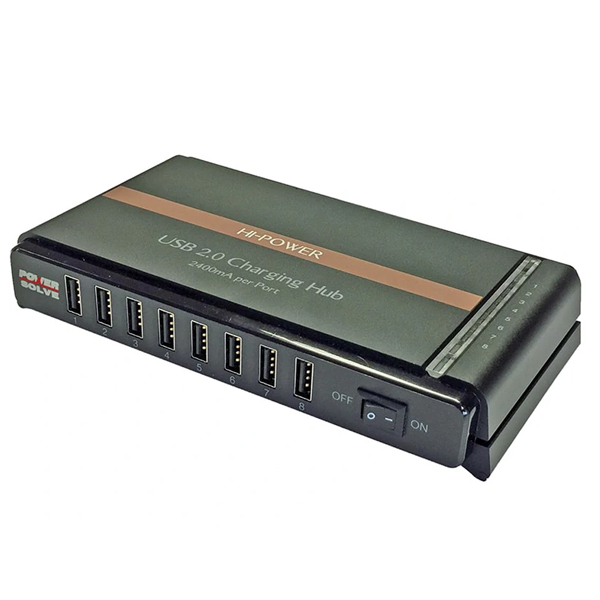

PSUSB-0824

Features

• Compliant with USB battery charging specification 1.2
• Provides up to 1.5A (CDP mode) or 2.4A (DCP mode) output currect on each port
• Supports high speed 480 Mbps, full speed 12 Mbps and low speed 1.5 Mbps operation
• Supports iOS and Android devices
• Enables CDP/DCP mode switching automatically by manually connecting or disconnecting host computer port
• If all devices are fully charged in DCP mode the unit would automatically cut of all port’s LED and power
• Intelligently detects the power current of each port by the sensing meter with firmware and enables the ports LED to illuminate its corresponding colour. Charging: Red; Sync Mode: Orange Disconnected or fully charged: Green
• The 8 port charging hub can be cascaded with 7 other units giving a total of 8 hubs and 64 ports.
• Features Over-Voltage, Over-Current Protection and ±15kV (air), ±8kV (contact) ESD protection on eachport
• Supports 40A (5/50ns) & Peak Pulse Power 250 W (8/20 us) Surge and Transient spikes protection on each port
• High temperature protection is standard, if the unit’s temperature is higher than set limit it will cut off all output current immediately and all the LEDs of all 8 ports would be flashing
• Compact aluminium housing measures only 170 x 80 x 30mm
• Powered by external 120W universal AC input power supply with full safety approvals (supplied with the hub)
