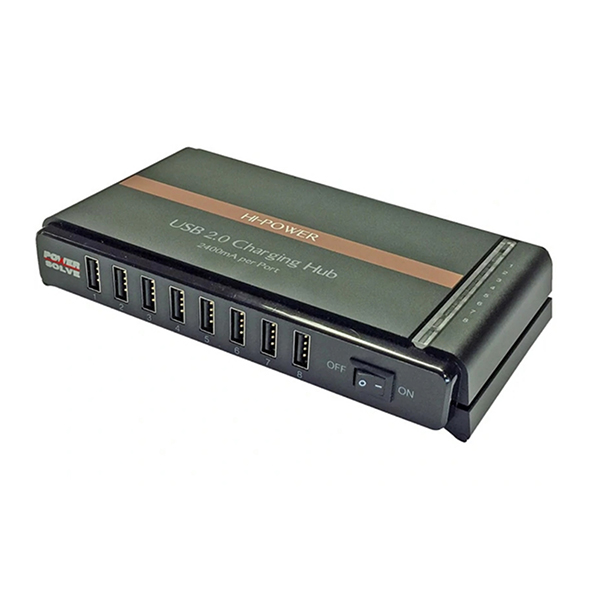

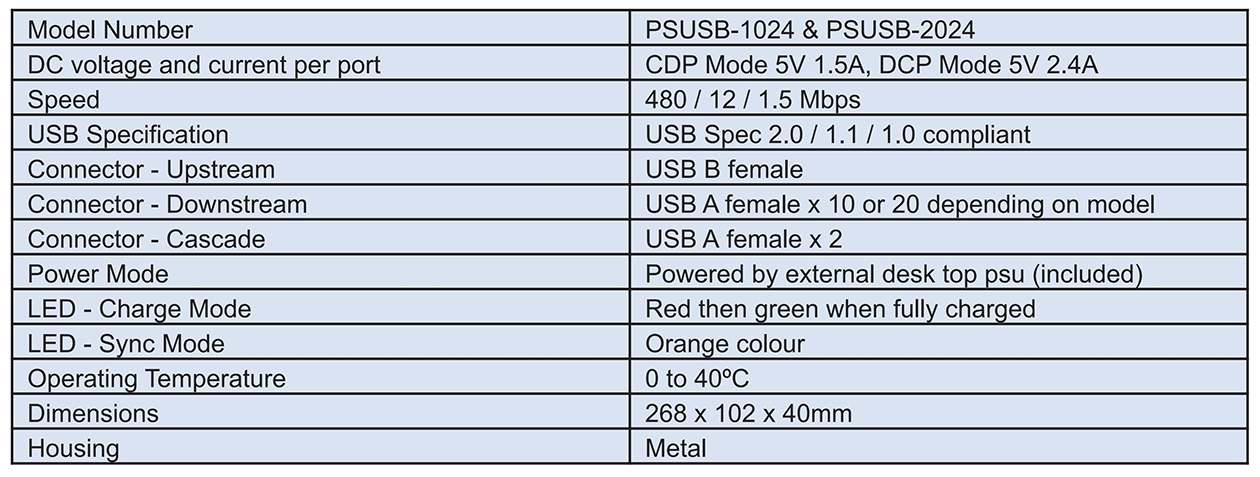

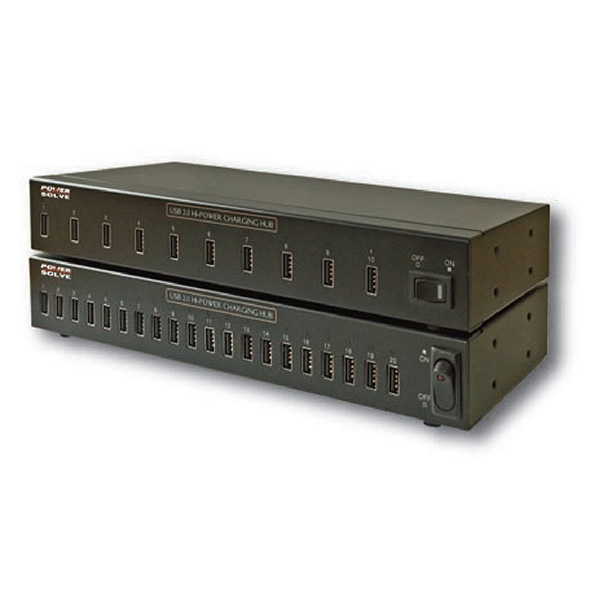

PSUSB-1024 & PSUSB-2024

Features

• Compliant with USB battery charging specification 1.2
• Provides up to 1.5A (CDP mode) or 2.4A (DCP mode) output currect on each port
• Supports high speed 480 Mbps, full speed 12 Mbps and low speed 1.5 Mbps operation
• Supports iOS and Android devices
• Enables CDP/DCP mode switching automatically by manually connecting or disconnecting host computer port
• If all devices are fully charged in DCP mode the unit would automatically cut of all port’s LED and power
• Intelligently detects the power current of each port by the sensing meter with firmware and enables the ports LED to illuminate its corresponding colour. Charging: Red; Disconnected or fully charged: Green Sync Mode: Orange
• These hubs can be cascaded with another unit of the same type to double the number of ports
• Features Over-Voltage, Over-Current Protection and ±15kV (air), ±8kV (contact) ESD protection on each port
• Supports 40A (5/50ns) & Peak Pulse Power 250 W (8/20 us) Surge and Transient spikes protection on each port
• High temperature protection is standard, if the unit’s temperature is higher than set limit it will cut off all output current immediately and all the LEDs of all ports would be flashing
• Compact aluminium housing measures only 268 x 102 x 40mm
• Powered by external universal AC input power supply with full safety approvals (supplied with the hub)
