Industrial & DIN Rail Power Supplies from 10W to 22kW
-

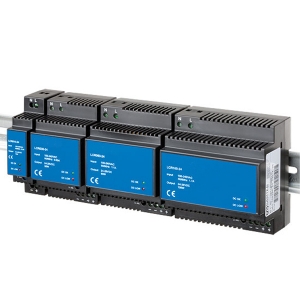

LCR Series
Features
- Housing for circuit breaker boxes
- Natural cooling
- Galvanic insolated
- Shortcircuit protected
- Low- & over-voltage protection
- Over temperature protection
- Softstart
- Auto-recovery after faulty operation
- Hold-up time >80ms (230Vac)
- No base load required
LCR Series 10-100 Watts. DIN Rail Mounting Plastic Enclosure. 90-264VAC Input. Four models available of 24V 10W, 24V 30W, 24V 60W or 24V 100W. DC OK Signal -

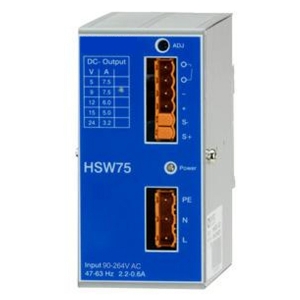

HSW00751 Series
Features
- Up to 90% efficiency
- Natural convection
- Hold-up time >70ms
- N+1 parallel operation
- Metal housing
- Open Circuit Proof
- Designed for long life under full stress
- Strong input filters
- High reliability, shock & vibration proof
- Over Voltage and continuous short circuit protection
- EMI/EMS EN61000-6-2,3, EN55032 class B
- EN61010-1, EN61010-2-201, EN62368-1
HSW00751 Series 75 Watts. DIN Rail Mounting Metal Enclosure, 90-264VAC or 110-375DC Input. Five output model versions of 5V, 9V, 12V, 15V or 24V DC. N+1 parallel operation. -

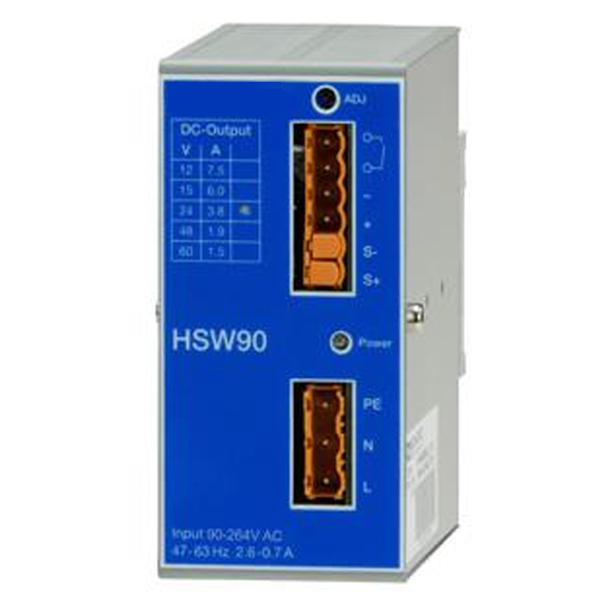

HSW00901 Series
Features
- Up to 90% efficiency
- Natural convection
- Hold-up time >60ms
- N+1 parallel operation
- Metal housing
- Open Circuit Proof
- Designed for long life under full stress
- Strong input filters
- High reliability, shock & vibration proof
- Over Voltage and continuous short circuit protection
- EMI/EMS EN61000-6-2,3, EN55032 class B
- EN61010-1, EN61010-2-201, EN62368-1
HSW00901 Series 90 Watts. DIN Rail Mounting Metal Enclosure, 90-264VAC or 110-375DC Input. Six output model versions of 24V, 36V, 48V, 60V, 72V or 140V DC. N+1 parallel operation. -

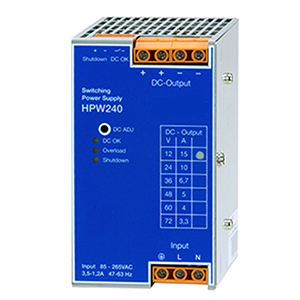

HPW02401 Series
Features
- Up to 91,5% efficiency
- Natural convection
- Hold-up time >40ms
- N+1 parallel operation
- Remote Shutdown
- Precision current voltage curve
- Precise dynamic response on load change
- Electronic Inrush Limiter <7A
- Designed for long life under full stress
- Strong input filters
- High reliability, shock & vibration proof
- Over Voltage and continuous short circuit protection
- EMI/EMS EN61000-6-2,3, EN55032 class B
- EN61010-1, EN61010-2-201, EN62368-1
HPW02401 Series 240 Watts. DIN Rail Mounting Metal Enclosure, 85-264VAC or 90-350DC Input. Six output model versions of 12V, 24V, 36V, 48V, 60V or 72V DC. Wide output voltage adjustment. N+1 parallel operation. Remote Shutdown -

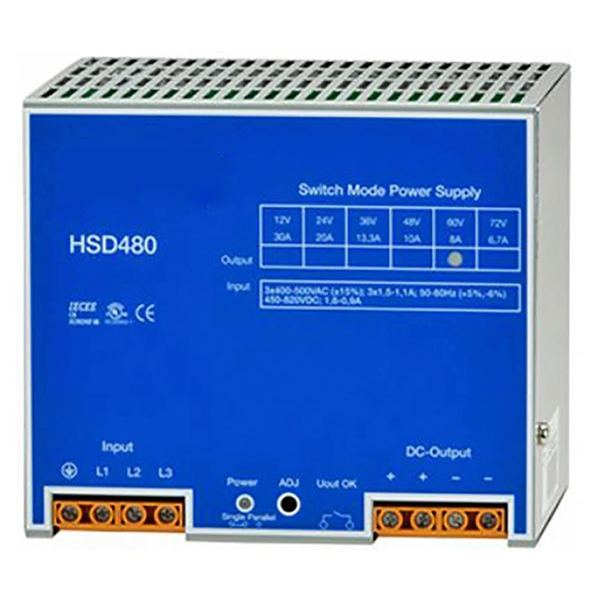

HSD04801 Series
Features
- Up to 92% efficiency
- Natural convection
- N+1 parallel operation
- Hold-up time >15ms
- Electronic Inrush Limiter <5A
- Precision current voltage curve
- Precise dynamic response on load change
- Designed for long life under full stress
- Strong input filters
- High reliability, shock & vibration proof
- Over Voltage and continuous short circuit protection
- PFC: EN61000-3-2
- EMI/EMS EN61000-6-2,3, EN55032 class B
- EN61010-1, EN61010-2-201, EN62368-1
HSD04801 Series 480 Watts. DIN Rail Mounting Metal Enclosure, 3 phase AC 340-575VAC / 2 phase AC 340-575VAC or 450-820VDC Input. Four output model versions of 24V, 36V, 48V or 60VDC. N+1 parallel operation. -

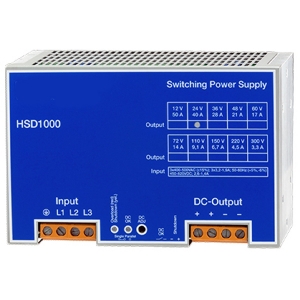

HSD10001 Series
Features
- Up to 92% efficiency
- Natural convection
- N+1 parallel operation
- Hold-up time >12ms
- Electronic Inrush Limiter <20A
- Precision current voltage curve
- Precise dynamic response on load change
- Designed for long life under full stress
- Strong input filters
- High reliability, shock & vibration proof
- Over Voltage and continuous short circuit protection
- PFC: EN61000-3-2
- EMI/EMS EN61000-6-2,3, EN55032 class B
- EN61010-1, EN61010-2-201, EN62368-1
HSD10001 Series 1000 Watts. DIN Rail Mounting Metal Enclosure, 3 phase AC 340-575VAC / 2 phase AC 340-575VAC or 450-820VDC Input. Six output model versions of 12V, 24V, 36V, 48V, 60V or 72V DC. N+1 parallel operation. -

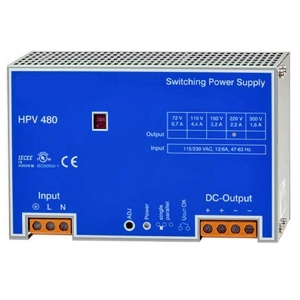

HPV04801 Series
Features
- C/V curve down to 0V, no foldback
- Power Good Relay AC & DC-ok optional
- Efficiency up to 93%
- Hold up time >50ms
- Soft start & auto-recovery
- Precise dynamic response to load change
- Designed for long life under full stress
- Strong input filters
- High reliability, shock & vibration proof
- EMC meets CE norm class B
- Overload and short circuit protection
- Large terminals 4x AWG20 – AWG6 (0,5 – 16mm²)
HPV04801 Series 480 Watts. DIN Rail Mounting Metal Enclosure, Single phase 115/230VAC input, switch selectable. Four output model versions of 72V, 110V, 150V or 220V DC with wide adjustability. Power Good Signal. AC & DC OK optional. -

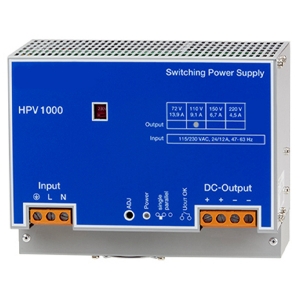

HPV10001 Series
Features
- C/V curve down to 0V, no fold back
- Power Good Relay AC & DC-ok optional
- Efficiency up to 93%
- Hold up time >30ms
- Soft start & auto-recovery
- Precise dynamic response to load change
- Designed for long life under full stress
- Strong input filters
- High reliability, shock & vibration proof
- EMC meets CE norm class B
- Overload and short circuit protection
- Large terminals 4x AWG20 – AWG6 (0,5 – 16mm²)
HPV10001 Series 1008 Watts. DIN Rail Mounting Metal Enclosure, Single phase 115/230VAC input, switch selectable. Four output model versions of 72V, 110V, 150V or 220V DC with wide adjustability. Power Good Signal. AC & DC OK optional. -

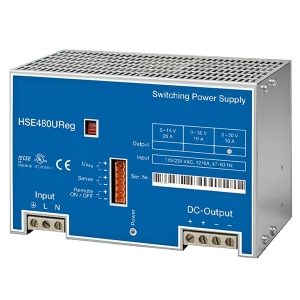

HSEUReg04801
Features
- Voltage programming from 0V
- Multi interface 0-10V & 0-20mA
- Sense & Shutdown (remote ON/OFF)
- N+1 parallel operation
- Natural convection
- Precise dynamic response on load change
- Designed for long life under full stress
- Strong input filters
- High reliability, shock & vibration proof
- Over Voltage and continuous short circuit protection
- EMI/EMS EN61000-6-2,3, EN55032 class B
- EN61010-1, EN61010-2-201, EN62368-1
HSEUREG04801 Series 480 Watts, DIN Rail Mounting Metal Enclosure, Single phase 115/230VAC input, switch selectable. Six output model version fully voltage programmable from 0-15V, 0-30V, 0-50V, 0-90V, 0-130V or 0-180V DC. Remote On/Off. N+1 parallel operation. -

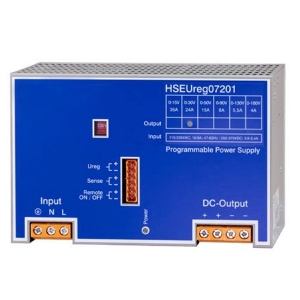

HSEUReg07201
Features
- Voltage programming from 0V
- Multi interface 0-10V & 0-20mA
- Sense & Shutdown (remote ON/OFF)
- N+1 parallel operation
- Natural convection
- Precise dynamic response on load change
- Designed for long life under full stress
- Strong input filters
- High reliability, shock & vibration proof
- Over Voltage and continuous short circuit protection
- EMI/EMS EN61000-6-2,3, EN55032 class B
- EN61010-1, EN61010-2-201, EN62368-1
HSEUREG07201 Series 720 Watts. DIN Rail Mounting Metal Enclosure, Single phase 115/230VAC input, switch selectable. Six output model version fully voltage programmable from 0-15V, 0-30V, 0-50V, 0-90V, 0-130V or 0-180V DC. Remote On/Off. N+1 parallel operation.
