Industrial & DIN Rail Power Supplies from 10W to 22kW
-

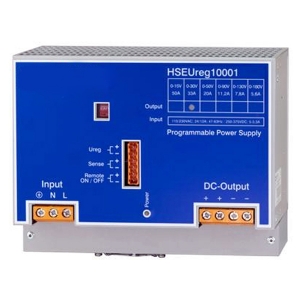

HSEUReg10001
Features
- Voltage programming from 0V
- Multi interface 0-10V & 0-20mA
- Sense & Shutdown (remote ON/OFF)
- N+1 parallel operation
- Controlled high quality fan
- Precise dynamic response on load change
- Designed for long life under full stress
- Strong input filters
- High reliability, shock & vibration proof
- Over Voltage and continuous short circuit protection
- EMI/EMS EN61000-6-2,3, EN55032 class B
- EN61010-1, EN61010-2-201, EN62368-1
HSEUREG10001 Series 1000 Watts. DIN Rail Mounting Metal Enclosure, Single phase 115/230VAC input, switch selectable. Six output model version fully voltage programmable from 0-15V, 0-30V, 0-50V, 0-90V, 0-130V or 0-180V DC. Remote On/Off. N+1 parallel operation. -

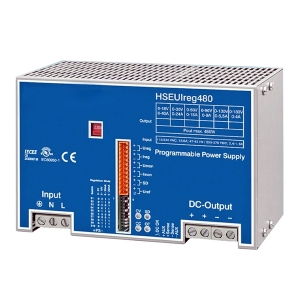

HSEUIReg04801
Features
- Real time voltage programming
- Real time & value C/V-monitoring
- Reference voltage f. autonomous programming
- Remote Shutdown
- Sense control 2V per load line
- Power Good Relay DC-ok
- Quick down programming option PS
- Precise dynamics on load change
- Series & parallel operation N+1
- Natural convection
- Electronic Inrush Limiter 13,8Arms
- Up to 90% efficiency
- EMI/EMS EN61000-6-2,3, EN55032 class B
- EN61010-1, EN61010-2-201, EN62368-1
HSEUiREG04801 Series 480 Watts. DIN Rail Mounting Metal Enclosure, Single phase 115/230VAC input, switch selectable. Seven output model versions fully voltage & current programmable from 0-18VDC @ 0-40A to 0-240VDC @ 0-3A. Power Good, DC OK and Remote On/Off. -

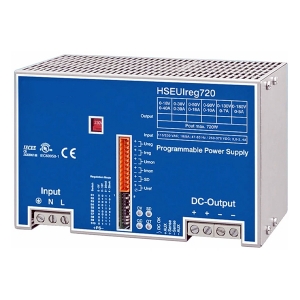

HSEUIReg07201
Features
- Real time voltage programming
- Real time & value C/V-monitoring
- Reference voltage f. autonomous programming
- Remote Shutdown
- Sense control 2V per load line
- Power Good Relay DC-ok
- Quick down programming option PS
- Precise dynamics on load change
- Series & parallel operation N+1
- Natural convection
- Electronic Inrush Limiter 13,8Arms
- Up to 90% efficiency
- EMI/EMS EN61000-6-2,3, EN55032 class B
- EN61010-1, EN61010-2-201, EN62368-1
HSEUiREG07201 Series 720 Watts. DIN Rail Mounting Metal Enclosure, Single phase 115/230VAC input, switch selectable. Eight output model versions fully voltage & current programmable from 0-18VDC @ 0-40A to 0-240VDC @ 0-3A. Power Good, DC OK and Remote On/Off. -

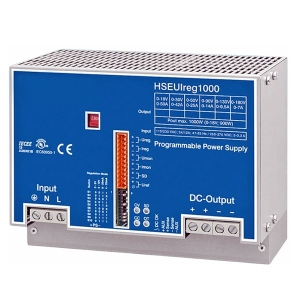

HSEUIReg10001
Features
- Real time voltage programming
- Real time & value C/V-monitoring
- Reference voltage f. autonomous programming
- Remote Shutdown
- Sense control 2V per load line
- Power Good Relay DC-ok
- Quick down programming option PS
- Precise dynamics on load change
- Series & parallel operation N+1
- Controlled Fan (EBM Pabst)
- Electronic Inrush Limiter 13,8Arms
- Up to 90% efficiency
- EMI/EMS EN61000-6-2,3, EN55032 class B
- EN61010-1, EN61010-2-201, EN62368-1
HSEUiREG10001 Series 1000 Watts. DIN Rail Mounting Metal Enclosure, Single phase 115/230VAC input, switch selectable. Eight output model versions fully voltage & current programmable from 0-18VDC @ 0-40A to 0-240VDC @ 0-3A. Power Good, DC OK and Remote On/Off. -

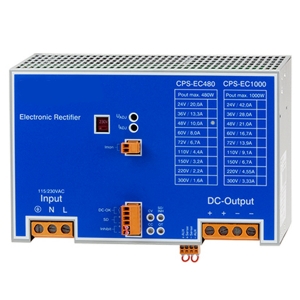

CPS-EC480
Features
- Real time output current monitoring
- Precision potentiometer f. voltage & current
- Power Good Relay AC & DC-ok
- C/V curve down to 0V, no fold back
- Sense control 1V per load line
- Electronic inrush current limiter 13.8Apeak
- Inhibit function (Interlock)
- External shutdown
- Efficiency up to 92%
- Precise dynamic response to load change
- Designed for long life under full stress
- Strong input filters
- Hold up time >50ms
- Soft start & auto-recovery
- High reliability, shock & vibration proof
- EMC meets CE norm class B
- Overload and short circuit protection
- Large terminals 4x AWG22 – AWG6 (0,5 – 16mm²)
CPS-EC480 Series 480 Watts. DIN Rail Mounting Metal Enclosure, Single phase 115/230VAC input, switch selectable. Nine output model versions with wide range voltage and current adjustability from 24V to 300V DC. Power Good, DC OK and Remote On/Off. -

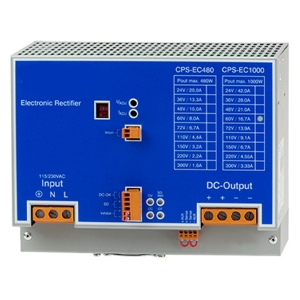

CPS-EC1000
Features
- Real time output current monitoring
- Precision potentiometer f. voltage & current
- Power Good Relay AC & DC-ok
- C/V curve down to 0V, no foldback
- Sense control 1V per load line
- Electronic inrush current limiter 13.8Apeak
- Inhibit function (Interlock)
- External shutdown
- Efficiency up to 92%
- Precise dynamic response to load change
- Designed for long life under full stress
- Strong input filters
- Hold up time >30ms
- Soft start & auto-recovery
- High reliability, shock & vibration proof
- EMC meets CE norm class B
- Overload and short circuit protection
- Large terminals 4x AWG22 – AWG6 (0,5 – 16mm²)
CPS-EC1000 Series 1008 Watts. DIN Rail Mounting Metal Enclosure, Single phase 115/230VAC input, switch selectable. Nine output model versions with wide range voltage and current adjustability from 24V to 300V DC. Power Good, DC OK and Remote On/Off. -

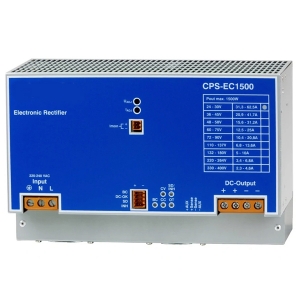

CPS-EC1500
Features
- Real time output current monitoring
- Precision potentiometer f. voltage & current
- Power Good Relay AC & DC-ok
- C/V curve down to 0V, no fold back
- Sense control 2V per load line
- Electronic inrush current limiter 20,7Apeak
- Inhibit function (Interlock)
- External shutdown
- Boost Charge Mode
- Precise dynamic response to load change
- Designed for long life under full stress
- Strong input filters
- Hold up time >20ms
- High reliability, shock & vibration proof
- Overload and short circuit protection
- Efficiency up to 94%
- EMI/EMS EN61000-6-2,3, EN55032
- EN61010-1, EN61010-2-201, EN62368-1
CPS-EC1500 Series 1500 Watts. DIN Rail Mounting Metal Enclosure, Single phase 184-264VAC input or 250V to 375VDC. Nine output model versions with wide range voltage and current adjustability from 24V to 400V DC. Power Good, DC OK and Remote On/Off. -

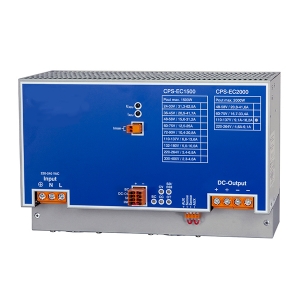

CPS-EC2000
Features
- Real time output current monitoring
- Precision potentiometer f. voltage & current
- Power Good Relay AC & DC-ok
- C/V curve down to 0V, no fold back
- Sense control 2V per load line
- Electronic inrush current limiter 20,7Apeak
- Inhibit function (Interlock)
- External shutdown
- Boost Charge Mode
- Precise dynamic response to load change
- Designed for long life under full stress
- Strong input filters
- Hold up time >20ms
- High reliability, shock & vibration proof
- Overload and short circuit protection
- Efficiency up to 94%
- EMI/EMS EN61000-6-2,3, EN55032
- EN61010-1, EN61010-2-201, EN62368-1
CPS-EC2000 Series 2000 Watts. DIN Rail Mounting Metal Enclosure, Single phase 184-264VAC input or 250V to 375VDC. Four output model versions with wide range voltage and current adjustability from 48V to 220V DC. Power Good, DC OK and Remote On/Off. -

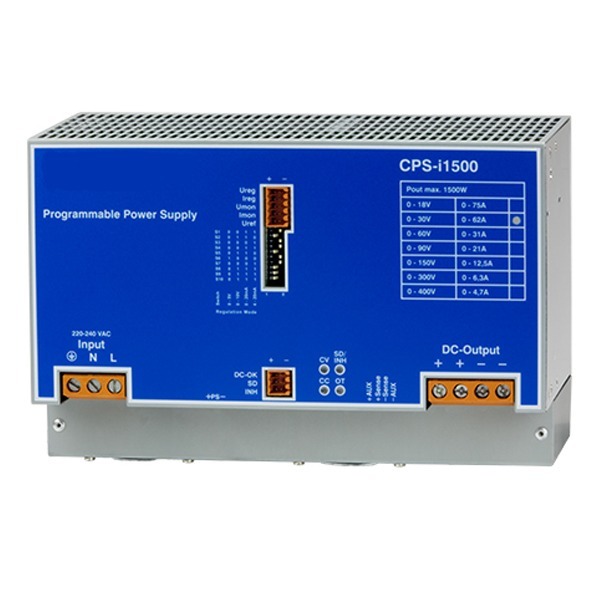

CPS-i1500
Features
- Real time C/V programming
- Real time & value C/V-monitoring
- Reference voltage f. autonomous programming
- Inhibit for safe interlocking
- Remote Shutdown
- Sense control 2V per load line
- Power Good Relay DC-ok
- Quick down programming option PS
- Precise dynamics on load change
- Series & parallel operation N+1
- Stepless fan-controlled heat dissipation
- Electronic Inrush Limiter 14,7Arms
- High reliability, shock & vibration proof
- Efficiency up to 94%
- EMI/EMS EN61000-6-2,3, EN55032 class B
- EN61010-1, EN61010-2-201, EN62368-1
CPS-i1500 Series 1500 Watts. DIN Rail Mounting Metal Enclosure, Single phase 184-264VAC input or 250V to 375VDC. Seven output model versions fully programmable for voltage and current from 0-18V DC @ 0-75A to 0-400VDC @ 0-4.7A. Power Good, DC OK and Remote On/Off. -

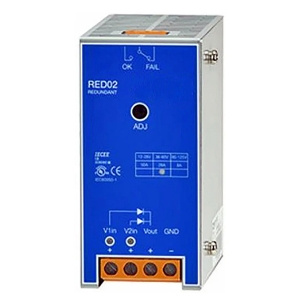

RED00202
Features
- Detects low voltage and over voltage
- Reverse polarity protected
- Monitoring relay, floating
- Low voltage drop
- Screw terminals 16mm2
- EN62368-1
- Schottky barrier decoupling diodes
- Efficiency ≥ 97%
- Adjustable drop out voltage detection
- - 20°C...+70°C ambient temperature IP20 metal housing
RED00202 Redundancy Module. DIN Rail Mounting Metal Enclosure. This module allows two power supplies up to 1kW output rating to operate in parallel redundancy mode. Suitable for output voltages up to 125V DC. Detects low voltage and over voltage.
Total of 43 results
