Medically Approved AC-DC Power Supplies from 3W to 5000W
-

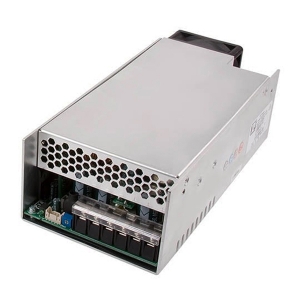

GCU500 Series
Features
- 250W convection and 500W forced-cooled ratings
- 5V standby output
- Universal 80 to 264VAC input
- IT and medical safety approvals
- -40°C to +70°C operation
- Power fail, remote On/Off and remote sense
- Class B emissions
- 3 year warranty
GCU500 Series, 500 Watts, U Channel or Enclosed, 6 models from 12V to 48V DC Outputs. Medical & ITE Safety Approvals. -

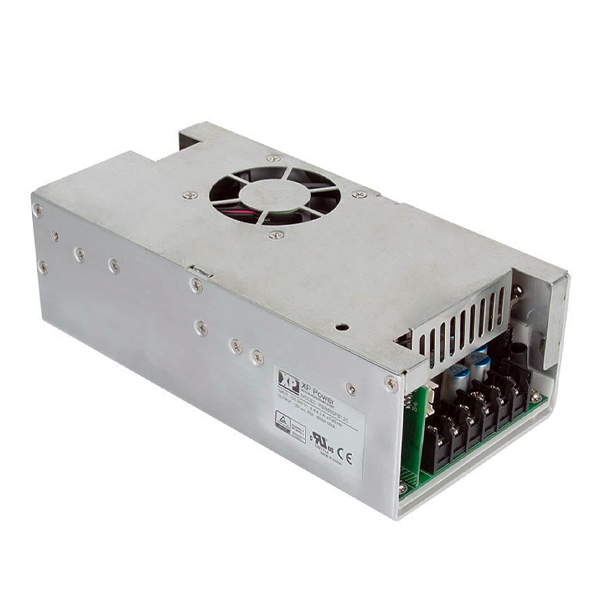

PBR500 Series
Features
- 450-500W forced cooled
- 350-400W convection cooled
- ITE and medical (BF) safety approvals
- U-channel 4” x 7” package
- 5V standby and 12V fan supply
- AC OK, inhibit and remote sense
- Class B conducted and radiated emissions
- 3 year warranty
PBR500 Series, 500 Watts, U Channel or Enclosed, 8 models from 12V to 57V DC Outputs. Medical & ITE Safety Approvals. -

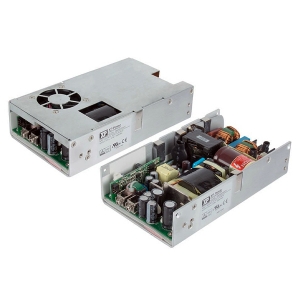

PBR650 Series
Features
- Medical (BF) Safety Approvals
- 4” x 8” Package
- 5V Standby Supply
- AC OK, Inhibit & Remote Sense
- Class B Conducted & Radiated Emissions
- 3 Year Warranty
The PBR650 series of AC-DC switching power supplies, in a package of just 4 x 8 x 2.58 inches, deliver 600-650 watts of continuous power. They are designed for medical applications including those needing BF rated insulation with an operation altitude of up to 5000m. -

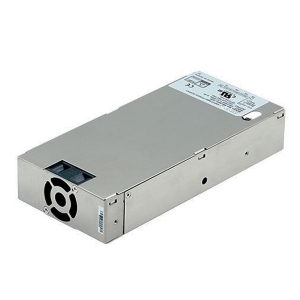

UCH600 Series
Features
- 600W convection cooled
- 8.0” x 5.0” x 1.57” U channel
- Suitable for BF applications
- ITE and medical (BF) approvals
- Class B conducted & radiated emissions
- Power density 9.5W/in³
- High efficiency, up to 95%
- 5V 1.0A standby
- Remote On/Off
- -20°C to +70°C operating temperature
- 3 year warranty
UCH600 Series, 600 Watts, U Channel, 4 models 12V to 48V DC Outputs. Medical & ITE Safety Approvals. -

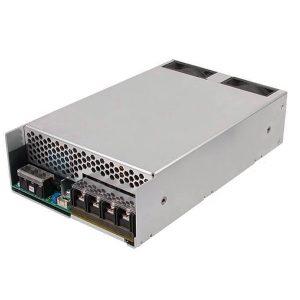

MEU600
Features
- Wide Operating Voltage, 90 to
- 264VAC, 47 to 63 Hz
- Input to Output: 2MOPP
- High ESD Immunity
- Active Power Factor Correction
- Protection: OVP, OLP, OTP, SCP
- Size: 3.94”x8.5”x1.57”
- High Altitude of 5000m
- 3-Year Warranty
MEU600 Series, 600 Watts, Enclosed, 2 models 24V or 48V DC outputs. Medical & ITE Safety Approvals. -

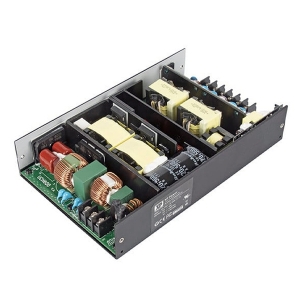

MHP650 Series
Features
- 650W fan cooled
- Regulated single outputs 12V to 48VDC
- Input range 80 to 264VAC
- Medical safety approvals
- Rugged construction
- Variable fan speed for noise reduction
- AC OK, remote On/Ofand active current share
- Screw terminals
- 5VDC 0.5A standby
- 12VDC 0.5A fan supply
- -20°C to +70°C operation
- 3 year warranty
MHP650 Series, 650 Watts, Enclosed, 6 models 12V to 48V DC Outputs. Medical Safety Approvals -
GSP750 Series
Features
- Low profile, compact size
- Suitable for 1U applications
- 900W peak power rating for 100ms
- Universal 80-264VAC input (300VAC for 5s)
- IT/industrial and medical (2 x MOPP) safety approvals
- 5V/3A standby output
- 1.0W standby power
- Intelligent fan speed control
- -40°C to +70°C operation
- PowerFail, inhibit, remote sense and current share
- 3 year warranty
GSP750 Series, 750 Watts, Enclosed, 3 Models, 12V, 24V or 48V DC Outputs. Medical & ITE/Industrial Safety Approvals. -
MHP1000
Features
- 1kW fan cooled/1.2kW highline operation
- 240.9 x 149.8mm footprint, 61.0mm profile
- Regulated single outputs 12V to 48VDC
- Input range 85 to 264VAC
- Medical safety approvals
- Rugged construction
- Variable fan speed for noise reduction
- AC OK, remote On/Ofand active current share
- Screw terminals
- 5VDC/1A standby
- -20°C to +70°C operation
- 3 year warranty
MHP1000 Series, Up to 1200 WattsEnclosed, 6 models 12V to 48V DC Outputs. Medical Safety Approvals. , -

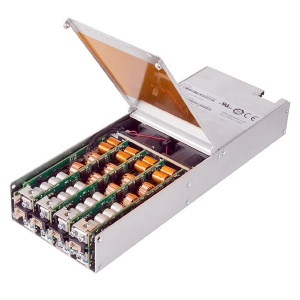

NanoFlex
Features
- Configurable power supply
- Low profile for 1U applications
- Medical and ITE approvals
- Power from 850W at low line to 1200W at high line
- Output voltages from 3V3 to 60V
- Module power up to 300W
- Parallel options for increased versatility
- PMBus digital interface
- Graphical user interface (GUI)
- Optional reverse air fans with no load derating
- SEMI F47 compliant
- 3 year warranty
NanoFlex Series 850-1200Watts. Metal Fan Cooled Enclosure. 90-264VAC Input. Fully configurable modular DC outputs from 3.3V to 60V at up to 40A per module and up to 4 outputs. PMBus digital interface. Medical & ITE Safety Approvals. -

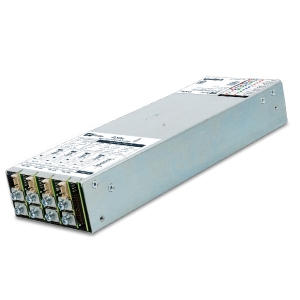

FLXPro
Features
- Up to 23.2W/in³ power density
- Power from 1kW low line to 1.3kW high line
- Full power up to +50°C
- Efficiency up to 93%
- 2 x MOPP isolation for medical applications
- 4 selectable outputs from 9VDC to 66VDC
- Wide output adjustment range
- Fully digital architecture incorporating iPSU Intelligent
- Power technology
- Intuitive UI for configuration, monitoring and control
- Intelligent configurable fan speed
- Medical and ITE approvals
- 3 year warranty
FLXPro Series 1300 Watts. Metal Fan Cooled Enclosure. 85-264VAC Input. Fully configurable modular DC outputs from 9V to 66V at up to 22A per module and up to 4 outputs. Series and parallel configuration. Medical & ITE Safety Approvals.
Total of 46 results
