• Medically Approved DC-DC Converters from 1W to 20W

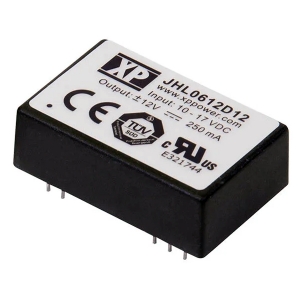

  • JHL06

    Features

    • International Medical Approvals
    • 4000 VAC Reinforced Insulation
    • Meets IEC60601-1, 3rd Edition
    • 2 MOPP Isolation at 250 VAC
    • 2 μA Patient Leakage Current
    • DIP24 Package
    • EN55011 Level A With No External Components
    • 3 Year Warranty
    JHL06 Series 6 Watts. DIP24 plastic package. 10-17V or 20-30V DC Input. Single & dual 5V to 15V regulated output versions. 4kVAC reinforced isolation. Worldwide medical safety approvals.

    Inquiry Info. PDF

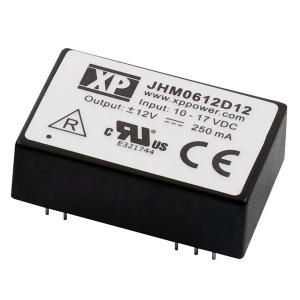

  • JHM06

    Features

    • Regulated single & dual outputs
    • 1.5:1 input range
    • Single outputs 5.0 to 15VDC
    • Dual outputs ±12 & ±15VDC
    • DIP24 package
    • International medical safety approvals
    • 3.0kVAC reinforced isolation
    • 2μA patient leakage current
    • EN55011 Class A with no external components
    • -20°C to +100°C operating temperature
    • Full power to +60°C
    • 3 year warranty
    JHM06 Series 6 Watts. DIP24 plastic package. 10-17V or 20-30V DC Input. Single & dual 5V to 15V regulated output versions. 3kVAC reinforced isolation Worldwide medical safety approvals.

    Inquiry Info. PDF

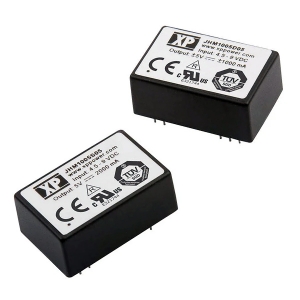

  • JHM10

    Features

    • International Medical Approvals
    • 4000 VAC Reinforced Insulation
    • Meets IEC60601-1
    • 2 μA Patient Leakage Current
    • DIP-24 Package
    • EN55011 Level A With No External Components
    • 3 Year Warranty
    JHM10 Series 10 Watts. DIP24 plastic package. 2:1 5V, 12V or 24V DC Input. Single & dual 5V to 15V regulated output versions. 4kVAC reinforced isolation. Worldwide medical safety approvals.

    Inquiry Info. PDF

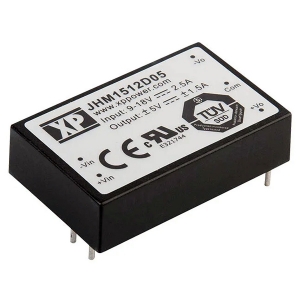

  • JHM15

    Features

    • International Medical Approvals
    • 4000 VAC Reinforced Insulation
    • 2 x MOPP
    • Medical Approval, IEC60601-1, 3rd Edition
    • 2 μA Patient Leakage Current
    • Compact 1 x 1.6” Footprint
    • EN55011 Level A With No External Components
    • 3 Year Warranty
    JHM15 Series 15 Watts. 1.6 x 1” plastic package. 2:1, 12V or 24V DC Input. Single & dual 5V to 15V regulated output versions. 4kVAC reinforced isolation. Worldwide medical safety approvals.

    Inquiry Info. PDF

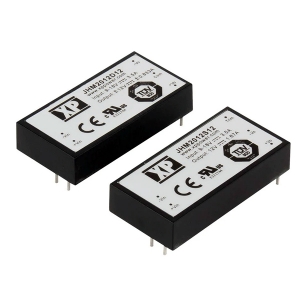

  • JHM20

    Features

    • Regulated single & dual outputs from 5 to 30VDC
    • Single outputs trimmable ±10%
    • 2:1 Input range
    • 2” x 1” footprint PCB mount
    • International medical approvals
    • 4kVAC reinforced isolation
    • 2 x MOPP @ 250VAC working voltage
    • 2.5µA Patient leakage current
    • Medical approval, IEC60601-1, 3rd Edition including risk management
    • EN55011 Class A with no external components
    • -40°C to +80°C operating temperature
    • Full power to +60°C
    • 3 year warranty

    JHM20 Series 20 Watts. 2 x 1” plastic package. 2:1, 12V, 24V or 48V DC Input. Single & dual 5V to 15V regulated output versions. 4kVAC reinforced isolation. Worldwide medical safety approvals.

    Inquiry Info. PDF

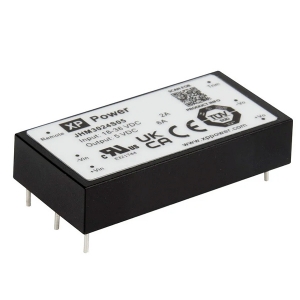

  • JHM30

    Features

    • Regulated single & dual outputs from 5 to 30VDC
    • 2:1 input range
    • Compact 50.8 x 25.4mm (2” x 1”) PCB mount package
    • 10% trim on single output versions
    • IEC60601-1 medical safety agency approvals
    • 4kVAC reinforced isolation
    • 2 x MOPP at 250VAC
    • 2μA patient leakage current
    • EN55011 class A with no external components
    • Short circuit, overload & overvoltage protection
    • -40°C to +80°C operating temperature
    • 3 year warranty
    JHM30 Series 30 Watts. 2 x 1” plastic package. 2:1, 12V, 24V or 48V DC Input. Single & dual 5V to 15V regulated output versions. 4kVAC reinforced isolation. Worldwide medical safety approvals.

    Inquiry Info. PDF

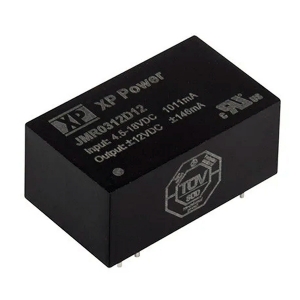

  • JMR03

    Features

    • Regulated single & dual outputs
    • World wide medical certification
    • 4:1 input range
    • Compact DIP16 package
    • 5.0kVAC isolation
    • 2 x MOPP at 250VAC working voltage
    • Remote On/Off
    • -40°C to +90°C operation
    • 3 year warranty
    JMR03 Series 3.5 Watts. DIP16 plastic package. 4:1, 12V, 24V or 48V DC Input. Single & dual 5V to 15V regulated output versions. 5kVAC reinforced isolation. Worldwide medical safety approvals.

    Inquiry Info. PDF

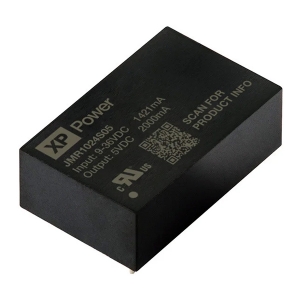

  • JMR10

    Features

    • Regulated single & dual outputs from 5 to 30VDC
    • 4:1 input range
    • Ultra-compact DIP24 PCB mount package
    • Low no-load power
    • 10% trim in single output versions
    • IEC60601-1 medical safety agency approvals
    • 5kVAC reinforced isolation
    • 2 x MOPP at 250VAC
    • 2µA patient leakage current
    • Remote On/Off
    • Short circuit, overload & overvoltage protection
    • -40°C to +100°C operating temperature
    • 3 year warranty
    JMR10 Series 10 Watts. DIP24 plastic package. 4:1, 12V, 24V or 48V DC Input. Single & dual 5V to 15V regulated output versions. 5kVAC reinforced isolation. Worldwide medical safety approvals.

    Inquiry Info. PDF

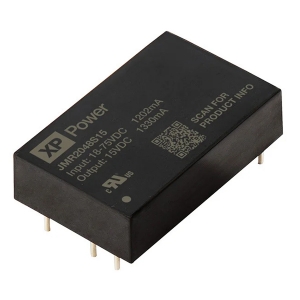

  • JMR20

    Features

    • Regulated single & dual outputs from 5 to 30VDC
    • 4:1 input range
    • Compact 40.6 x 25.4mm (1" x 1.6") PCB mount package
    • Low no-load power
    • 10% trim on single output versions
    • IEC60601-1 medical safety approvals
    • 5kVAC reinforced isolation
    • 2 x MOPP at 250VAC
    • 2µA patient leakage current
    • Remote On/Off
    • Short circuit, overload & overvoltage protection
    • -40°C to +100°C operating temperature
    • 3 year warranty
    JMR20 Series 20 Watts. 1.6 x 1” plastic package. 4:1, 24V or 48V DC Input. Single & dual 5V to 15V regulated output versions. 5kVAC reinforced isolation. Worldwide medical safety approvals.

    Inquiry Info. PDF

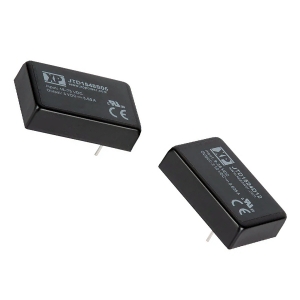

  • JTD15

    Features

    • Regulated single outputs 3.3 to 15VDC
    • Regulated dual outputs ±5, ±12 & ±15VDC
    • 4:1 input range
    • Output trim ±10% for single output models
    • 40.6 x 25.4mm (1.6” x 1”) footprint, 10.4mm (0.41”) profile
    • 3.0kVDC isolation
    • Remote On/Off
    • -40°C to +100°C operating temperature
    • Full power to +70°C
    • 3 year warranty
    JTD15 Series 15 Watts. 1.6 x 1” copper package. 4:1, 24V or 48V DC Input. Single & dual 5V to 15V regulated output versions. 3kVAC reinforced isolation. Worldwide medical safety approvals.

    Inquiry Info. PDF

Total of 21 results
