• Features

    • 40 W Convection Rating
    • 2” by 3” Footprint
    • Low 1.04” Profile
    • High Efficiency
    • Medical, ITE and Household Appliance Approvals
    • Class I & Class II Installations
    • High Power Density
    • Less than 0.3 W No Load Input Power
    • 3 Year Warranty

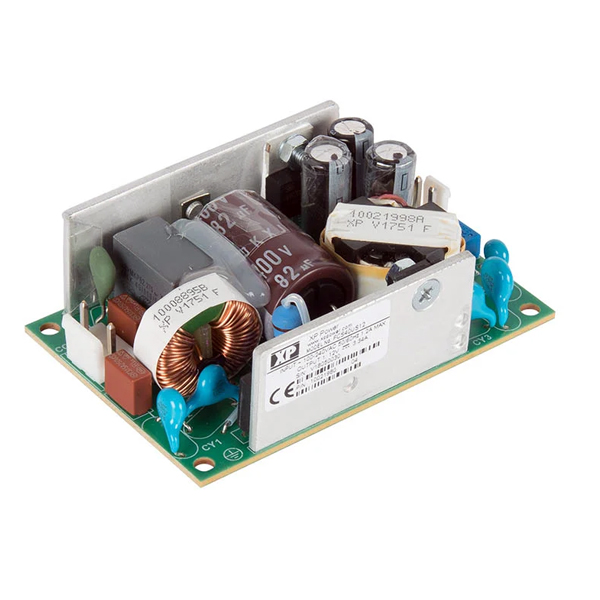

    The FCS40 series is designed to minimize the no load power consumption and maximize efficiency
    to facilitate equipment design to meet the latest environmental legislation. Approved for medical and
    ITE applications in either Class I or Class II installations, this range of single output AC-DC power supplies
    are packaged in a low profile 1.04” height with a foot print of just 2” by 3”. The FCS40 provides up to
    40W convection-cooled over the full 90-264 VAC input range, and operates down to 80 VAC with minimal
    de-rating. The power supply features two AC line fuses and low leakage currents required by medical applications. The low profile, low noise and safety
    approvals covering ITE and medical standards allows the versatile FCS40 series to be used in a wide range of applications.
