Open PCB versions from 5 watts to 550 watts
-
VCE03 Series
Features
- Compact PCB mount SIL package
- Encapsulated & open frame versions
- ITE & household appliance approvals
- Class II operation
- Input range 85 to 305VAC
- Single outputs from 3.3 to 48VDC
- No load input power <0.3W
- Low cost
- -25°C to +70°C operating temperature
- 3 year warranty
VCE03 Series 3 Watts, Open PCB or Encapsulated, 7 Models 3.3V to 48V DC outputs -
VCE05 Series
Features
- Compact size
- Single outputs from 3.3 to 48VDC
- Open frame & encapsulated PCB mount
- <0.3W no load input power
- Peak load capability
- No external components required
- Class II
- Low cost
- 3 year warranty
VCE05 Series 5 Watts, Open PCB or Encapsulated, 7 Models 3.3V to 48V DC outputs -
VCE10 Series
Features
- Compact PCB mount package
- Encapsulated & open frame versions
- ITE & household appliance approvals
- Class II operation
- Input range 85 to 305VAC
- Single outputs from 3.3 to 48VDC
- No load input power <0.3W
- Low cost
- -25°C to +70°C operating temperature
- 3 year warranty
VCE10 Series 10 Watts, Open PCB or Encapsulated, 7 Models 3.3V to 48V DC outputs -
VCE20 Series
Features
- 85 to 305VAC Input
- Single Outputs from 3.3 to 48VDC
- PCB Mount
- Encapsulated & Open Frame
- ITE & Household Appliance Approvals
- EN55035 Immunity Standard
- Class II
- Low Cost
- 3 Year Warranty
VCE20 Series 20 Watts, Open PCB or Encapsulated, 7 Models 3.3V to 48V DC outputs -
VCE40 Series
Features
- Regulated single outputs from 3.3V to 48VDC
- Wide input range 85 to 305VAC
- Encapsulated or open frame PCB mount
- ITE & household appliance approvals
- EN55035 immunity standard
- Class II operation
- No load input power <0.3W
- -25°C to +70°C operating temperature
- 3 year warranty
VCE40 Series 40 Watts, Open PCB or Encapsulated, 7 Models 3.3V to 48V DC outputs -
ECL05
Features
- Single voltage outputs from 3.3V to 48VDC
- Universal input range 85-264VAC
- 3kVAC input to output isolation
- <0.3W no load input power
- EN55032 Class B conducted and radiated emissions
- IEC62368-1 ITE safety agency approvals
- IEC Class II insulation rating
- Overvoltage, overload, and short circuit protection
- -20°C to +70°C operating temperature
- 3 year warranty

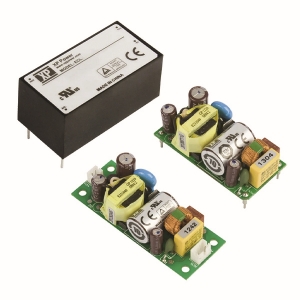

The ECL05 series is a range of single output AC-DC power supplies that delivers 5W of power and offers output voltages ranging from 3.3V to 48V. The ECL05 series can be supplied as PCB mount open frame (suffix -P), PCB mount encapsulated device (suffix -E), or as open frame chassis mount (suffix -T) requiring JST PHR-2 & PHR-3 mating connectors & crimps. The ECL05 has IEC Class II construction and a no-load input power less than 0.3W.
The ECL05 series, with worldwide ITE safety approvals, Class B conducted and radiated emissions, IEC Class II insulation, and 3kVAC isolation, is ideal for a wide range of industrial and analytical instrumentation applications including test and measurement, process control, factory automation, communications and other ITE applications. -
ECL10
Features
- Single voltage outputs from 3.3V to 48VDC
- Universal input range 85-264VAC
- 3kVAC input to output isolation
- <0.3W no load input power
- EN55032 Class B conducted and radiated emissions
- IEC62368-1 ITE safety agency approvals
- IEC Class II insulation rating
- Overvoltage, overload, and short circuit protection
- -20°C to +70°C operating temperature
- 3 year warranty
The ECL10 series is a range of single output AC-DC power supplies that delivers 10W of power and offers output voltages ranging from 3.3V to 48V. The ECL10 series can be supplied as PCB mount open frame (suffix -P), PCB mount encapsulated device (suffix -E), or as open frame chassis mount (suffix -T) requiring JST PHR-2 & PHR-3 mating connectors & crimps. The ECL10 has IEC Class II construction and a no-load input power less than 0.3W.
The ECL10 series, with worldwide ITE safety approvals, Class B conducted and radiated emissions, IEC Class II insulation, and 3kVAC isolation, is ideal for a wide range of industrial and analytical instrumentation applications including test and measurement, process control, factory automation, communications and other ITE applications.
-
ECL15
Features
- Regulated single outputs from 3.3V to 48VDC
- Regulated dual outputs +5V +12VDC, ±12V & ±15VDC
- Regulated triple outputs +5V ±12V & +5V ±15VDC
- Universal input range 85-264VAC
- 3kVAC input to output isolation
- <0.3W no load input power
- EN55032 Class B conducted and radiated emissions
- IEC62368-1 ITE safety agency approvals
- IEC Class II insulation rating
- Overvoltage, overload, and short circuit protection
- -20°C to +70°C operating temperature
- 3 year warranty

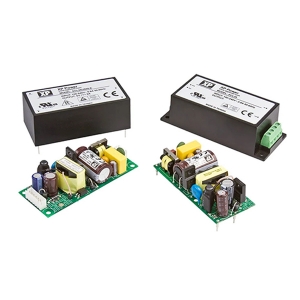

The ECL15 series is a range of single, dual and triple output AC-DC power supplies that delivers 15W of power and offers and dual output voltages ranging from 3.3V to 48V.
The ECL15 series can be supplied as PCB mount open frame (suffix -P), PCB mount encapsulated (suffix -E), open frame chassis mount (suffix -T), or as encapsulated chassis mount with screw terminals (suffix -S) with an optional DIN clip (suffix -SD). The ECL15 has IEC Class II construction and a no-load input power less than 0.3W.
The ECL15 series, with worldwide ITE safety approvals, Class B conducted and radiated emissions, IEC Class II insulation, and 3kVAC isolation, is ideal for a wide range of industrial and analytical instrumentation applications including test and measurement, process control, factory automation, communications and other ITE applications. -
ECL25
Features
- Single voltage outputs from 3.3V to 48VDC
- Universal input range 85-264VAC
- 3kVAC input to output isolation
- <0.3W no load input power
- EN55032 Class B conducted and radiated emissions
- IEC62368-1 ITE safety agency approvals
- IEC Class II insulation rating
- Overvoltage, overload, and short circuit protection
- -20°C to +70°C operating temperature
- 3 year warranty
The ECL25 series is a range of single output AC-DC power supplies that delivers 25W of power and offers output voltages ranging from 3.3V to 48V. The ECL25 series can be supplied as PCB mount open frame (suffix -P), PCB mount encapsulated (suffix -E), open frame chassis mount (suffix -T), or as encapsulated chassis mount with screw terminals (suffix -S) with an optional DIN clip (suffix -SD). The ECL25 has IEC Class II construction and a no-load input power less than 0.3W.
The ECL25 series, with worldwide ITE safety approvals, Class B conducted and radiated emissions, IEC Class II insulation, and 3kVAC isolation, is ideal for a wide range of industrial and analytical instrumentation applications including test and measurement, process control, factory automation, communications and other ITE applications. -
ECL30
Features
- Regulated dual outputs +5V +12VDC, ±12V & ±15VDC
- Regulated triple outputs +5V ±12V & +5V ±15VDC
- 3kVAC input to output isolation
- EN55032 Class B conducted and radiated emissions
- IEC62368-1 ITE safety agency approvals
- IEC Class II insulation rating
- -20°C to +70°C operating temperature
- Overvoltage, overload, and short circuit protection
- 3 year warranty
The ECL30UD/UT series is a range of dual and triple output AC-DC power supplies that delivers 30W of power and offers output voltages ranging from 3.3V to 15V. The ECL30 series can be supplied as PCB mount open frame (suffix -P), PCB mount encapsulated (suffix -E), open frame chassis mount (suffix -T), or as encapsulated chassis mount with screw terminals (suffix -S) with an optional DIN clip (suffix -SD). The ECL30UD/UT has IEC Class II construction and a no-load input power less than 0.3W
The ECL30UD/UT series, with worldwide ITE safety approvals, Class B conducted and radiated emissions, IEC Class II insulation, and 3kVAC isolation, is ideal for a wide range of industrial and analytical instrumentation applications including test and measurement, process control, factory automation, communications and other ITE applications.
