• Features

    • 100 W Convection/130 W Forced-cooled Ratings
    • 2” by 3” Footprint
    • Low 1.1” Profile
    • High Efficiency, up to 95%
    • Medical and ITE Approvals
    • High Power Density
    • Less than 0.5 W No Load Input Power
    • 3 Year Warranty

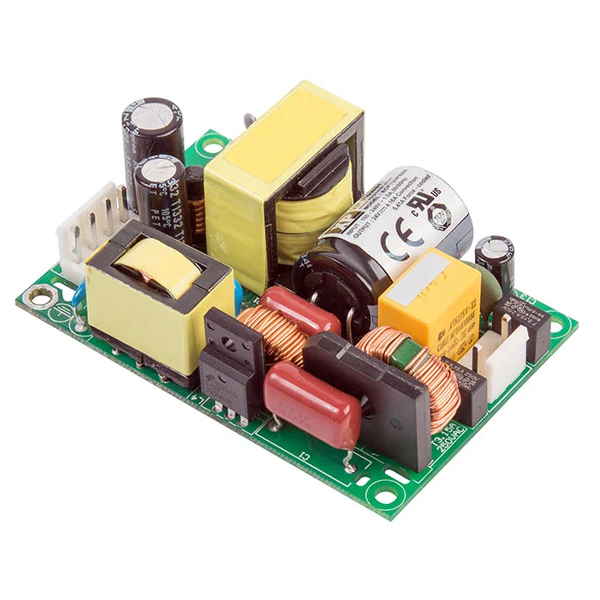

    The ECP130 series is designed to minimize the no load power consumption and maximize efficiency to facilitate equipment design to meet the latest environmental legislation. Approved for medical and ITE applications, this range of single output AC-DC power supplies are packaged in a low profile 1.1” height with a foot print of just 2” by 3”. The ECP130 provides up to 130 W force-cooled or | 100 W convection-cooled leading to very high power densities of 19.7 W/in3 or 15.1 W/in3 respectively. The power supply contains two fuses and low leakage currents as required by medical applications and is safety approved to operate in a 70 °C ambient. The low profile and safety approvals covering ITE and medical standards along with conducted emissions to EN55011/32 level B allow the versatile ECP130 series to be used in a vast range of applications.
