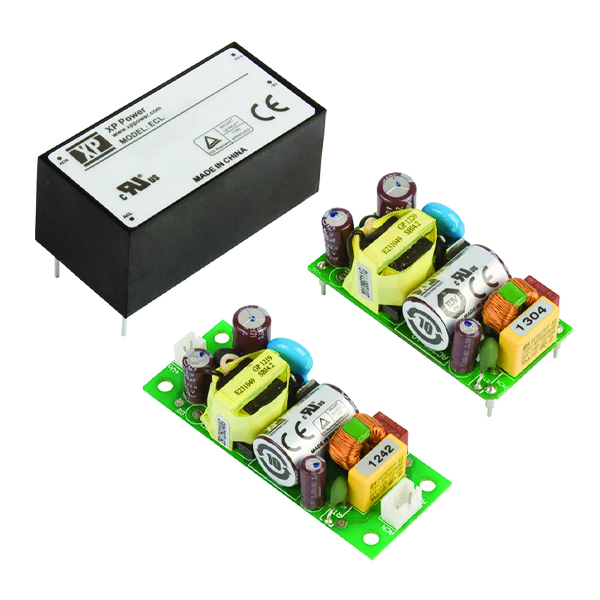

Products AC to DC Converters Low to Medium Power Switch Mode Power Supplies Open PCB versions from 5 watts to 350 watts ECL05 Features Single voltage outputs from 3.3V to 48VDC Universal input range 85-264VAC 3kVAC input to output isolation <0.3W no load input power EN55032 Class B conducted and radiated emissions IEC62368-1 ITE safety agency approvals IEC Class II insulation rating Overvoltage, overload, and short circuit protection -20°C to +70°C operating temperature 3 year warranty The ECL05 series is a range of single output AC-DC power supplies that delivers 5W of power and offers output voltages ranging from 3.3V to 48V. The ECL05 series can be supplied as PCB mount open frame (suffix -P), PCB mount encapsulated device (suffix -E), or as open frame chassis mount (suffix -T) requiring JST PHR-2 & PHR-3 mating connectors & crimps. The ECL05 has IEC Class II construction and a no-load input power less than 0.3W.The ECL05 series, with worldwide ITE safety approvals, Class B conducted and radiated emissions, IEC Class II insulation, and 3kVAC isolation, is ideal for a wide range of industrial and analytical instrumentation applications including test and measurement, process control, factory automation, communications and other ITE applications. PDF Please write down your comment on this product, and click Add to Inquiry List for inquiry Add to Inquiry List Review Inquiry List Back
