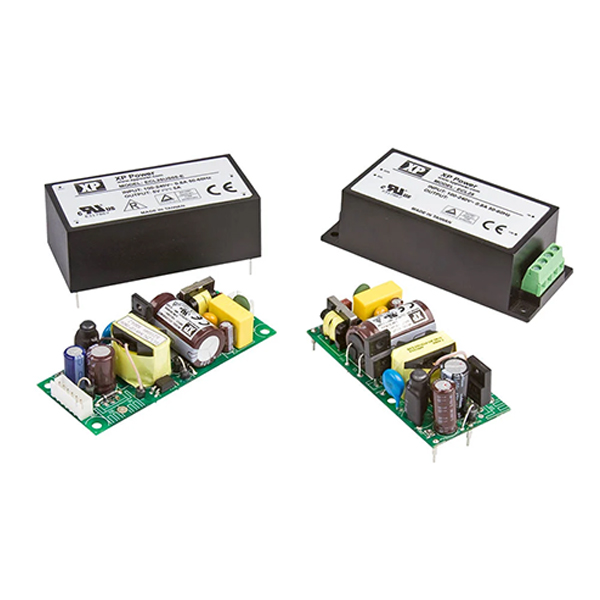

Products AC to DC Converters Low to Medium Power Switch Mode Power Supplies Open PCB versions from 5 watts to 350 watts ECL15 Features Regulated single outputs from 3.3V to 48VDC Regulated dual outputs +5V +12VDC, ±12V & ±15VDC Regulated triple outputs +5V ±12V & +5V ±15VDC Universal input range 85-264VAC 3kVAC input to output isolation <0.3W no load input power EN55032 Class B conducted and radiated emissions IEC62368-1 ITE safety agency approvals IEC Class II insulation rating Overvoltage, overload, and short circuit protection -20°C to +70°C operating temperature 3 year warranty The ECL15 series is a range of single, dual and triple output AC-DC power supplies that delivers 15W of power and offers and dual output voltages ranging from 3.3V to 48V.The ECL15 series can be supplied as PCB mount open frame (suffix -P), PCB mount encapsulated (suffix -E), open frame chassis mount (suffix -T), or as encapsulated chassis mount with screw terminals (suffix -S) with an optional DIN clip (suffix -SD). The ECL15 has IEC Class II construction and a no-load input power less than 0.3W.The ECL15 series, with worldwide ITE safety approvals, Class B conducted and radiated emissions, IEC Class II insulation, and 3kVAC isolation, is ideal for a wide range of industrial and analytical instrumentation applications including test and measurement, process control, factory automation, communications and other ITE applications. PDF Please write down your comment on this product, and click Add to Inquiry List for inquiry Add to Inquiry List Review Inquiry List Back
