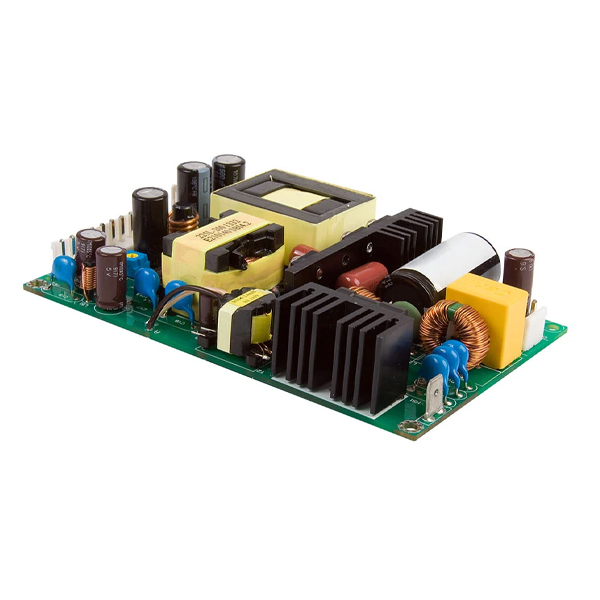

ECP225-A

The ECP225-A series is designed to minimize the no load power consumption and maximize efficiency to facilitate equipment design to meet the latest environmental legislation. Approved for medical (2 x MOPP) industrial electronics & ITE applications, this range of single output AC-DC power supplies are packaged in a low profile 25.4mm height with a footprint of just 127.0 x 76.2mm (5.0” x 3.0”).

The ECP225-A provides up to 225W fan cooled or 150W convection cooled leading to very high power densities. A 5VDC 1A (convection) 5VDC 2A (fan) standby output and a 12VDC 500mA fan supply are included in the design. The power supply contains two fuses and has low leakage current as required for medical applications and is safety approved to operate in a 70°C ambient. The low profile and safety approvals covering ITE and medical standards along with conducted emissions to EN55011/32 level B allow the versatile ECP225-A series to be used in a vast range of applications.
