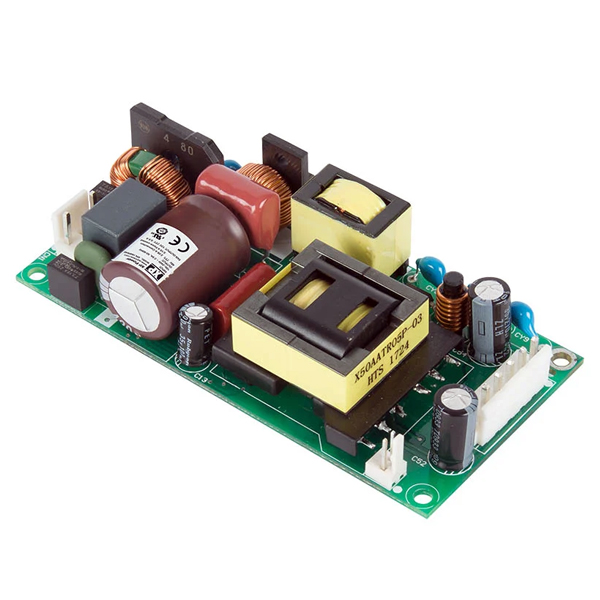

Products AC to DC Converters Low to Medium Power Switch Mode Power Supplies Open PCB versions from 5 watts to 350 watts EPL150 Features 150W fan cooled 100W convection cooled 101.6 x 50.8mm (4” x 2) footprint, 25.1mm profile Regulated single outputs 12 to 48VDC Input range 80 to 264VAC High efficiency – up to 94% Medical (BF) & ITE approvals 4.0kVAC input to output isolation Class I & class II operation <0.5W no load input power 12V/0.5A fan supply -20°C to +70°C operating temperature Full load to +50°C 3 year warranty The EPL150 series maximises efficiency across the load range and minimises no load power consumption minimising heat dissipation, reducing running costs and enabling compliance with the latest environmental goals and legislation.Fully approved as Class I & Class II for ITE, industrial electronics and medical (BF) applications, the EPL150 provides up to 100W when convection cooled and up to 150W when fan cooled at just 283.2 l/m. A 12V 0.5A fan supply is included to support force cooled applications.The small footprint, low profile, low noise and comprehensive safety agency approvals enable this versatile product to be suitable for a wide range of medical (BF), ITE and industrial electronics applications PDF Please write down your comment on this product, and click Add to Inquiry List for inquiry Add to Inquiry List Review Inquiry List Back
