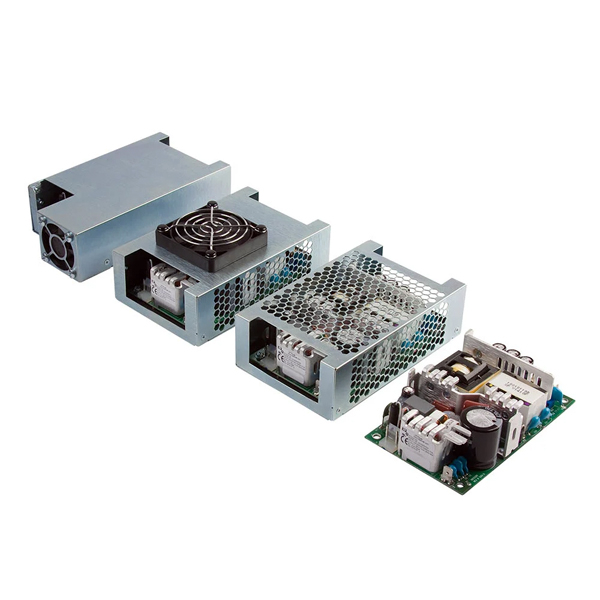

Products AC to DC Converters Low to Medium Power Switch Mode Power Supplies Open PCB versions from 5 watts to 350 watts GCS250 Features Single outputs from 12V to 56VDC Universal 85 to 264VAC input range High efficiency – up to 93% ITE and medical safety approvals (Class I & II) 4kVAC input to output isolation Class B conducted emissions Remote on/off option, 12VDC 0.6A fan supply Overcurrent, overvoltage and short-circuit protection Operating temperature range from -40°C to +70°C The GCS250 is a series of medical AC-DC power supplies with 250W fan cooled and 180W convection rating.Designed to minimize no load power consumption, the GCS250 series of high efficiency, single-output power supplies are packaged in an industry standard 5.0” x 3.0” x 1.42” package making them suitable for medical, industrial, information technology and domestic applications. Class I and Class II versions are available, allowing use in professional healthcare facilities such as hospitals and remotely in patients’ homes or workplaces.With a wide range of international medical safety and ITE approvals, class B compliance for conducted and radiated emissions, very low earth leakage currents, and 2 x MOPP protection, the GCS250 benefits system designers with easy integration into a wide range of applications PDF Please write down your comment on this product, and click Add to Inquiry List for inquiry Add to Inquiry List Review Inquiry List Back
