Open PCB versions from 5 watts to 350 watts
-

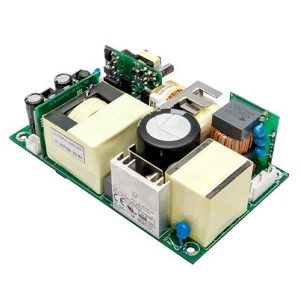

PES300A
Features
- Up to 300 W Force-Cooled Ratings
- 220 W Convection-Cooled
- Low Profile 1.2" with 3"x 5"footprint
- No Load Input Power <0.5 W
- Efficiency up to 94%
- 12V Fan Output
- Optional 5V Standby Output & Remote Control On/Off
- EMI EN55032
- ITE Safety Approval UL/IEC/EN 62368-1
-

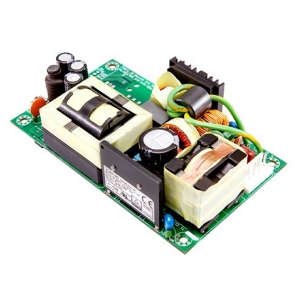

MBU250
Features
- Wide Operating Voltage, 90 to 264 VAC, 47 to 63 Hz
- Single Output
- Protection: OVP, OLP, OTP
- Size: 3”x5”x1.46”
- Input to Output: 2MOPP
- High ESD Immunity
- Suitable Professional Healthcare Facility
- 5-Year Warranty
The MBU250 series of AC/DC switching mode power supplies provide 250 Watts of continuous output power. All models meet FCC Part-18, CISPR-11 and EN55011 class B emission Limits, IEC 60601-1-2 and are designed to comply with UL/cUL, TUV T-mark and conformity assessment in CE marking. All units pass burn-in test at full load condition.
-

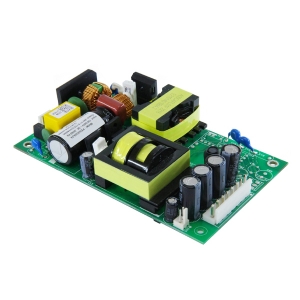

MBU500
Features
- Wide Operating Voltage, 90 to 264 VAC, 47 to 63 Hz
- Single Output
- Protection: OVP, OLP, OTP, OCP
- Size : 3”x5”x1.38”
- Input to Output : 2MOPP
- High Power Density
- Suitable Professional Healthcare Facility
- 5-Year Warranty
The MBU500 series of AC/DC switching mode power supplies provide 508.6 Watts of continuous output power. All models meet FCC Part-18, CISPR-11 and EN55011 emission requirements, IEC 60601-1-2 and are designed to comply with UL/cUL, TUV T-mark and conformity assessment in CE marking. All units pass burn-in test at full load condition.
-

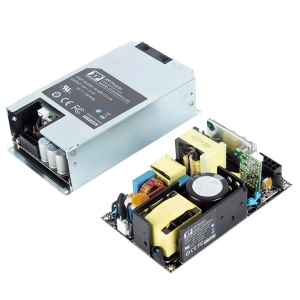

ECH450
Features
- Force cooled and convection cooled ratings
- Medical and ITE approvals
- Compact 3.0” by 5.0” footprint
- Suitable for BF applications
- 5 V standby and remote on/off
- 12 V fan output
- -20 °C to +70 °C operation
- High efficiency, up to 94%
Approved for medical and ITE applications, this range of forced and convection cooled single output AC/DC power supplies are packaged in an ultra compact foot print of just 5.0” by 3.0”. The ECH450 provides up to 450W force cooled and 250W convection cooled leading to very high power densities of 20W/in3. A 12V, 600 mA fan supply is included in the design to faciliate system cooling, along with 5 V/1 A standby output. The power supply contains two fuses and low leakage currents as required by medical applications.
The ECH450 series is designed to minimize the no load power consumption and maximize efficiency to facilitate equipment design to meet the latest environmental legislation and the low profile and safety approvals covering ITE and medical standards along with conducted emissions to EN55011/32 level B allow the versatile ECH450 series to be used in a vast range of applications. -

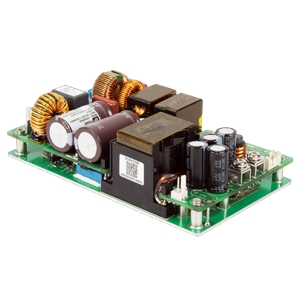

CCP550
Features
- 550W fan cooled, 400W conduction cooled
- Universal, single phase input: 80 to 264VAC
- 127.0 x 76.2mm footprint, 37.5mm profile
- High efficiency, up to 92%
- Low earth leakage <400µA
- Low patient leakage <90µA
- Medical (BF) & ITE safety approvals
- Standard fan supply on all models (excluding 15V)
- Optional 5VDC standby & remote on/off
- 3 year warranty
The CCP550 series of compact single output AC-DC power supplies are designed to operate in convection cooled, conduction cooled, and fan cooled applications with power ratings from 300 to 550W. CCP550 offers high power density in a low profile design, high efficiency, and quiet operation for noise sensitive applications.
CCP550, with Class B conducted emissions, worldwide industrial and medical safety approvals, 2 x MOPP isolation and low leakage currents, is designed for easy integration into a wide range of BF rated medical applications including respiratory care, imaging, patient monitoring, patient treatment, and industrial applications such as process control, test & measurement, and industrial printing.
