• Voltage & Current Programmable Power Supplies from 480W to 5000W

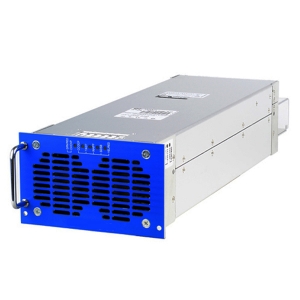

  • CPS-i2000

    Features

    • Optional LAN interface plug & play
    • 3D Heat Dissipation
    • Real time I/V programming
    • Real time I/V-monitoring
    • Reference voltage f. autonomous programming
    • CSB Current Share Bus paralleling 7 units
    • Inhibit for safe interlocking & Remote Shutdown
    • Remote Shutdown
    • Power Good Relay AC-ok and DC-ok
    • Precise dynamics on load change
    • Series & parallel operation up to 100kW
    • EMC conducted class B, radiated class A
    • Efficiency 92-94%
    • PFC Powerfactor 0,99
    • Variable controlled fans from Papst
    • Long lifetime under hard operation
    • Fast down programming option PS
    • Solid 2U and 3U subframes available
    CPS-i2000 Series 2000 Watts.19” 2U or 3U rack mounting. Five output voltage versions available, fully programmable for voltage and current from 0-18VDC 0-165A to 0-150VDC 0-20A.

    Inquiry Info. PDF

  • CPS-i3000

    Features

    • Optional LAN interface plug & play
    • 3D Heat Dissipation
    • Real time I/V programming
    • Real time I/V-monitoring
    • Reference voltage f. autonomous programming
    • CSB Current Share Bus paralleling 7 units
    • Inhibit for safe interlocking & Remote Shutdown
    • Remote Shutdown
    • Power Good Relay AC-ok and DC-ok
    • Precise dynamics on load change
    • Series & parallel operation up to 100kW
    • EMC conducted class B, radiated class A
    • Efficiency 92-94%
    • PFC Powerfactor 0,99
    • Variable controlled fans from Papst
    • Long lifetime under hard operation
    • Fast down programming option PS
    • Solid 2U and 3U subframes available
    CPS-i3000 Series 3000 Watts. 19” 2U or 3U rack mounting. Six output voltage versions available, fully programmable for voltage and current from 0-18VDC 0-185A to 0-300VDC 0-12.5A.

    Inquiry Info. PDF

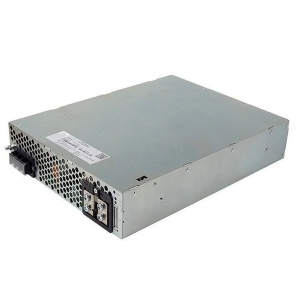

  • HPA1K5

    Features

    • Programmable output voltage (0-105%)
    • Programmable output current (0-110%)
    • High efficiency - up to 93%
    • ITE and medical approvals
    • Parallel operation
    • Analog and digital interfaces
    • Multiple digital protocols - PMBus, CANopen,
    • MODBUS and SCPI
    • Fully featured signals and controls
    • Graphical user interface (GUI)
    • 5V/2A standby supply
    • SEMI F47 compliant
    • 3 year warranty
    HPA1K5 Series 1500 Watts. Metal Fan Cooled Enclosure. Four fully programmable output versions from 0-24VDC @ 0-62.5A to 0-60VDC @ 0-25A. Includes PMBus, CANopen and RS485 interfaces.

    Inquiry Info. PDF

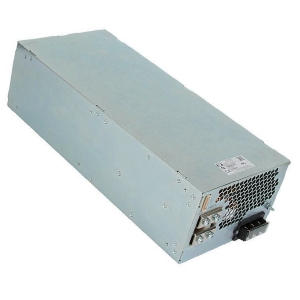

  • HPF3K0

    Features

    • Medical and Information Technology safety approvals
    • Multiple serial data communication protocols:
    • PMBus, CANopen, MODBUS and SCPI
    • Programmable output voltage (0-105%)
    • Programmable output current (0-110%)
    • Intelligent fan speed control
    • Parallel operation
    • High efficiency – up to 93%
    • Analogue and digital interfaces
    • Graphical User Interface
    • 5V/2A housekeeping supply
    • SEMI F47 compliant
    • 3 year warranty
    HPF3K0 Series 3000 Watts. Metal Fan Cooled Enclosure. Four fully programmable output versions from 0-24VDC @ 125A to 0-60VDC @ 0-50A. Includes PMBus, CANopen and RS485 interfaces.

    Inquiry Info. PDF

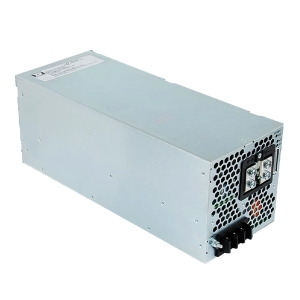

  • HPD4K5

    Features

    • Controllable output voltage
    • <40ms slew rate
    • 3 Phase 180 to 264VAC input
    • High efficiency, up to 90%
    • 5V, 1A standby output
    • Intelligent fan speed control
    • Fully featured signals & controls
    • I˛C interface
    • 0°C to +70°C operating temperature
    • SEMI F47 compliant
    • Full power to +50°C
    • 3 Year Warranty
    HPD4K5 Series 4500 Watts. Metal Fan Cooled Enclosure. Four programmable output versions from 5V to 25VDC @ 0-188A to 15V to 150VDC @ 0-31.5A. PMBus Interface.

    Inquiry Info. PDF

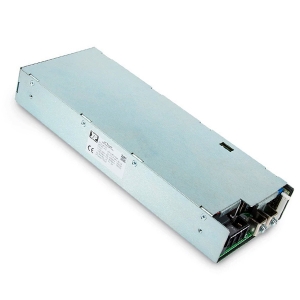

  • HPL5K0

    Features

    • 3 Phase 180 to 264VAC input - 3 wire & earth
    • High efficiency - up to 93%
    • Programmable output voltage (0-105%)
    • Programmable output current (0-110%)
    • Parallel operation
    • Analog and digital interfaces
    • Multiple digital protocols - PMBus, CANopen,
    • MODBUS & SCPI
    • Fully featured signals & controls
    • 5V/2A standby output
    • Graphical user interface (GUI)
    • SEMI F47 compliant
    • 3 year warranty
    HPT5K0 Series 5000 Watts. Metal Fan Cooled Enclosure. Six programmable output versions from 0V to 48VDC @ 0-104A to 0-800VDC @ 6.5A. PMBus, CANopen, Modbus & SCPI protocols.

    Inquiry Info. PDF

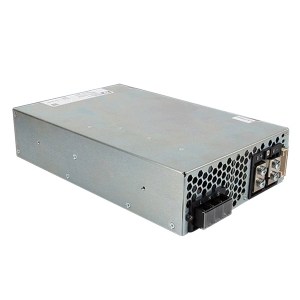

  • HPT5K0

    Features

    • 3 phase 180 to 528VAC input – 3 wire & earth
    • High efficiency – up to 94%
    • Programmable output voltage (0-105%)
    • Programmable output current (0-110%)
    • Active current sharing in parallel configurations
    • Safety interlock
    • PMBus, CANopen, Modbus & SCPI protocols
    • Rich suite oconfigurable signals & controls
    • 5VDC/2A housekeeping supply
    • SEMI F47 compliant
    • 3 year warranty
    HPT5K0 Series 5000 Watts. Metal Fan Cooled Enclosure. Six programmable output versions from 0V to 48VDC @ 0-104A to 0-800VDC @ 6.5A. PMBus, CANopen, Modbus & SCPI protocols.

    Inquiry Info. PDF

  • HPT5K0-L

    Features

    • 3 phase 180 to 528VAC input - 3 wire and earth
    • High efficiency - up to 94%
    • Programmable output voltage (0-105%)
    • Programmable output current (0-110%)
    • Parallel operation
    • Analog and digital interfaces
    • Multiple digital protocols - PMBus, CANopen, MODBUS and SCPI
    • Fully featured signals and controls
    • 5V/2A standby output
    • Graphical user interface (GUI)
    • SEMI F47 compliant
    • 3 year warranty
    HPT5K0-L Series 5000 Watts. Metal Fan Cooled Enclosure Four programmable output versions from 0V to 48VDC @ 0-104A to 0-200VDC @ 0-25A. PMBus, CANopen and RS484 Interfaces.

    Inquiry Info. PDF

Total of 28 results
