• High Density AC-DC Modules

  • ASB75

    Features

    • 75W baseplate cooled
    • Complete AC-DC power supply
    • No external components required
    • Low profile ½ brick package
    • Universal input 90 to 264VAC
    • High efficiency - up to 90%
    • <0.15W no load input power
    • Overcurrent, overvoltage and overtemperature protection
    • Optional heatsink available
    • -40 to +85°C baseplate temperature
    • 3 year warranty
    ASB75 Series 75 Watts, Industry Standard Half Brick Module, 90-264VAC Input, 5 output versions from 12V to 48V DC. No external components required. Built in EMC filter and AC fuse

    Inquiry Info. PDF

  • ASB110

    Features

    • 110W baseplate cooled
    • Complete AC-DC Power Supply
    • No extra components required
    • -40 to +85°C baseplate temperature
    • Low profile in full brick package
    • High efficiency - up to 91%
    • Universal input
    • <0.3W no load input power
    • Optional heatsink available
    • Overcurrent, overvoltage and overtemperature protection
    • 3 year warranty
    ASB110 Series 110 Watts, Industry Standard Full Brick Module, 90-264VAC Input, 6 output versions from 12V to 48V DC. No external components required. Built in EMC filter and AC fuse

    Inquiry Info. PDF

  • ASB160

    Features

    • Complete AC-DC power supply
    • No extra components required
    • Baseplate cooled full brick package
    • Low profile
    • Input range 90 to 264VAC
    • Single outputs from 12 to 54VDC
    • Output voltage trim ±5%
    • High efficiency - up to 93%
    • Over current, over voltage and over temperature protection
    • Optional heatsink available
    • -40 to +90°C baseplate operating temperature
    • 3 year warranty
    ASB160 Series 160 Watts, Industry Standard Full Brick Module, 90-264VAC Input, 6 output versions from 12V to 54V DC. No external components required. Built in EMC filter and AC fuse

    Inquiry Info. PDF

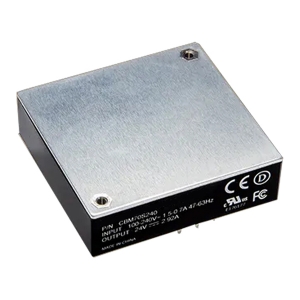

  • CBM70S

    Features

    • Universal Input Range 90~264Vac
    • Efficiency up to 89.5%
    • Meets Class I
    • No Load Input Power Consumption<150mW
    • Safety IEC/EN/UL 62368-1 Approval Ed 3.0
    • Operating Altitude 5000m
    • Continuous Short Circuit Protection
    • Over Temperature Protection
    • Over Voltage Protection
    • 17mm Ultra Low Profile Half Brick Package
    • Full Load with Baseplate Cooled and No Fan Required
    • Built-in EN 55032 Class B Filter
    • All in One Without External Components
    • Wide Operating Temperature Range
    CBM70S Series 70 Watts, Industry Standard Half Brick Module, 90-264VAC Input, 4 output versions from 12V to 48V DC. No external components required. Built in EMC filter and AC fuse

    Inquiry Info. PDF

  • CBM101S

    Features

    • Universal Input Range 90~264Vac
    • Efficiency up to 89.5%
    • Meets Class I
    • No Load Input Power Consumption<150mW
    • Safety IEC/EN/UL 62368-1 Approval Ed 3.0
    • Universal Input Range 90~264Vac
    • High Efficiency up to 94.5%
    • Class I
    • No Load Input Power Consumption<0.5W
    • Peak Power Operation up to 120Watt for 5s
    • Approval IEC/EN/UL 62368-1
    • Approval EN 55032 and CISPR/FCC Class B
    • Operating Altitude 5000m
    • Continuous Short Circuit Protection
    • Over Voltage Protection
    • Over Temperature Protection
    • Low Inrush Current < 8.5A
    • 17mm Ultra Low Profile Package
    • Full Load without Heat Sink
    • No Fan Required
    • Built-in EMI Filters Bulk Capacitor and Output Capacitors
    • Wide Operating Temperature Range
    CBM101S Series 100 Watts, Industry Standard Full Brick Module, 90-264VAC Input, 5 output versions from 12V to 48V DC. No external components required. Built in EMC filter and AC fuse

    Inquiry Info. PDF

  • CBM150S

    Features

    • Universal Input Range 90~264Vac
    • High Efficiency up to 93%
    • Class I
    • No Load Input Power Consumption<0.5W
    • 54V No Load Input Power Consumption<0.7W
    • Approval IEC/EN/UL 62368-1
    • Approval EN 55032 and CISPR/FCC Class B
    • Operating Altitude 5000m
    • Continuous Short Circuit Protection
    • Over Voltage Protection
    • 19.7mm Ultra Low Profile Package
    • Full Load with Baseplate Cooled and No Fan Required
    • Build-in EMI Filters Bulk Capacitor and Output Capacitors
    • High Power Density 17.4W/Inches3
    • Wide Operating Temperature Range
    CBM150S Series 150 Watts, Industry Standard Full Brick Module, 90-264VAC Input, 6 output versions from 12V to 54V DC. No external components required. Built in EMC filter and AC fuse

    Inquiry Info. PDF

  • CBM300S

    Features

    • Universal Input Range 90~264Vac
    • High Efficiency up to 94%
    • Class I
    • No Load Input Power Consumption<0.5W
    • Peak Power Operation up to 360Watt for 5s
    • Approval IEC/EN/UL 62368-1
    • Approval EN 55032 and CISPR/FCC Class B
    • Operating Altitude 5000m
    • Continuous Short Circuit Protection
    • Over Voltage Protection
    • 19.7mm Ultra Low-Profile Package
    • Full Load with Baseplate Cooled and No Fan Required
    • Build in EMI Filters Bulk Capacitor and Output Capacitors
    • High Power Density 24.95W/Inches3
    • Wide Operating Temperature Range
    • Wide Operating Temperature Range
    CBM300S Series 300 Watts, 85 x 116.8mm Brick Module, 90-264VAC Input, 7 output versions from 12V to 54V DC. No external components required. Built in EMC filter and AC fuse.

    Inquiry Info. PDF

  • PDF700S

    Features

    • Universal Input Range 90~264Vac
    • Efficiency up to 91.5%
    • Full Brick Size
    • Class I
    • Approval Safety IEC/EN/UL 62368-1
    • Operating Altitude 5000m
    • Remote On/Off
    • Over Temperature Protection
    • Over Voltage Protection
    • Continuous Short Circuit Protection
    • Baseplate Cooling
    • Compliance to CE101/CE102/RE101 of MIL-STD-461
    PDF700 Series 700 Watts, Industry Standard Full Brick Module, 90-264VAC Input, 5 output versions from 12V to 56V DC. External components required for EMC filtering.

    Inquiry Info. PDF

Total of 8 results
