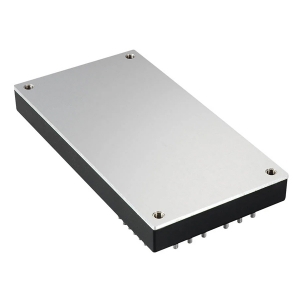

• High Density Base Plate Cooled DC-DC

  • QSB400

    Features

    • Regulated single outputs 5V to 48VDC
    • 4:1 input ranges 9V to 36VDC & 18V to 75VDC
    • Baseplate cooled full brick package
    • 1.5kVDC isolation
    • Output trim ±10%
    • Remote sense
    • Remote On/Of
    • -40°C to +100°C operating temperature
    • 3 year warranty
    QSB400 Series 400 Watts. Industry Standard full brick package. 4:1 24V or 48V DC Input. Single output versions from 5V to 48V DC. 1.5kVDC isolation. Remote On/Off

    Inquiry Info. PDF

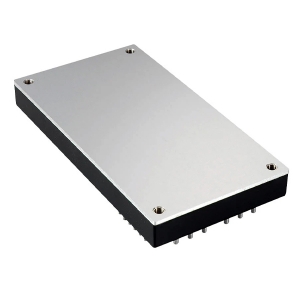

  • QSB600

    Features

    • Regulated single outputs 5V to 48VDC
    • Baseplate cooled full brick package
    • 1.5kVDC isolation
    • Output trim 60% to 110%
    • Remote sense
    • Remote On/Of
    • -40°C to +100°C operating temperature
    • 3 year warranty
    QSB600 Series 600 Watts. Industry Standard full brick package. 2:1 24V or 48V DC Input. Single output versions from 12V to 48V DC. 1.5kVDC isolation. Remote On/Off

    Inquiry Info. PDF

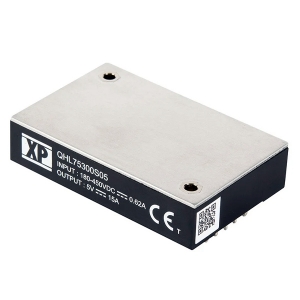

  • QHL75

    Features

    • 180 - 450VDC Input Range
    • Baseplate cooled
    • Industry standard ¼ brick package
    • Regulated single outputs from 5 to 48VDC
    • Output voltage trim ±20% (5V: -20%/+10%)
    • 3.0kVAC reinforced isolation
    • Efficiency up to 90%
    • Short circuit, overvoltage & overtemperature protection
    • Remote On/Off
    • -40°C to +105°C operating temperature
    • 3 year warranty
    QHL75 Series 75 Watts. Industry Standard quarter brick package. 180-450V DC Input. Single output versions of 5V to 48V DC. 3kVAC reinforced isolation. Wide output adjustability. Remote On/Off.

    Inquiry Info. PDF

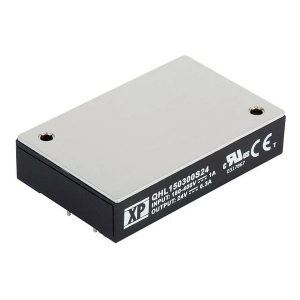

  • QHL150

    Features

    • Regulated single outputs from 12 to 48VDC
    • Output voltage trim -20%/+10%
    • 180 to 425VDC input range
    • 3.0kVAC isolation
    • Industry standard 1/4 brick package
    • Baseplate cooled
    • High efficiency up to 90%
    • ITE safety approvals
    • Short circuit, overvoltage & overtemperature
    • protection
    • Remote On/Off
    • -40°C to +100°C operating temperature
    • 3 year warranty
    QHL150 Series 150 Watts. Industry Standard quarter brick package. 180-425V DC Input. Single output versions of 5V to 48V DC. 3kVAC reinforced isolation. Wide output adjustability. Remote On/Off.

    Inquiry Info. PDF

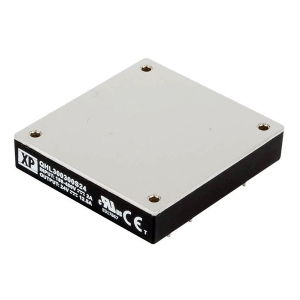

  • QHL300

    Features

    • Regulated single outputs from 5 to 48VDC
    • Output voltage trim -20%/+10%
    • 180 to 425VDC input range
    • 3.0kVAC isolation
    • Industry standard ½ brick package
    • Baseplate cooled
    • High efficiency up to 90%
    • ITE safety approvals
    • Short circuit, overvoltage & overtemperature
    • protection
    • Remote On/Off
    • -40°C to +100°C operating temperature
    • 3 year warranty
    QHL300 Series 300 Watts. Industry Standard half brick package. 180-425V DC Input. Single output versions of 5V to 48V DC. 3kVAC reinforced isolation. Wide output adjustability. Remote On/Off.

    Inquiry Info. PDF

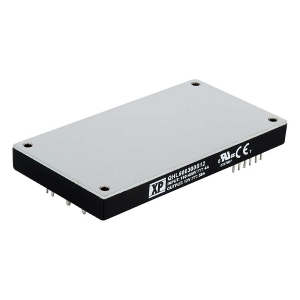

  • QHL600

    Features

    • Regulated single outputs from 12 to 48VDC
    • Output voltage trim -40%/+10%
    • 180 to 425VDC input range
    • 3.0kVAC isolation
    • Industry standard full brick package
    • Baseplate cooled
    • High efficiency up to 90%
    • ITE safety approvals
    • Short circuit, overvoltage & overtemperature protection
    • Current share and power good signals
    • Remote On/Off
    • -40°C to +100°C operating temperature
    • 3 year warranty
    QHL600 Series 600 Watts. Industry Standard full brick package. 180-425V DC Input. Single output versions of 12V, 24V or 48V DC. 3kVAC reinforced isolation. Wide output adjustability. Remote On/Off.

    Inquiry Info. PDF

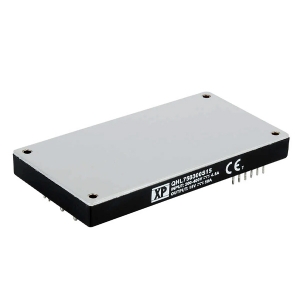

  • QHL750

    Features

    • Regulated single outputs from 12 to 48VDC
    • Output voltage trim -40%/+10%
    • 200 to 425VDC input range
    • 3.0kVAC isolation
    • Industry standard full brick package
    • Baseplate cooled
    • High efficiency up to 90%
    • ITE safety approvals
    • Short circuit, overvoltage & overtemperature protection
    • Current share and power good signals
    • Remote On/Off
    • -40°C to +85°C operating temperature
    • 3 year warranty
    QHL750 Series 750 Watts. Industry Standard full brick package. 200-425V DC Input. Single output versions of 12V, to 48V DC. 3kVAC reinforced isolation. Wide output adjustability. Remote On/Off.

    Inquiry Info. PDF

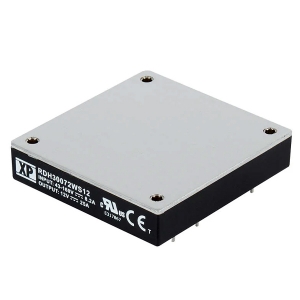

  • RDH300

    Features

    • Wide 4:1 Input Range
    • 72 & 110 VDC Nominal Inputs for Rail Applications
    • Complies with EN50155
    • Meets EN50121-3-2
    • Single Output
    • Industry Standard 1/2 Brick
    • -40 °C to +100 °C Operation
    • 3000 VDC Isolation
    • Output Trim ±10%
    • Remote On/Off and Remote Sense
    • 3 Year Warranty
    RDH300 Series 300 Watts. Industry Standard half brick package. 43-160V DC Input for Railway Applications. Single output versions from 5V to 48V DC. 3000VDC isolation. Remote On/Off.

    Inquiry Info. PDF

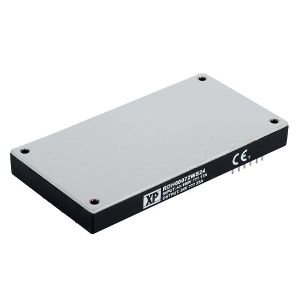

  • RDH600

    Features

    • Wide 4:1 Input Range
    • Covers 72 & 110VDC for Rail Applications
    • Complies with EN50155
    • Meets EN50121-3-2
    • Single Output
    • Industry Standard Full Brick
    • -40°C to +100°C Operation
    • Output Trim 60-110%
    • Remote On/Off
    • 3 Year Warranty
    RDH600 Series 600 Watts. Industry Standard full brick package. 43-160V DC Input for Railway Applications. Single output versions from 12V to 48V DC. 3000VDC isolation. Remote On/Off.

    Inquiry Info. PDF

Total of 29 results
