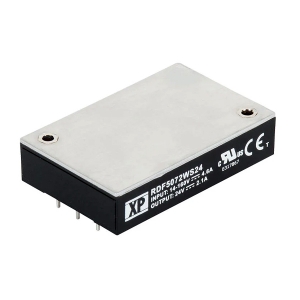

• High Density Base Plate Cooled DC-DC

  • RDF50

    Features

    • Single voltage outputs from 5V to 48VDC
    • Wide output voltage trim and remote sense
    • 10:1 ultra-wide input range 16 to 160VDC
    • Industry standard quarter brick format
    • High efficiency, up to 89%
    • 3kVAC reinforced input to output isolation
    • ITE safety approvals and EN50155 compliance
    • Remote On/Off and remote sense
    • -40°C to +100°C operating temperature
    • Overvoltage, overload, and short circuit protection
    • 3 year warranty
    RDF50 Series 50 Watts. Industry Standard quarter brick package. Ultra-wide 16-160V DC Input. Single output versions from 5V to 48V DC. 3kVAC reinforced isolation. Meets EN50155 transport standards.

    Inquiry Info. PDF

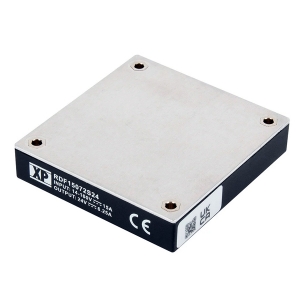

  • RDF150

    Features

    • Single voltage outputs from 5V to 48VDC
    • Wide output voltage trim and remote sense
    • 12:1 ultra-wide input range 14 to 160VDC
    • Industry standard halbrick format
    • High efficiency, up to 90%
    • 3kVAC reinforced input to output isolation
    • ITE safety approvals and EN50155 compliance
    • Remote On/Ofwith low 15mA stand-by current
    • Overvoltage, overload, and short circuit protection
    • -40°C to +100°C operating case temperature
    • 3 year warranty
    RDF150 Series 150 Watts. Industry Standard half brick package. Ultra-wide 14-160V DC Input. Single output versions from 5V to 48V DC. 3kVAC reinforced isolation. Meets EN50155 transport standards.

    Inquiry Info. PDF

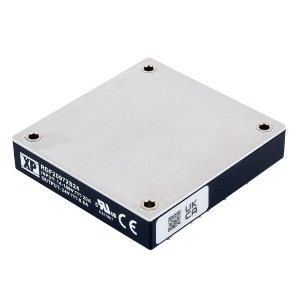

  • RDF200

    Features

    • Single voltage outputs from 12V to 48VDC
    • Wide output voltage trim and remote sense
    • 12:1 ultra-wide input range 14 to 160VDC
    • Industry standard halbrick format
    • High efficiency, up to 90%
    • 3kVAC reinforced input to output isolation
    • ITE safety approvals and EN50155 compliance
    • Remote On/Ofwith low 15mA stand-by current
    • Overvoltage, overload, and short circuit protection
    • -40°C to +100°C operating case temperature
    • 3 year warranty
    RDF200 Series 200 Watts. Industry Standard half brick package. Ultra-wide 14-160V DC Input. Single output versions from 12V to 48V DC. 3kVAC reinforced isolation. Meets EN50155 transport standards.

    Inquiry Info. PDF

  • QSB75

    Features

    • Regulated single outputs 3.3V to 24VDC
    • 4:1 input ranges 9V to 36VDC & 18V to 75VDC
    • Baseplate cooled 1/4 brick package
    • 1.5kVDC isolation
    • Output trim ±10%
    • Remote sense
    • Remote On/Of
    • -40°C to +100°C operating temperature
    • 3 year warranty
    QSB75 Series 75 Watts. Industry Standard quarter brick package. 4:1 24V or 48V DC Input. Single output versions from 3.3V to 24V DC. 1.5kVDC isolation. Remote On/Off

    Inquiry Info. PDF

  • QSB100

    Features

    • Regulated single outputs 3.3V to 24VDC
    • 4:1 input ranges 9V to 36VDC & 18V to 75VDC
    • Baseplate cooled ¼ brick package
    • 1.5kVDC isolation
    • Output trim ±10%
    • Remote sense
    • Remote On/Of
    • -40°C to +100°C operating temperature
    • 3 year warranty
    QSB100 Series 100 Watts. Industry Standard quarter brick package. 4:1 24V or 48V DC Input. Single output versions from 3.3V to 24V DC. 1.5kVDC isolation. Remote On/Off

    Inquiry Info. PDF

  • QSB150

    Features

    • Regulated single outputs 3.3V to 24VDC
    • 4:1 input ranges 9V to 36VDC & 18V to 75VDC
    • Baseplate cooled ½ brick package
    • 1.5kVDC isolation
    • Output trim ±10%
    • Remote sense
    • Remote On/Of
    • -40°C to +100°C operating temperature
    • 3 year warranty
    QSB150 Series 150 Watts. Industry Standard half brick package. 4:1 24V or 48V DC Input. Single output versions from 3.3V to 24V DC. 1.5kVDC isolation. Remote On/Off

    Inquiry Info. PDF

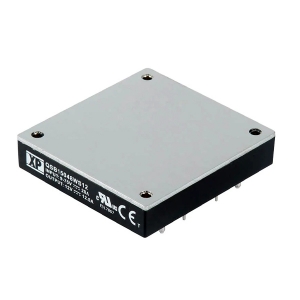

  • QSB15048W

    Features

    • Regulated single outputs 12V to 48VDC
    • 8:1 input range 9V to 75VDC
    • Baseplate cooled ½ brick package
    • 1.5kVDC isolation
    • Output trim ±10%
    • Remote sense
    • Remote On/Of
    • -40°C to +100°C operating temperature
    • 3 year warranty
    QSB15048W Series 150 Watts. Industry Standard half brick package. 8:1 9-75V DC Input. Single output versions from 12V to 48V DC. 1.5kVDC isolation. Remote On/Off

    Inquiry Info. PDF

  • QSB200

    Features

    • Regulated single outputs 5V to 48VDC
    • 4:1 input ranges 10V to 36VDC & 18V to 75VDC
    • Baseplate cooled ½ brick package
    • 1.5kVDC isolation
    • Output trim ±10%
    • Remote sense
    • Remote On/Of
    • -40°C to +100°C operating temperature
    • 3 year warranty
    QSB200 Series 200 Watts. Industry Standard half brick package. 4:1 24V or 48V DC Input. Single output versions from 3.3V to 48V DC. 1.5kVDC isolation. Remote On/Off

    Inquiry Info. PDF

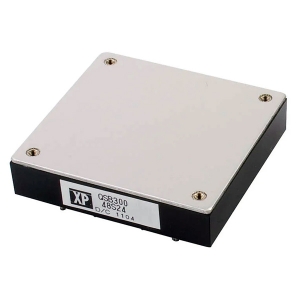

  • QSB300

    Features

    • Regulated single outputs 5V to 48VDC
    • 4:1 input ranges 9V to 36VDC & 18V to 75VDC
    • Baseplate cooled ½ brick package
    • 350W peak power for 3s
    • 1.5kVDC isolation
    • Output trim ±10%
    • Remote sense
    • Remote On/Of
    • -40°C to +100°C operating temperature
    • 3 year warranty
    QSB300 Series 300 Watts. Industry Standard half brick package. 4:1 24V or 48V DC Input. Single output versions from 5V to 48V DC. 1.5kVDC isolation. Remote On/Off

    Inquiry Info. PDF

  • QSB350

    Features

    • Regulated single outputs 3.3 to 48VDC
    • 2:1 input ranges 18 to 36VDC & 36 to 75VDC
    • Baseplate cooled ½ brick package
    • 1.5kVDC isolation
    • Output trim ±10%
    • Remote sense
    • Remote On/Of
    • -40°C to +100°C operating temperature
    • 3 year warranty
    QSB350 Series 350 Watts. Industry Standard half brick package. 2:1 24V or 48V DC Input. Single output versions from 3.3V to 48V DC. 1.5kVDC isolation. Remote On/Off

    Inquiry Info. PDF

Total of 29 results
