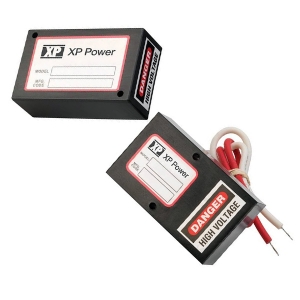

High Voltage DC-DC
-
E Series
Features
- Output Voltages from 100V to 12kV
- Output Voltage Proportional to Input
- Low Turn-on Voltage 0.7VDC
- Input to Output Isolation
- Dual Output
- No Minimum Load
- 3 Year Warranty
E Series 3 Watts, compact plastic package, 12V or 15V DC Input depending on version, Single output versions from 0-100V to 0-12kV, dual output versions from ±150V to ±4000V. Output programming V directly proportional to input V. -

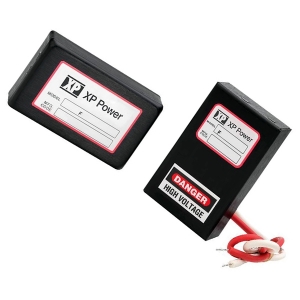

F Series
Features
- Output voltages from 100V to 12kV
- Output voltage proportional to input
- Low turn-on voltage 0.7VDC
- Input to output isolation
- Dual output option
- Arc and short circuit protected
- No minimum load
- 3 year warranty
F Series 10 Watts, compact plastic package, 12V or 15V DC Input depending on version, Single output versions from 0-200V to 0-12kV, dual outputs from ±100V to ±6000V. Output programming V directly proportional to input V. -

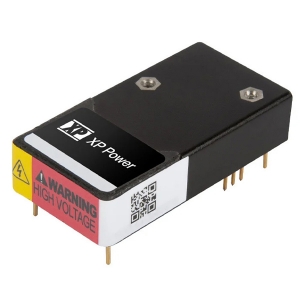

FS Series
Features
- Output voltages from 200V to 6kV
- Output voltage proportional to input
- Low turn-on voltage 0.7VDC
- Input to output isolation <2.5kVDC
- Low profile 0.5”
- Dual output option
- Arc and short circuit protected
- Overtemperature and overvoltage protection with auto shutdown
- No minimum load
- 3 year warranty
FS Series 10 Watts, compact plastic and metal case, 12V, 15V, 24V or 28V DC input depending on output, single output versions from 0-200V to 0-6000V, dual output versions from ±100V to ±1000V. Output programming V directly proportional to input V. -

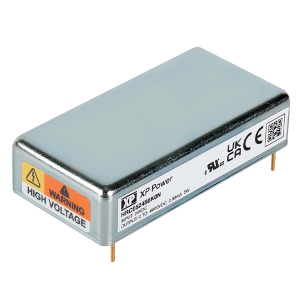

HRC Seris
Features
- +24VDC input (22 to 30V)
- Voltage outputs from 600V to 6kV
- 0 to 100% programmable output voltage
- Voltage and current monitor output
- On-board +5V reference
- Load and line regulation <0.01%
- Low ripple <0.01%
- Short circuit, arc and overload protections
- UL62368 and UL61010 approvals
- Operating temperature: -40°C to +70°C
- 3 year warranty
HRC Series 5 Watts, compact metal case, 22V-30V DC input, 0-5V DC programming input. Output versions from 0-600V to 0-6000V -

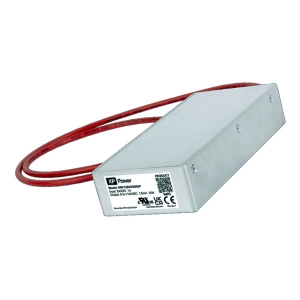

HRF Series
Features
- Output voltages up to 15kV
- Output ripple as low as 0.001%
- Stability as low as 10ppm/hr, 25ppm/8hrs
- Temperature coefficient o25ppm/°C
- +24VDC input voltage
- Output voltage and current regulated
- 0 to 100% programmable output voltage and current
- Voltage and current control and monitoring
- Digital communication via PMBus
- Arc, short circuit and overload protections
- Intuitive UI for easy configuration
- Black Box reporting
- UL61010 and 62368 approved
- Operating temperature: 0°C to +50°C (ambient)
- 3 year warranty
HRF Series 15 Watts, compact metal case, 24V DC Input, programming via PMBus. Output versions 0-10kV to 0-15kV. Very high stability. -

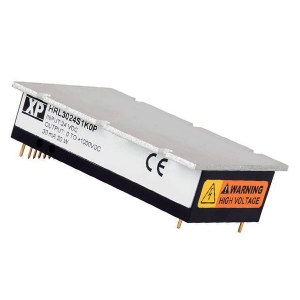

HRL Series
Features
- +24VDC input (22 to 30V)
- Output voltage and current regulated
- 10 to 100% programmable output voltage and current
- Voltage and current monitor outputs
- Operating temperature: -40°C to +70°C
- Short circuit, arc, and overload protections
- On-board +5V reference
- Efficiency >80%
- Output ripple as low as 0.01%
- Premier thermal performance
- UL 60950 and 62368 approved
- 3 year warranty
HRL30 Series 30 Watts, baseplate cooled module, 24V DC Input, Analogue DC programming, Output versions 0-200V to 0-6000V -

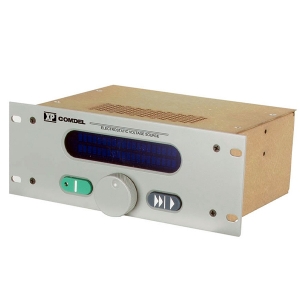

ESC Seris
Features
- Output Voltage Range: 1kV–15kV
- Single Output and Bipolar Models
- Input to Output Isolation: >500MΩ
- Automatic Polarity Reversal
- Automatic Discharge
- Short Circuit and Open Circuit Protection
- Built-in RF Filtering Available
- Analog / RS232 / DeviceNet (option)
ESC Series Electrostatic High Voltage Source, Rack Mounting Package, 24V DC Input, Output voltage versions 1kV to 15kV. Bipolar and Unipolar versions. RS232 or DeviceNET protocols.
Total of 17 results
