AC-DC High Voltage

Features

• Output voltages up to 60kV
• 0 to 100% programmable voltage and current
• Local, analog and RS232/USB digital control, Ethernet is optional
• Single phase AC input, selectable
• Output voltage and current regulated
• Automatic crossover between constant kV/ constant mA operation
• Voltage and current monitor outputs
• Operating temperature: -20°C to +40°C, no derating
• Short circuit, arc quench, arc count, overload and thermal protection
• Efficiency >85%
• Low ripple <0.02% RMS orated voltage at full load
• 3 year warranty

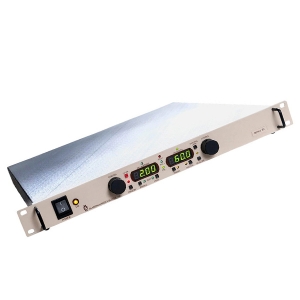

Features

• Output voltages 0-1kVDC to 0-60kVDC 1U 19" rack mount
• RS232/USB control & monitor standard, Ethernet is optional
• Output voltage & current regulated
• Low ripple <0.02% RMS orated voltage at full load
• Voltage & current monitor outputs
• Single phase AC input
• Efficiency >85%
• Air Insulated
• Short circuit, arc & overload protection
• CE marked for EMC, low voltage (LVD) & RoHS directives
• Operating temperature: -20°C to +40°C
• 3 year warranty

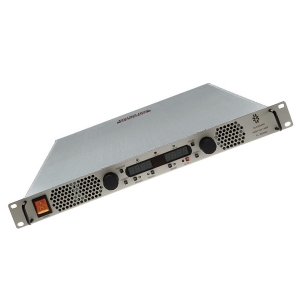

Features

• Output voltages up to 60kV
• 0 to 100% programmable voltage and current
• Analog and RS232 digital control, Ethernet optional
• Compact 1U 19” rack-mount
• 90VAC to 264VAC input
• Output voltage and current regulated
• Voltage and current monitoring
• Positive, negative or reversible polarity
• Efficiency >85%
• Low ripple
• Short circuit, arc quench, arc count, overload and thermal protection
• CE marked for EMC, low voltage (LVD) and RoHS directives
• 3 year warranty

Features

• Universal Input. Continuous oper ation over the input voltage range of 90 VAC to 264 VAC, with active power factor correction. (Power is linearly derated to 90 % from 100 VAC to 90 VAC.)
• Floating Output. Either output terminal may be grounded for oper ation as a positive or negative sup ply.
• Embedded Microcontroller con trol. Front panel digital encoders provide high resolution local adjust ment of voltage and current pro gram. Integral RS-232, RS-485, and USB communications provide remote control program and moni tor with 12 bit accuracy.
• Remote Analog Interface. User selectable 0-5V or 0-10V analog pro gramming and monitors.
• Field Strappable Parallel Operation. Up to 4 identical sup plies may be operated in parallel with user configurable master and active current sharing.
• Zero Space Stacking. 1U rack mount supplies may be stacked with no space required between sup plies.
• Low Ripple. Ripple is less than 0.05% RMS of rated voltage at full load up to 1 MHz. Total ripple and noise is less 0.2% p-p of rated volt age up to 20 MHz
• Constant Voltage/Constant Current Operation. Automatic crossover from constant-voltage to constant-current regulation provides protection against overloads, arcs, and short circuits.
• Constant Current/Current Trip. A rear panel switch allows selection of either current mode.
• Cooling. Fan speed control is adjusted automatically as a function of operating temperature. This reduces noise and extends fan life.
• Warranty. All power supplies are warranted for one year. A formal warranty statement is available.

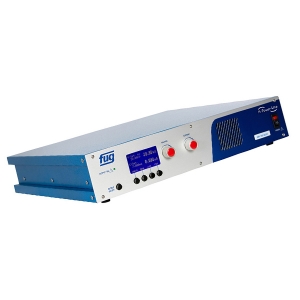

Features

• 0-10kV,0-30kVand0-50kVoutputmodels
• SinglephaseACinputwithactivePFC
• 2U19”rackmount
• Multi-functioncontrolpanelwithuserfriendlyinterface
• LANandUSBinterfacesarestandard
• Highefficiency–85%to90%
• Lowripple≤0.1%pk-pk
• CEmarked,EN61010-1safetycompliant
• Shortcircuit&arcprotection
• Integratedarccounter
• HVReleasesocketforintegrationofshutdowncircuits
• Variablefanspeedforquietoperation
• Operatingtemperature:0to+40°C
• 2yearwarranty

Features

• 0-10kV, 0-30kV and 0-50kV output models
• Single phase AC input with active PFC
• 2U 19” rack mount
• Multi-function control panel with user friendly interface
• LAN and USB interfaces are standard
• High efficiency – 85% to 90%
• Low ripple ≤0.1% pk-pk
• CE marked, EN61010-1 safety compliant
• Short circuit & arc protection
• Integrated arc counter
• HV Release socket for integration of shut down circuits
• Variable fan speed for quiet operation
• Operating temperature: 0 to +40°C
• 2 year warranty

Features

• 0-3kV, 0-10kV, 0-30kV and 0-50kV output models
• Single phase AC input with active PFC
• 2U 19” rack mount
• Multi-function control panel with user friendly interface
• LAN and USB interfaces are standard
• High efficiency – 85% to 90%
• Low ripple ≤0.1% pk-pk
• CE marked, EN61010-1 safety compliant
• Short circuit & arc protection
• Integrated arc counter
• HV Release socket for integration of shut down circuits
• Variable fan speed for quiet operation
• Operating temperature: 0 to +40°C
• 2 year warranty

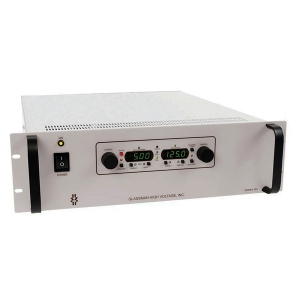

Features

• Output voltages 0-70kVDC to 0-125kVDC
• 3U 19" rack mount
• RS232/USB control & monitor standard, Ethernet is optional
• Output voltage & current regulated
• Low ripple <0.03% RMS orated voltage at full load
• Voltage & current monitor outputs
• Single phase AC input
• Efficiency >85%
• Air Insulated
• Short circuit, arc & overload protection
• CE marked for EMC, low voltage (LVD) & RoHS directives
• Operating temperature: -20°C to +40°C
• 3 year warranty

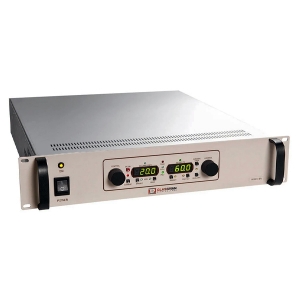

Features

• Output voltages 0-1kVDC to 0-60kVDC
• 2U 19" rack mount
• RS232/USB control & monitor standard, Ethernet is optional
• Output voltage & current regulated
• Low ripple <0.03% RMS orated voltage at full load
• Voltage & current monitor outputs
• Single phase AC input
• Efficiency >85%
• Air Insulated
• Short circuit, arc & overload protection
• CE marked for EMC, low voltage (LVD) & RoHS directives
• Operating temperature: -20°C to +40°C
• 3 year warranty

Features

• Arc Quench. The HV output is inhibited for a short period after each load arc to help extinguish the arc.
• Arc Count. Internal circuitry constantly senses and integrates arcs that occur over a given time. In the event a system or load arcing problem develops and exceeds fac tory-set parameters, the power supply will cycle off in an attempt to clear the fault and then automatically restart after a pre set “off dwell time”
• Pulse-Width Modulation. Off-the-line pulse-width modulation provides high efficiency and a reduced parts count for improved reliability.
• Embedded Microcontroller control. Front panel digital encoders provide high resolution local adjustment of voltage and current program. Integral RS-232, USB and optional ethernet communications provide remote control program and monitor.
• Low Ripple. Typically, ripple is less than 0.025% RMS of rated voltage at full load. Air Insulated. The ET Series features “air” as the primary dielectric medium. No oil or encapsulation is used to impede ser viceability or increase weight.
• Constant Voltage/Constant Current Operation. Automatic crossover from constant-voltage to constant-current reg ulation provides protection against over loads, arcs, and short circuits.
• Redundant Thermal Overload Protection. Thermostats and fan RPM sensing shut down the power supply due to over temperature or reduced fan speeds.
• Tight Regulation. Voltage regulation is better than 0.005% for allowable line and load variations. Current regulation is bet ter than 0.1% from short circuit to rated voltage.
• Constant Current/Current Trip. A rear panel switch allows selection of either cur rent mode.
• Slow Start. Adjustable ramp time from 0 -30 seconds. Output ramps from 0 V to pro grammed voltage level.
• Warranty. All power supplies are warranted for one year. A formal warranty statement is available.
