• High Voltage DC-DC

  • Q Series

    Features

    • Output voltages from 100VDC to 10,000VDC
    • Output proportional to input
    • 0.7VDC turn-on voltage
    • Wide operating temperature range
    • Short circuit protection
    • Low ripple <1%
    • 500VDC input to output isolation
    • No minimum load
    • 3 year warranty
    Q Series 0.5 Watts, Ultra Miniature Plastic Package, 5V,12V,15V or 24V DC Input, Output models from 0-100V to 0-10,000V DC. Output programming V directly proportional to input V.

    Inquiry Info. PDF

  • C Series

    Features

    • +12VDC input (11.5 to 16V)
    • Voltage regulated
    • Output voltages from 100V to 8000V
    • 0 to 100% programmable output
    • High reliability 2.6MHrs MTBF
    • <50ppm/°C temperature coefficient
    • Shielded case for low EMI
    • Low ripple - down to 0.002%
    • 3 year warranty
    C Series 1 Watt, Compact Metal Package, 12V DC Input, Output models from 0-100V to 0-8000V DC. 0-100% programmable via a 0-5V DAC compatible programming input.

    Inquiry Info. PDF

  • CA Series

    Features

    • 5V and 12V input models
    • Precision voltage regulated
    • Output voltages from 100V to 2000V
    • 0 to 100% programmable output
    • On-board voltage reference
    • Operating temperature -10°C to +50°C
    • <25ppm/°C temperature coefficient
    • Shielded case with isolated case ground
    • Ultra low ripple, down to 5ppm
    • 3 year warranty

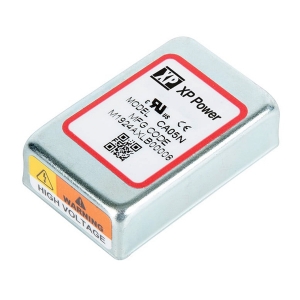

    CA Series 1 Watt, Compact Metal Package, 5V or 12V DC Input. Positive or Negative output versions from 0-200V to 0-2000V DC. Fully programmable from 0 to 100% via a DAC compatible programming input.

    Inquiry Info. PDF

  • CA-T Series

    Features

    • Operating Temperature -55°C to +70°C
    • Precision Voltage Regulated
    • Output Voltages from 100V to 2000V
    • 5V and 12V Input Models
    • 0 to 100% Programmable Output
    • On-board Voltage Reference
    • Temperature Coefficient <25ppm/°C
    • Shielded Case with Isolated Case Ground
    • Ultra Low Ripple, down to 5ppm
    • 3 Year Warranty
    CA-T Series 1 Watt, Compact Metal Package, 5V or 12V DC Input, Positive or Negative output versions from 0-200V to 0-2000V DC. Fully programmable from 0 to 100% via a DAC compatible programming input.

    Inquiry Info. CA-T Series

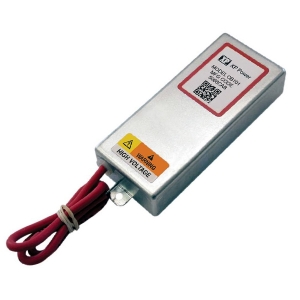

  • CB Series

    Features

    • Precision Voltage Regulated
    • Output Voltages up to 10kV
    • 0 to 100% Programmable Output
    • Voltage & Current Monitors
    • On-board Voltage Reference
    • Operating Temperature -10°C to +60°C
    • Temperature Coefficient <50ppm/°C
    • Shielded Case with Isolated Case Ground
    • 3 Year Warranty
    CB Series 1 Watt, Compact Metal Package, 11.5V to 16V DC Input, Positive or Negative 0-10kV DC output versions. Fully programmable from 0 to 100% via a 0-5V DAC compatible programming input.

    Inquiry Info. PDF

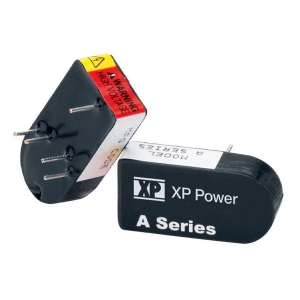

  • A Series

    Features

    • Output voltages from 100V to 6000V
    • Output proportional to input
    • 0.7VDC turn-on voltage
    • Extremely low profile <0.25”
    • Input to output isolation
    • Short circuit protection
    • Control pin
    • No minimum load
    • 3 year warranty
    A Series 1Watt, Ultra miniature plastic and metal case, 5V, 12V or 24V DC Input, Positive or Negative output versions from 0-100V to 0-6000V DC. Output programming V directly proportional to input V.

    Inquiry Info. PDF

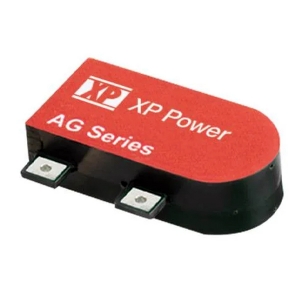

  • AG Series

    Features

    • Output voltages from 100V to 6000V
    • Output proportional to input
    • 0.7VDC turn-on voltage
    • Extremely low profile <0.25”
    • Surface mount
    • Input to output isolation
    • Short circuit protection
    • Control pin
    • No minimum load
    • 3 year warranty
    AG Series 1-1.5 Watt, Ultra miniature plastic and metal case, 5V, 12V or 24V DC Input, Positive or Negative output versions from 0-100V to 0-6000V DC. Output programming V directly proportional to input V.

    Inquiry Info. PDF

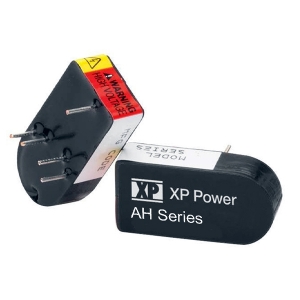

  • AH Series

    Features

    • Output voltages from 100V to 6000V
    • Output proportional to input
    • 0.7VDC turn-on voltage
    • Extremely low profile <0.25”
    • Input to output isolation
    • Short circuit protection
    • Control pin
    • No minimum load
    • 3 year warranty
    AH Series 1.5 Watts, Ultra miniature plastic and metal case, 5V, 12V or 24V DC Input, Positive or Negative output versions from 0-100V to 0-6000V DC. Output programming V directly proportional to input V.

    Inquiry Info. PDF

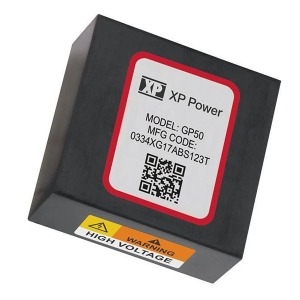

  • GP Series

    Features

    • Output voltages from 200V to 6kV
    • Output voltage proportional to input
    • Low turn-on voltage 0.7VDC
    • Input to output isolation
    • No minimum load
    • 3 year warranty
    GP Series 1 Watt, 38.1 x 38.1 plastic package, 12V DC Input, Output models from 0-200V to 0-6000V DC. Output programming V directly proportional to input V.

    Inquiry Info. PDF

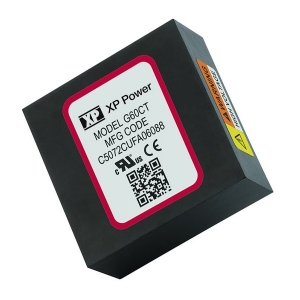

  • G Series

    Dual output models
    G Series 1.5 Watts, 38.1 x 38.1 plastic package, 12V DC Input, Single output models from 0-100V to 0-6000V, dual output models from ±50V to ±3000V. Output programming V directly proportional to input V.

    Inquiry Info. PDF

Total of 17 results
