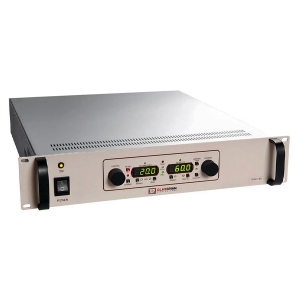

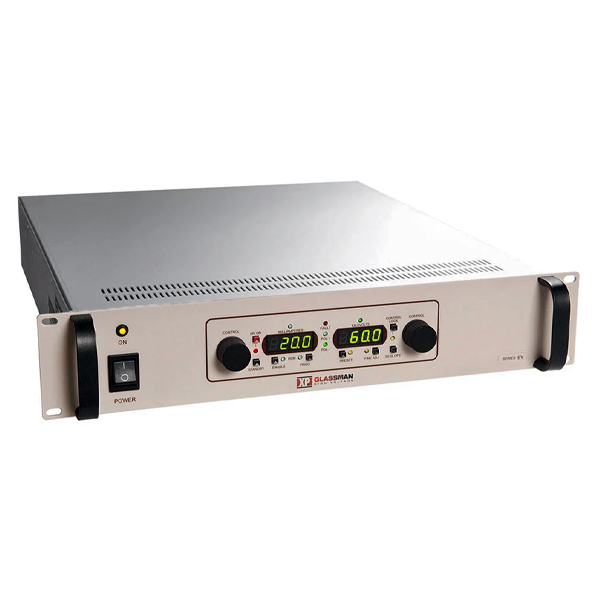

ET Series

Features

• Arc Quench. The HV output is inhibited for a short period after each load arc to help extinguish the arc.
• Arc Count. Internal circuitry constantly senses and integrates arcs that occur over a given time. In the event a system or load arcing problem develops and exceeds fac tory-set parameters, the power supply will cycle off in an attempt to clear the fault and then automatically restart after a pre set “off dwell time”
• Pulse-Width Modulation. Off-the-line pulse-width modulation provides high efficiency and a reduced parts count for improved reliability.
• Embedded Microcontroller control. Front panel digital encoders provide high resolution local adjustment of voltage and current program. Integral RS-232, USB and optional ethernet communications provide remote control program and monitor.
• Low Ripple. Typically, ripple is less than 0.025% RMS of rated voltage at full load. Air Insulated. The ET Series features “air” as the primary dielectric medium. No oil or encapsulation is used to impede ser viceability or increase weight.
• Constant Voltage/Constant Current Operation. Automatic crossover from constant-voltage to constant-current reg ulation provides protection against over loads, arcs, and short circuits.
• Redundant Thermal Overload Protection. Thermostats and fan RPM sensing shut down the power supply due to over temperature or reduced fan speeds.
• Tight Regulation. Voltage regulation is better than 0.005% for allowable line and load variations. Current regulation is bet ter than 0.1% from short circuit to rated voltage.
• Constant Current/Current Trip. A rear panel switch allows selection of either cur rent mode.
• Slow Start. Adjustable ramp time from 0 -30 seconds. Output ramps from 0 V to pro grammed voltage level.
• Warranty. All power supplies are warranted for one year. A formal warranty statement is available.
