• DC-DC Converters PCB mounting

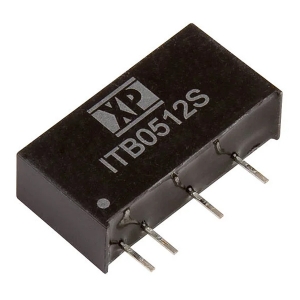

  • ITB01

    Features

    • Semi-regulated single output
    • ±10% input range
    • Single outputs 5.0 to 15VDC
    • SIP7 package
    • 1.5kVDC isolation
    • Class B conducted & radiated emissions
    • -40°C to +105°C operation
    • Full load to 95°C
    • 3 year warranty
    ITB01 Series 1 Watt, SIP7 plastic package, 5V, 12V or 24V DC ±10% Input, Single semi regulated 5V, 12V or 15V DC output versions. 1.5kVDC isolation.

    Inquiry Info. PDF

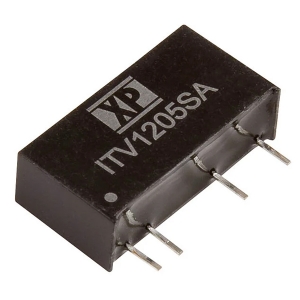

  • ITV

    Features

    • Unregulated single & dual outputs
    • ±10% input range
    • Single outputs 5.0 to 15VDC
    • Dual outputs ±5.0 to ±15VDC
    • SIP7 package
    • 3.0kVDC functional isolation
    • Class B radiated emissions
    • -40°C to +105°C operating temperature
    • Full power to +95°C
    • 3 year warranty
    ITV Series 1 Watt, SIP7 plastic package, 5V, 12V or 24V DC ±10% Input, Single & dual unregulated 5V, 12V or 15V DC output versions. 3.0kVD isolation.

    Inquiry Info. PDF

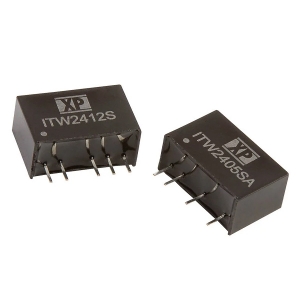

  • ITW01

    Features

    • Regulated single & dual outputs
    • 2:1 input range
    • Single outputs 5.0 to 24VDC
    • Dual outputs ±12 & ±15VDC
    • SIP6 package
    • 1.5kVDC isolation
    • No minimum load
    • -40°C to +105°C operating temperature
    • Full power to +85°C
    • 3 year warranty
    ITW01 Series 1 Watt, SIP6 plastic package, 2:1 5V, 12V, 24V or 48V DC Input, Single & dual regulated output version of 5V to 24V DC. 1.5kVDC isolation.

    Inquiry Info. PDF

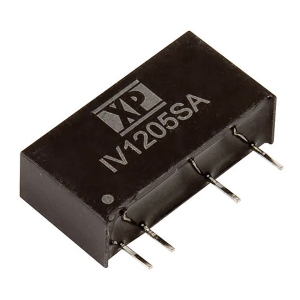

  • IV

    Features

    • Unregulated single outputs
    • ±10% input range
    • Single outputs 3.3 to 24VDC.
    • SIP7 or DIP14 package
    • 3.0kVDC isolation, 4.0 & 6.0kVDC options
    • -40°C to +85°C operating temperature
    • 3 year warranty
    IV Series 1 Watt, SIP7 or DIP14 plastic package, 5V, 12V or 24V DC ±10% Input, Single & unregulated 3.3V to 24V DC output versions. 3.0kVDC isolation, 4 & 6kVDC optional.

    Inquiry Info. PDF

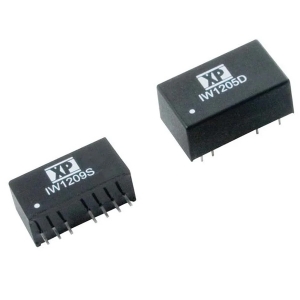

  • IW

    Features

    • f Regulated single outputs
    • f 2:1 input range
    • f Single outputs 3.3 to 24VDC
    • f SIP8 or DIP16 package
    • f 1.0kVDC isolation, 3.0kVDC option
    • f Continuous short circuit protection
    • f Remote On/Off option (SIP models)
    • f -40°C to +100°C operating temperature
    • f Full load to +85°C
    • f 3 year warranty
    IW Series 1 Watt, SIP8 or DIP16 plastic package, 2:1 5V,12V, 24V or 48V DC Input, Single regulated output versions from 3.3V to 24V DC. 1.0kVDC isolation, 3.0kVDC optional. Remote On/Off

    Inquiry Info. PDF

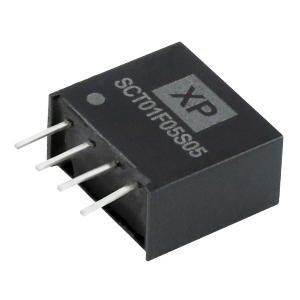

  • SCT01F

    Features

    • Single unregulated outputs from 3.3V to 15VDC
    • ±10% input range
    • Nominal inputs 3.3V to 24VDC
    • Compact SIP4 package
    • 1kVDC isolation, 2kVDC option
    • UL62368-1 & IEC62368-1 safety approvals
    • Continuous short circuit protection
    • -40°C to +95°C operating temperature
    • 3 year w
    SCT01F Series 1 Watt, SIP4 plastic package, 3.3V, 5V, 12V or 24V DC ±10% Input, Single unregulated output versions from 3.3V to 15V DC. 1kVDC isolation, 2kVDC optional.

    Inquiry Info. PDF

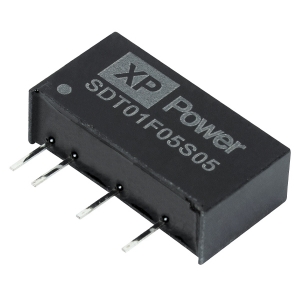

  • SDT01F

    Features

    • Single & dual unregulated outputs 3.3V to
    • 15VDC
    • ±10% input range
    • Nominal inputs 3.3V to 24VDC input range
    • Compact SIP7 package
    • 1.5kVDC isolation
    • UL62368-1 & IEC62368-1 safety approvals
    • Continuous short circuit protection
    • -40°C to +105°C operating temperature
    • 3 year warranty
    SDT01F Series 1 Watt, SIP7 plastic package, 3.3V, 5V, 12V or 24V DC ±10% Input, Single and dual unregulated output versions from 3.3V to 15V DC. 1.5kVDC isolation.

    Inquiry Info. PDF

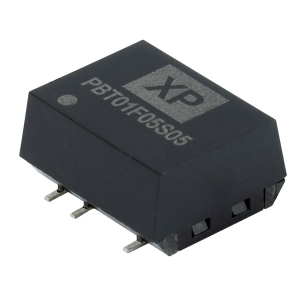

  • PBT01F

    Features

    • Single & dual unregulated outputs 3.3V to
    • 15VDC
    • ±10% input range
    • Nominal inputs 3.3V to 24VDC
    • SMD8 single output & SMD10 dual output
    • 1kVDC isolation, 2kVDC & 3kVDC options
    • UL62368-1 & IEC62368-1 safety approvals
    • Continuous short circuit protection
    • Tape & reel option
    • -40°C to +105°C operating temperature
    • 3 year warranty
    PBT01F Series 1 Watt, SMD8 plastic package, 3.3V, 5V, 12V, 15V or 24V DC ±10% Input, Single and dual unregulated output versions from 3.3V to 15V DC. 1kVDC isolation, 2 & 3kVDC optional.

    Inquiry Info. PDF

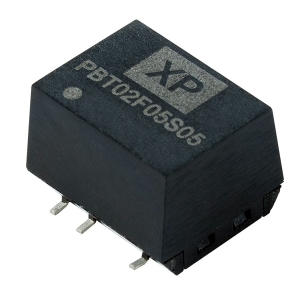

  • PBT02F

    Features

    • Single & dual unregulated outputs 3.3V to
    • 15VDC
    • ±10% input range
    • Nominal inputs 3.3V to 24VDC
    • SMD8 single output & SMD10 dual output
    • 1kVDC isolation, 3kVDC options
    • UL62368-1 & IEC62368-1 safety approvals
    • Continuous short circuit protection
    • Tape & reel option
    • -40°C to +95°C operating temperature
    • 3 year warranty
    PBT02F Series 2 Watts, SMD8 & SMD10 plastic package, 3.3V, 5V, 12V, 15V or 24V DC ±10% Input, Single and dual unregulated output versions from 5V to 15V DC. 1kVDC isolation, 3kVDC optional

    Inquiry Info. PDF

  • ISM01 Series

    Features

    • International medical safety approvals
    • Single & dual unregulated outputs
    • Compact SMD package
    • 4kV VAC isolation reinforced
    • 2 x MOPP at 250 VAC
    • 2 μA patient leakage current
    • Operating temperature -40 °C to +105 °C
    • Full load to 85°C convection
    • Tape & reel package available
    • Optional water washable versions
    • 3 year warranty
    The ISM01 provides a compact cost effective SMD solution for healthcare applications providing 2 MOPP and IEC60601-1 compliance. Features include a high operating temperature, low leakage current, reinforced insulation and short circuit protection.

    Inquiry Info. PDF

Total of 121 results
