• DC-DC Converters PCB mounting

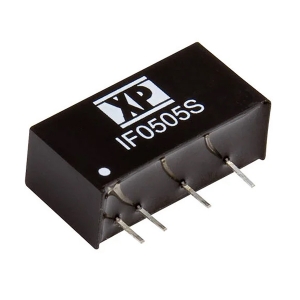

  • IF

    Features

    • Regulated single output
    • ±10% input range
    • Single outputs 3.3 to 15VDC
    • SIP7 or DIP14 package
    • 1.0kVDC isolation, 3.0kVDC optional
    • Low ripple & noise
    • -40°C to +85°C operating temperature
    • 3 year warranty
    IF Series 0.25 Watt, SIP7 or DIP14 plastic package, 5V, 12V or 24V DC ±10% Input, Single regulated DC output versions from 3.3V to 15V. 1.0kVDC isolation, 3.0kVDC optional

    Inquiry Info. PDF

  • IK Series

    Features

    • Single Output
    • SIP or DIP Package
    • 1000 VDC Isolation
    • Optional 3000 VDC Isolation
    • Small Package Sizes
    • 40 °C to +85 °C Operation
    • 3 Year Warranty

    Inquiry Info. PDF

  • IA Series

    Features

    • Dual Output
    • SIP or DIP Package
    • Industry Standard Pinout
    • 1000 VDC Isolation
    • Operating Temperature -40 °C to +85 °C
    • MTBF >1.1 MHrs
    • 3 Year Warranty

    Inquiry Info. PDF

  • IE Series

    Features

    • Single Output
    • SIP or DIP Package
    • 1000 VDC Isolation
    • Optional 3000 VDC Isolation
    • Small Package Sizes
    • 40 °C to +85 °C Operation
    • 3 Year Warranty

    Inquiry Info. PDF

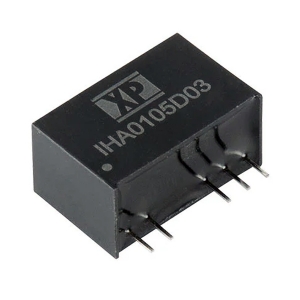

  • IHA01

    Features

    • Unregulated single & dual outputs
    • ±10% input range
    • Single outputs 3.3 to 15VDC
    • Dual outputs ±3.3 to ±15VDC
    • SIP7 package
    • High 6.0kVDC isolation
    • 250VAC working voltage
    • Bipolar outputs for MOSFET and IGBT drives
    • -40°C to +85°C operating temperature
    • Full load to +85°C
    • 3 year warranty
    IHA01 Series, 1 Watt SIP7 plastic package, 5V, 9V, 12V, 15V or 24V DC ±10% Input, Single and dual unregulated DC output versions from 3.3V to 15V. High 6.0kVDC isolation.

    Inquiry Info. PDF

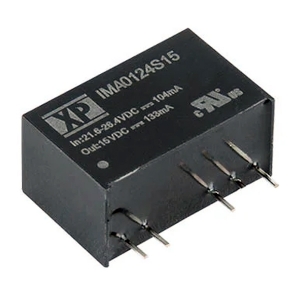

  • IMA01

    Features

    • World Wide Medical Approvals
    • Single and Dual Outputs
    • SIP7 Package
    • -40 °C to +75 °C Operation
    • Full Load at 75 °C Ambient
    • Designed to meet 1 x MOPP at 300 VAC
    • 2 A Patient Leakage Current
    • MTBF 2.5 MHrs
    • 3 Year Warranty
    IMA01 Series, 1 Watt SIP7 plastic package, 5V,12V,15V or 24V DC ±10% Input, Single and dual unregulated DC output versions from 3.3V to 15V. 4kVAC isolation

    Inquiry Info. PDF

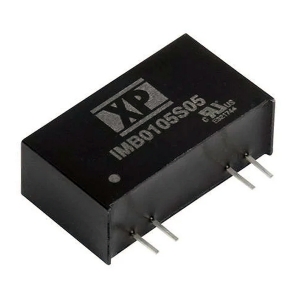

  • IMB01

    Features

    • Single unregulated output
    • ±10% input range
    • SIP7 package
    • World wide medical approvals
    • 4kVAC isolation reinforced
    • 2 x MOPP at 300VAC
    • 2μA patient leakage current
    • -40°C to +105°C operation
    • Full load at +85°C ambient
    • MTBF 4.3MHrs
    • 3 year warranty
    IMB01 Series, 1 Watt SIP7 plastic package, 5V,12V or 24V DC ±10% Input, Single unregulated 5V, 12V or 15V DC output versions. 4kVAC isolation

    Inquiry Info. PDF

  • IQ Series

    Features

    • Single & Dual Output
    • SIP Package
    • 1000 VDC Isolation
    • Optional 3000 VDC Isolation
    • 40 °C to +85 °C Operation
    • Semi regulated
    • 3 Year Warranty

    Inquiry Info. PDF

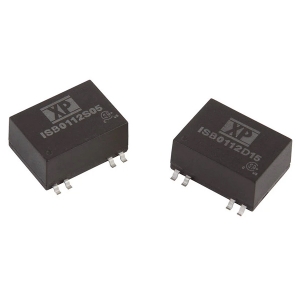

  • ISB01

    Features

    • Regulated Single & Dual Output
    • 2:1 Input Range
    • Compact SMD Package
    • 1500 VDC Isolation
    • Operating Temperature -40 °C to +95 °C
    • Remote On/Off
    • Tape & Reel Package Available
    • Optional Water Washable Versions
    • 3 Year Warranty
    ISB01 Series, 1 Watt SMD14 plastic package, 2:1 5V, 12V, 24V or 48V DC Input, Single & dual regulated 5V to 15V DC output versions. 1.5kVDC isolation. Remote On/Off

    Inquiry Info. PDF

  • ITA

    Features

    • Semi-regulated dual outputs
    • ±10% input range
    • Dual outputs ±3.3 to ±15VDC
    • SIP7 package
    • 1.5kVDC isolation
    • Class B conducted & radiated emissions
    • -40°C to +105°C operation
    • Full load to 95°C ambient
    • 3 year warranty
    ITA Series, 1W SIP7 plastic package, 5V, 12V or 24V DC ±10% Input, Dual semi regulated 5V, 12V or 15V DC output versions. 1.5kVDC isolation.

    Inquiry Info. PDF

Total of 121 results
