• DC-DC Converters PCB mounting

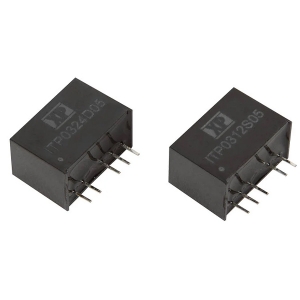

  • ITP03

    Features

    • Regulated single & dual outputs
    • 4:1 input range
    • Input ranges 4.5 to 18, 9 to 36, 18 to 75VDC
    • Single outputs 3.3 to 15VDC
    • Dual outputs ±3.3 to ±15VDC
    • SIP6 package
    • 1.6kVDC isolation
    • Complies with EN55032 (with minimal external components)
    • Short-circuit protection
    • Remote On/Of(single output versions only)
    • -40°C to +75°C operating temperature
    • Full power to +70°C
    • 3 year warranty
    ITP03 Series 3 Watts, SIP6 plastic package, 4:1 5V, 24V or 48V DC Input, Single and dual regulated output versions from 3.3V to 15V DC. 1.6kVDC isolation. Remote On/Off

    Inquiry Info. PDF

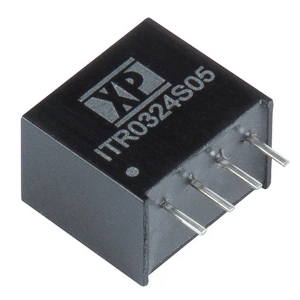

  • ITR03

    Features

    • Unregulated single outputs from 5.0 to 15VDC
    • ±10% input range
    • SIP4 package
    • 3kVDC functional isolation
    • High efficiency up to 91%
    • Complies with EN55032 class B
    • -40°C to +100°C operating temperature
    • Full power to +85°C
    • 3 year warranty
    ITR03 Series 3 Watts, SIP4 plastic package, 5V, 12V or 24V DC ±10% Input, Single unregulated output versions of 5V, 9V, 12V or 15V DC. 3kVDC isolation.

    Inquiry Info. PDF

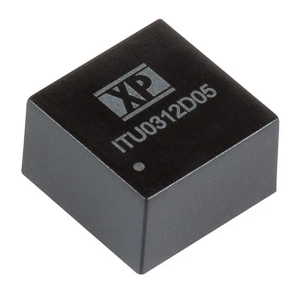

  • ITU03

    Features

    • Regulated single & dual outputs from 3.3 to 30VDC
    • Wide 4:1 input range
    • Input ranges 4.5 to 18, 9 to 36, 18 to 75VDC
    • DIP8 package
    • 1.6kVDC isolation
    • Efficiency to 84%
    • Complies with EN55032 class A
    • Short-circuit protection
    • Remote On/Off
    • -40°C to +80°C operating temperature
    • Full power to +70°C
    • 3 year warranty
    ITU03 Series 3 Watts, DIP 8 plastic package, 4:1 5V, 24V or 48V DC Input, Single and dual regulated output versions from 3.3V to 15V DC. 1.6kVDC isolation. Remote On/Off

    Inquiry Info. PDF

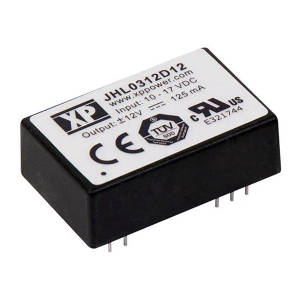

  • JHL03

    Features

    • International Medical Approvals
    • 4000 VAC Reinforced Insulation
    • Meets IEC60601-1, 3rd Edition
    • 2 MOPP Isolation at 250 VAC
    • 2 μA Patient Leakage Current
    • DIP24 Package
    • EN55011 Level A With No External Components
    • 3 Year Warranty
    JHL03 Series 3 Watts, DIP24 plastic package, 10-17V or 20-30V DC Input, Single and dual regulated output versions from 5V to 15V DC. 4kVAC isolation.

    Inquiry Info. PDF

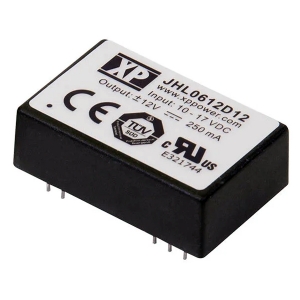

  • JHL06

    Features

    • International Medical Approvals
    • 4000 VAC Reinforced Insulation
    • Meets IEC60601-1, 3rd Edition
    • 2 MOPP Isolation at 250 VAC
    • 2 μA Patient Leakage Current
    • DIP24 Package
    • EN55011 Level A With No External Components
    • 3 Year Warranty
    JHL06 Series 5 Watts, DIP24 plastic package, 10-17V or 20-30V DC Input, Single and dual regulated output versions from 5V to 15V DC. 4kVAC isolation

    Inquiry Info. PDF

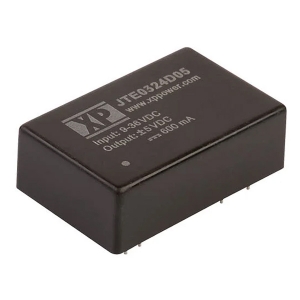

  • JTE03

    Features

    • Regulated single & dual outputs
    • 4:1 input range
    • Single outputs 3.3 to 24VDC
    • Dual outputs ±3.3 to ±24VDC
    • DIP24 package
    • 1.5kVDC isolation, 3.0kVDC option
    • -40°C to +100°C operating temperature
    • Full power to +85°C
    • 3 year warranty
    JTE03 Series 3 Watts, DIP24 plastic package, 4:1 24V or 48V DC Input, Single and dual regulated output versions from 3.3V to 24V DC. 1.5kVDC isolation, 3kVDC optional

    Inquiry Info. PDF

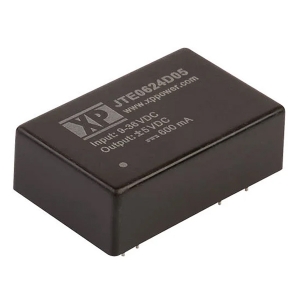

  • JTE06

    Features

    • Regulated single & dual outputs
    • 4:1 input range
    • Single outputs 3.3 to 24VDC
    • Dual outputs ±3.3 to ±24VDC
    • DIP24 package, metal case option
    • 1.5kVDC isolation, 3.0kVDC option
    • No minimum load
    • -40°C to +100°C operating temperature
    • Full power to +60°C
    • 3 year warranty
    JTE06 Series 6 Watts, DIP24 plastic package, 4:1 24V or 48V DC Input, Single and dual regulated output versions from 3.3V to 24V DC. 1.5kVDC isolation, 3kVDC optional

    Inquiry Info. PDF

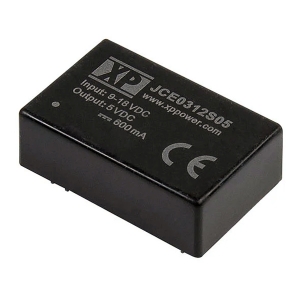

  • JCE03 Series

    Features

    • 2:1 Input Range
    • DIP24 Plastic Case
    • Operating Temperature -40 °C to +100 °C
    • Single & Dual Outputs
    • 1500 VDC Isolation, 3000 VDC Option
    • Fully Regulated Output
    • No Minimum Load Required
    • 3 Year Warranty

    Inquiry Info. PDF

  • JCE06 Series

    Features

    • 2:1 Input Range
    • DIP-24 Plastic Case
    • Operating Temperature -40 °C to +100 °C
    • Single & Dual Outputs
    • Optional Metal Case
    • 1500 VDC Isolation, 3000 VDC Option
    • 3 Year Warranty

    Inquiry Info. PDF

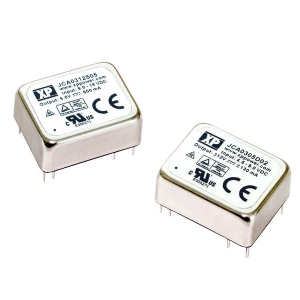

  • JCA03

    Features

    • Regulated single & dual outputs
    • 2:1 input range
    • Single outputs 3.3 to 15VDC
    • Dual outputs ±5.0 to ±15VDC
    • 25.4 x 20.3mm (1.0” x 0.8”) metal case
    • Industry standard pinout
    • 1.5kVDC isolation
    • -40°C to +100°C operating temperature
    • Full power to +75°C
    • 3 year warranty
    JCE03 Series 3 Watts, DIP24 plastic package, 2:1,12V, 24V or 48V DC Input, Single and dual regulated output versions from 3.3V to 24V DC. 1.5kVDC isolation, 3kVDC optional

    Inquiry Info. PDF

Total of 121 results
