• DC-DC Converters PCB mounting

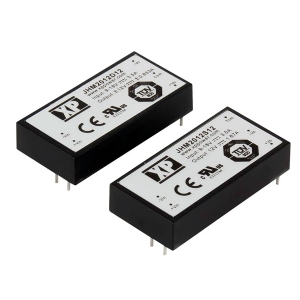

  • JHM20

    Features

    • Regulated single & dual outputs from 5 to 30VDC
    • Single outputs trimmable ±10%
    • 2:1 Input range
    • 2” x 1” footprint PCB mount
    • International medical approvals
    • 4kVAC reinforced isolation
    • 2 x MOPP @ 250VAC working voltage
    • 2.5µA Patient leakage current
    • Medical approval, IEC60601-1, 3rd Edition including risk management
    • EN55011 Class A with no external components
    • -40°C to +80°C operating temperature
    • Full power to +60°C
    • 3 year warranty
    JHM20 Series 20 Watts, 50.8 x 25.4 plastic package, 2:1, 12V, 24V or 48V DC Input, Single and dual regulated output versions from 5V to 15V DC. Outputs ±10% trim adjustable. 4.0kVAC reinforced isolation.

    Inquiry Info. PDF

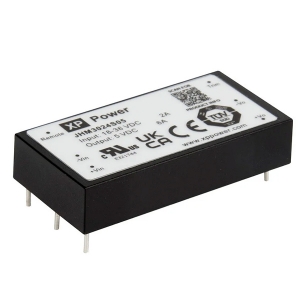

  • JHM30

    Features

    • Regulated single & dual outputs from 5 to 15VDC
    • 2:1 input range
    • Compact 50.8 x 25.4mm (2” x 1”) PCB mount package
    • 10% trim on single output versions
    • IEC60601-1 medical safety agency approvals
    • 4kVAC reinforced isolation
    • 2 x MOPP at 250VAC
    • 2μA patient leakage current
    • EN55011 class A with no external components
    • Short circuit, overload & overvoltage protection
    • -40°C to +80°C operating temperature
    • 3 year warranty
    JHM30 Series 30 Watts, 50.8 x 25.4 plastic package, 2:1, 12V, 24V or 48V DC Input, Single and dual regulated output versions from 5V to 15V DC. Outputs ±10% trim adjustable. 4.0kVAC reinforced isolation.

    Inquiry Info. PDF

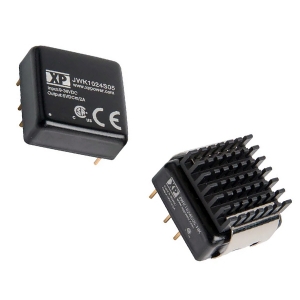

  • JWK10

    Features

    • Regulated single & dual outputs
    • 4:1 input range
    • Single outputs 3.3 to 24VDC
    • Dual outputs ±5.0, ±12 & ±15VDC
    • 25.4 x 25.4mm (1” x 1”) PCB mount package
    • Optional heatsink
    • 1.5kVDC isolation
    • Remote On/Off
    • -40°C to +100°C operating temperature
    • Full power to +60°C
    • 3 year warranty
    JWK10 Series 10 Watts, 25.4 x 25.4 metal package, 4:1 24V or 48V DC Input, Single and dual regulated output versions from 3.3V to 24V DC. 1.5kVDC isolation, Remote On/Off

    Inquiry Info. PDF

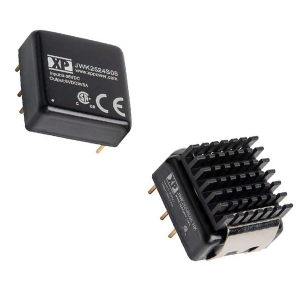

  • JWK25

    Features

    • Regulated Single & Dual Output
    • Wide 4:1 Input Range
    • 1” x 1” Package
    • 1500 VDC Isolation
    • Operating Temperature -40 °C to +105 °C
    • ITE Safety Approvals
    • Remote On/Off
    • High Power Density
    • Optional Heatsink
    • Six-sided Metal Case
    • 3 Year Warranty
    JWK25 Series 25 Watts, 25.4 x 25.4 metal package, 4:1 24V or 48V DC Input, Single and dual regulated output versions from 3.3V to 15V DC. 1.5kVDC isolation, Remote On/Off

    Inquiry Info. PDF

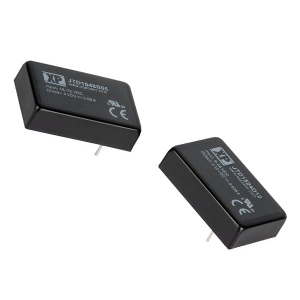

  • JTD15

    Features

    • Regulated single outputs 3.3 to 15VDC
    • Regulated dual outputs ±5, ±12 & ±15VDC
    • 4:1 input range
    • Output trim ±10% for single output models
    • 40.6 x 25.4mm (1.6” x 1”) footprint, 10.4mm (0.41”) profile
    • 3.0kVDC isolation
    • Remote On/Off
    • -40°C to +100°C operating temperature
    • Full power to +70°C
    • 3 year warranty
    JTD15 Series 15 Watts, 40.64 x 25.4 metal package, 4:1 24V or 48V DC input, Single and dual regulated output versions from 3.3V to 15V DC. 3kVDC isolation, Single outputs ±10% trim adjustable, Remote On/Off

    Inquiry Info. PDF

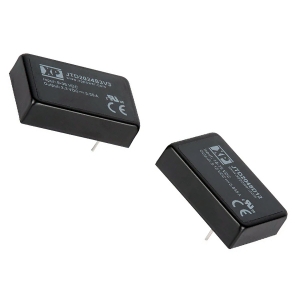

  • JTD20

    Features

    • Regulated single outputs 3.3 to 15VDC
    • Regulated dual outputs ±5, ±12 & ±15VDC
    • 4:1 input range
    • Output trim ±10% for single output models
    • 40.6 x 25.4mm (1.6” x 1”) footprint, 10.4mm (0.41”) profile
    • 3.0kVDC isolation
    • Remote On/Off
    • -40°C to +100°C operating temperature
    • Full power to +65°C
    • 3 year warranty
    JTD20 Series 20 Watts, 40.64 x 25.4 metal package, 4:1 24V or 48V DC input, Single and dual regulated output versions from 3.3V to 15V DC. 3kVDC isolation, Single outputs ±10% trim adjustable, Remote On/Off

    Inquiry Info. PDF

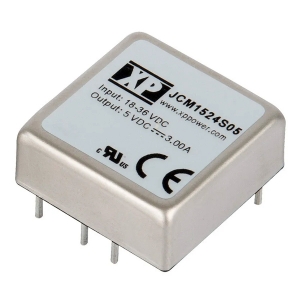

  • JCM15

    Features

    • Regulated single outputs from 3.3 to 15VDC
    • Regulated dual outputs ±5, ±12 & ±15VDC
    • Input ranges 9 to 18, 18 to 36, 36 to 75VDC
    • 25.4 x 25.4mm (1“ x 1“) package, 10.4mm profile
    • 1.6kVDC isolation
    • Remote On/Off
    • -40°C to +105°C operating temperature
    • Full power to +65°C
    • 3 year warranty
    JCM15 Series 15 Watts, 25.4 x 25.4 metal package, 2:1, 12V, 24V or 48V DC Input, Single and dual regulated output versions from 3.3V to 15V DC, 1.6kVDC isolation, Single outputs ±10% trim adjustable, Remote On/Off

    Inquiry Info. PDF

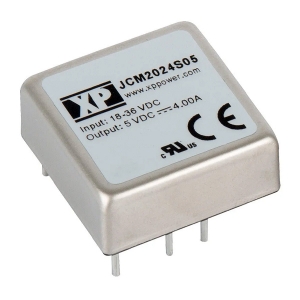

  • JCM20

    Features

    • Regulated single outputs from 3.3 to 15VDC
    • Regulated dual outputs ±12 & ±15VDC
    • Input ranges 9 to 18, 16 to 36, 36 to 75VDC
    • 25.4 x 25.4mm (1” x 1”) package, 10.4mm profile
    • 1.6kVDC isolation
    • Remote On/Off
    • -40°C to +105°C operating temperature
    • Full power to +65°C
    • 3 year warranty
    JCM20 Series 20 Watts, 25.4 x 25.4 metal package, 2:1, 12V, 24V or 48V DC Input, Single and dual regulated output versions from 3.3V to 15V DC, 1.6kVDC isolation, Single outputs ±10% trim adjustable, Remote On/Off

    Inquiry Info. PDF

  • JCM30 Series

    Features

    • Single and Dual Outputs
    • 2:1 Input Range
    • 1” x 1” Footprint
    • -40 °C to +100 °C Operation
    • Full Load at 55 °C Ambient
    • 1600 VDC Isolation
    • Output Trim ±10%
    • Remote On/Off
    • MTBF 370 kHrs
    • 3 Year Warranty

    Inquiry Info. PDF

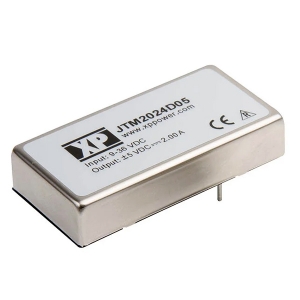

  • JTM20

    Features

    • Wide 4:1 Input Range
    • Single & Dual Outputs
    • -40 °C to +105 °C Operating Temperature
    • Overvoltage & Overcurrent Protection
    • Remote On/Off
    • 1600 VDC Isolation
    • 3 Year Warranty
    JTM20 Series 20 Watts, 50.8 x 25.4 metal package, 4:1 24V or 48V DC Input, Single and dual regulated output versions from 3.3V to 15V DC, 1.6kVDC isolation, Single outputs ±10% trim adjustable, Remote On/Off

    Inquiry Info. PDF

Total of 121 results
